Brand: Whirlpool
Model: KSM150PSTD0

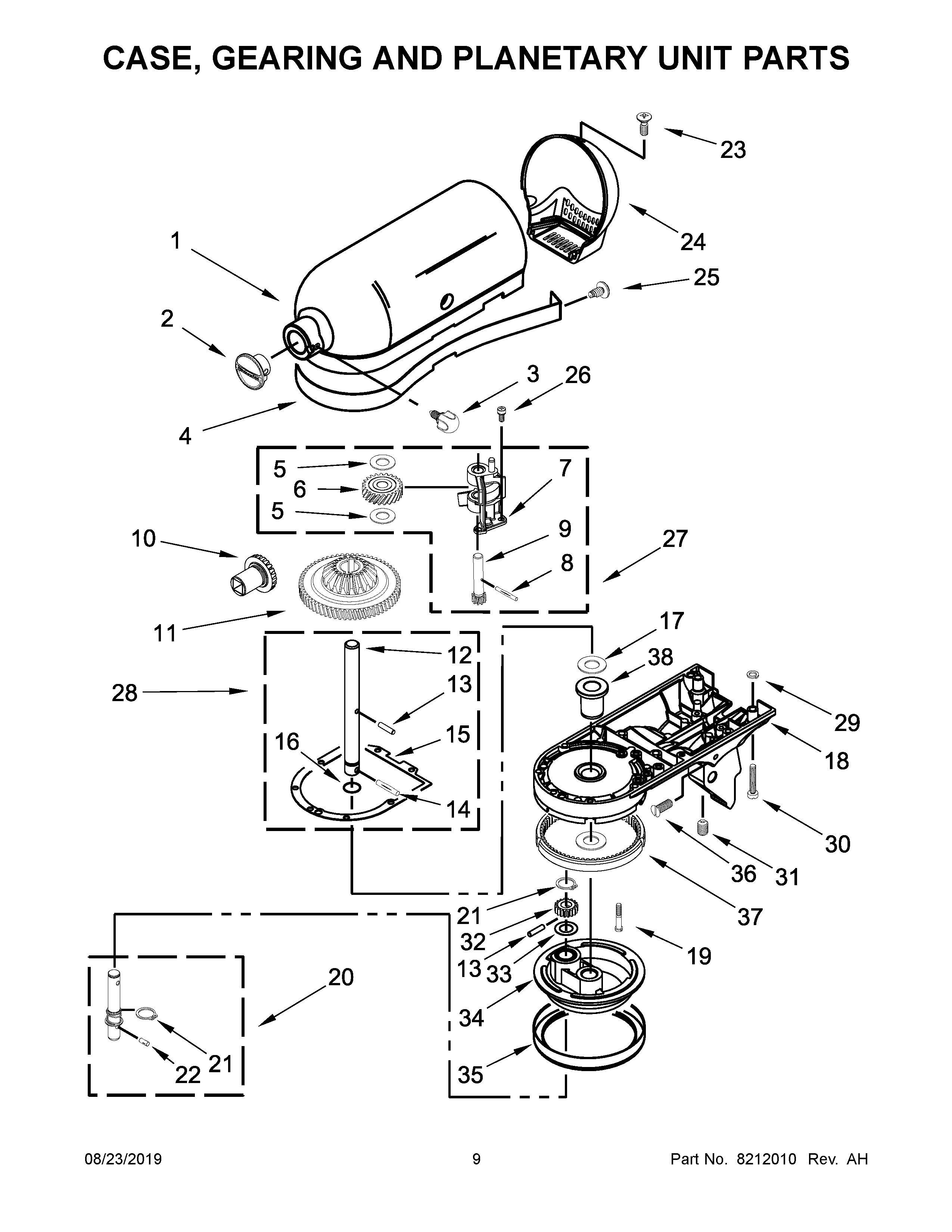

04 - CASE, GEARING AND PLANETARY UNIT PARTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | N/P | GEARCASE MOTOR HOUSING (REFER TO COLOR VARIATION PARTS PAGE) | $0.00 | |||
| 2 | 242765-2 | CAP,HUB | W11048596 | $7.36 | ||
| 2A | 242765-4 | CAP-HUB | W11047429 | $25.37 | ||
| 2B | 242765-5 | CAP-HUB | $25.10 | |||
| 3 | 9709194 | SCREW | WP9709194 | $15.21 | ||
| 3A | 240374-2 | SCREW | WP9709196 | $6.51 | ||
| 3B | 240374-3 | SCREW | WP9709194 | $15.21 | ||
| 4 | N/P | BAND, TRIM (REFER TO COLOR VARIATION PARTS PAGE) | $0.00 | |||
| 5 | W10323373 | WASHER | WPW10323373 | $3.41 | ||
| 6 | W10112253 | GEAR | WPW10112253 | $9.95 | ||
| 7 | 240308 | GEAR,WORM BRKT & BRG | W11082541 | $10.42 | ||
| 8 | 9705444 | PIN,GROOVE | WP9705444 | $3.57 | ||
| 9 | 240210-2 | GEAR-WORM | WP240210-2 | $8.20 | ||
| 10 | 9705130 | GEAR-HUB | W11192794 | $27.54 | ||
| 11 | 9709627 | GEAR-HUB | W11192794 | $27.54 | ||
| 12 | 240026 | SHAFT-CNTR | WP240026 | $6.38 | ||
| 13 | 240018-1 | PIN-DOWEL | WP9707223 | $3.41 | ||
| 14 | 9705443 | PIN, KNURLED (PLANETARY) | WP9705443 | $3.57 | ||
| 15 | 4162324 | GASKET | WP4162324 | $11.71 | ||
| 16 | 67500-55 | O-RING | WP67500-55 | $3.41 | ||
| 17 | W10323378 | WASHER | WPW10323378 | $7.13 | ||
| 18 | N/P | LOWER GEAR CASE (REFER TO COLOR VARIATION PARTS PAGE) | $0.00 | |||
| 19 | 9708651 | SCREW | W11170598 | $3.20 | ||
| 20 | 243368 | SHAFT,AGITATOR | WP243368 | $12.24 | ||
| 21 | 9703438 | RING-RETAINER | WP9703438 | $3.20 | ||
| 22 | 9704677 | PIN, GROOVE | WP9704677, W11664709 | $0.00 | ||
| 23 | 241877 | SCREW | WP241877 | $3.20 | ||
| 24 | N/P | COVER, END (REFER TO COLOR VARIATION PARTS PAGE) | $0.00 | |||
| 25 | 311932 | SCREW | WP313808 | $5.34 | ||
| 26 | 3400022 | SCREW | W11097298 | $3.20 | ||
| 27 | 240309-2 | GEAR-WORM | WP240309-2 | $26.64 | ||
| 28 | 4160474 | SHAFT-CNTR | $20.68 | |||
| 29 | 8533914 | LOCKWASHER | WP8533914 | $3.41 | ||
| 30 | 9708652 | SCREW | W11173547 | $3.20 | ||
| 31 | 3400203 | SCREW | WP3400203 | $3.57 | ||
| 32 | 9703903 | GEAR-PINON | W11133645 | $3.41 | ||
| 33 | 9706090 | WASHER | WP9706090 | $3.57 | ||
| 34 | N/P | PLANETARY (REFER TO COLOR VARIATION PARTS PAGE) | $0.00 | |||
| 35 | 240285 | DRIP RING | WP240285 | $6.31 | ||
| 36 | 89411 | SCREW | W11028216 | $3.57 | ||
| 37 | 9703904 | GEAR | W11340106 | $12.94 | ||
| 16 | 67500-55 | O-RING | WP67500-55 | $3.41 | ||
| 2 | W10753041 | CAP,HUB | W11048596 | $7.36 | ||
| 10 | W11175140 | GEAR-HUB | W11192794 | $27.54 | ||
| 11 | W11175138 | GEAR-HUB | W11192794 | $27.54 | ||
| 25 | 3400617 | SCREW | W10853069 | $3.20 | ||
| 31 | W11134949 | SCREW | WP3400203 | $3.57 | ||
| 32 | W10903540 | GEAR-PINON | W11133645 | $3.41 | ||
| 37 | W10903534 | GEAR | W11340106 | $12.94 | ||
| 38 | 16897 | BEARING,LOWER CENTER | WP16897 | $3.41 | ||
| 1 | NP | PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE) | $0.00 | |||
| 4 | NP | PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE) | $0.00 | |||
| 18 | NP | PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE) | $0.00 | |||
| 24 | NP | PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE) | $0.00 | |||
| 34 | NP | PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE) | $0.00 | |||
| 3A | 2403742 | THUMB SCREW (STORM GREY) | $0.00 | |||
| 13 | 2400181 | PIN, AGITATOR SHAFT | $0.00 | |||
| 2A | 2427654 | CAP, ATTACHMENT HUB (WHITE) | $0.00 | |||
| 16 | 6750055 | O" RING | $0.00 | |||
| 9 | 2402102 | GEAR, PINION AND SHAFT | $0.00 | |||
| 2B | 2427655 | CAP, ATTACHMENT HUB (ALMOND) | $0.00 | |||
| 3B | 2403743 | THUMB SCREW (BUFF) | $0.00 | |||
| 27 | 2403092 | WORM GEAR BRACKET AND GEAR ASSEMBLY | $0.00 |
*The price can change whitout warning
