Brand: Whirlpool

Model: WTW8500DW3 - LAUNDRY, WASHER

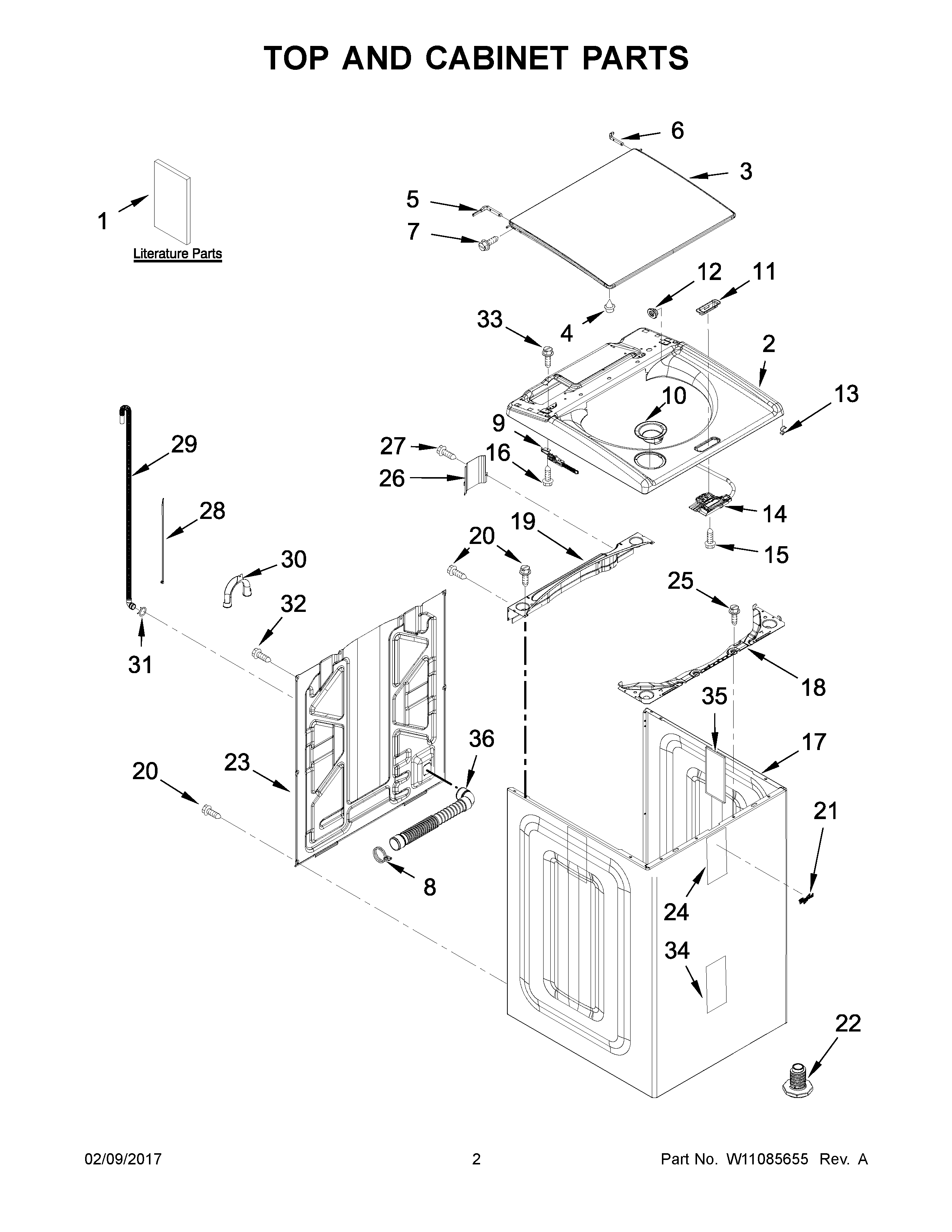

02 - TOP AND CABINET PARTS

WTW8500DW3
Plan number Part Number Description Replacement Price
1 W10682742 INSTALLATION INSTRUCTIONS   $0.00
1A W10607427 OWNERS MANUAL   $0.00
1B W10607408 TECH SHEET   $0.00
1C W10063047 ENERGY GUIDE   $0.00
1D W10740587 QUICK START GUIDE   $0.00
2 W10635913 TOP W11097645   $272.37
2A W10649674 TOP W10817363   $256.65
2B W10744647 TOP   $272.45
3 W10610172 LID ASSY W11102314   $287.28
3A W10594159 LID ASSY W11102314   $287.28
4 W10631074 BUMPER W11398707   $17.63
5 8563965 HINGE WIRE-LH-WHP-GLASS WP8563965   $24.47
6 8572974 HINGE WIRE-RH-WHP-GLASS WP8572974   $24.13
7 W10339706 SCREW W11404293   $11.19
8 W10142630 CLAMP WP285655   $5.88
9 W10594141 HINGE W10861714   $142.14
9A W10594142 HINGE W11023747   $94.53
10 W10601839 DISPENSER W11234069   $76.69
10A W10601859 DISPENSER W11234070   $76.69
11 W10630254 BEZEL W11237157   $23.34
11A W10665169 BEZEL W11237158   $23.34
12 W10708964 BEARING W11168238   $15.36
12A W10708966 BEARING W11579387   $13.52
13 90016 CLIP WP90016   $9.78
14 W10787878 LATCH W10810403   $137.60
14A W10787880 LATCH W10861642   $191.41
15 W10273971 SCREW WPW10273971   $6.32
16 693995 SCREW WP693995   $6.32
17 W10675024 CABINET W10677265   $365.52
17A W10677286 CABINET W10677266   $365.47
17B W10744644 CABINET W10744645   $327.19
18 W10724131 BRACE W11695477   $58.90
18A W10724132 BRACE W11661767   $58.10
18B W10752892 BRACE   $161.62
19 W10512626 BRACE W11712680   $72.10
20 1157158 SCREW WP489069   $6.32
21 W10387117 BADGE (WHITE) WPW10387117, W11178521   $0.00
21A W10393264 NAMEPLATE WPW10393264   $51.56
22 W10687506 FEET,LEVELING WPW10687506   $19.73
23 W10612644 PANEL-REAR W11417171   $181.24
24 W10414221 SOUND ABSORBER W11096159   $23.21
25 W10567155 SCREW W11568617   $11.19
26 W10676061 COVER   $29.29
27 90767 SCREW WP90767   $6.30
28 W10339879 TIE-WIRE WPW10339879   $6.32
29 W10221546 HOSE W11244231   $27.14
30 W10280024 RETAINER WPW10280024   $61.67
31 356138 CLAMP WP356138   $6.27
32 9740848 SCREW WP9740848   $5.09
33 311932 SCREW WP313808   $5.34
34 W10688364 ABSORBER W11197416   $19.08
35 8564458 ABSORBER WP8564458   $5.98
36 W10786890 HOSE W11246418   $39.31
*The price can change whitout warning
