Brand: Electrolux

Model: FFEF3054TWC - RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH

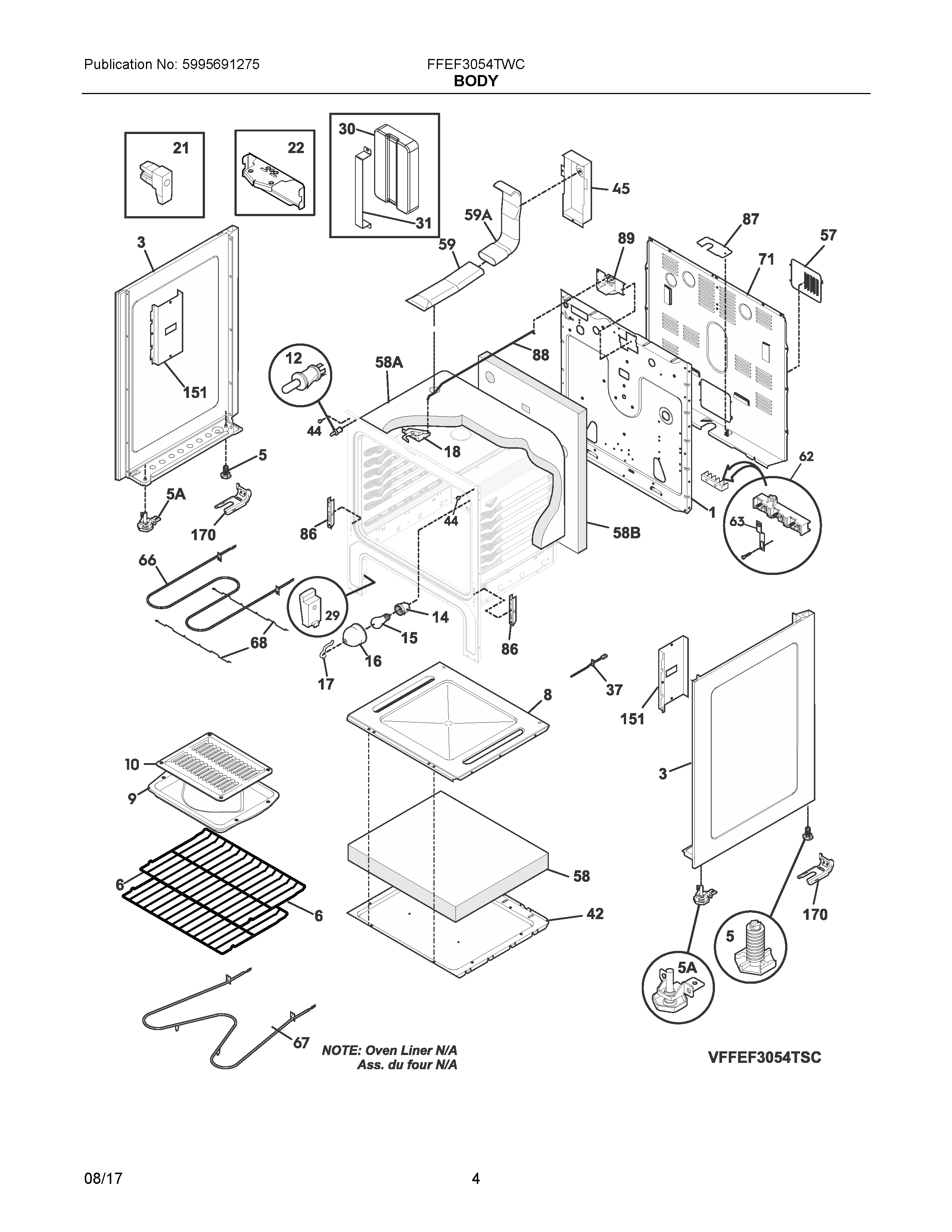

03 - BODY

FFEF3054TWC
Plan number Part Number Description Replacement Price
1 316401804 PANEL,MAIN BACK 316401806   $79.10
NI 316418901 SCREW,TRILOBE,10-32 X 5/16"   $14.50
3 316400116 PANEL,BODYSIDE,WHITE,RH 316400142   $132.80
3A 316400117 PANEL,BODYSIDE,WHITE,LH 316400143   $132.80
5 316272900 SCREW,LEVELING,PLASTIC,REAR   $13.80
5A 5304509869 LEVELING LEG ASSY,METAL,FRONT   $5.80
NI 316089501 SCREW,10-16   $9.45
6 316496201 OVEN RACK   $105.95
8 316400601 PANEL,OVEN BOTTOM   $122.65
NI 316506000 BRACKET,SOPPORT,OVEN BOTTOM   $4.35
NI 316282700 SCREW,W/WASHER   $10.15
NI 316260800 SCREW,SHOULDER,W/SHOULDER,#8-1   $13.80
10 316082000 BROILER PAN & INSERT KIT 5304494997   $76.20
12 316445501 SWITCH,OVEN LIGHT,DOOR FRAME 808136601   $40.65
14 316116400 SOCKET-LIGHT   $60.25
15 316538901 BULB-LAMP 316538904   $19.60
16 318406100 LENS, OVEN LIGHT, GLASS   $0.00
17 316087500 LIGHT RETAINER   $58.05
18 316405800 LATCH ASSEMBLY,OVEN DOOR   $61.70
21 316408000 TIE SIDE   $17.40
22 316286300 BRACKET-BODYSIDE,(2)   $18.15
NI 316279600 SCREW,BRACKET,STIFFENER   $12.35
29 807047102 GLIDE,DRAWER,FRONT   $11.60
30 5304511083 COUNTERWEIGHT,CONCRETE BLOCK   $29.75
31 5304511084 BRACKET,CONCRETE BLOCK   $14.50
37 316490000 PROBE,OVEN TEMP   $58.80
42 316400701 SHIELD,WOOL,LOWER   $155.30
44 316517600 SPACER,OVEN DOOR   $12.35
NI 5303285179 SCREW   $13.80
45 316234100 SHIELD,WIRE,VENT TUBE   $71.85
57 316283600 COVER,ACCESS   $11.60
58 316403803 INSULATION,OVEN BOTTOM   $45.00
58A 316406602 INSULATION,OVEN WRAPPER   $124.10
58B 316406500 INSULATION,OVEN BACK   $90.70
59 316208401 VENT TUBE   $185.80
NIA 316247300 CATALYST   $101.60
59A 316208304 TUBE,OVEN VENT,UPPER   $0.00
62 5303935271 TERMINAL BLOCK KIT   $70.40
NIA 316001003 SCREW,GROUNDING,10-24 X 1.835 316001017   $0.75
NIB 316205500 NUT,HEX FLANGE,3/8 10-32   $11.60
NIC 316542200 INSULATOR 316542203   $8.00
NI 5303289910 SCREW,8A,1",(7),POWER BOARD MT   $5.80
66 316203200 ELEMENT, BROIL 316199900, WG02F05219, ZZ316199900     Call to order
67 316075103 BAKE ELEMENT 240V 2600W   $32.65
68 316404000 SUPPORT,ELEMENT 316404002   $8.00
71 316283200 SHIELD,REAR WALL 316283204   $53.70
86 316441300 RECEPTACLE,HINGE   $22.50
NIA 316418900 VIS,SIMS LP,#8-32 X 5/16"   $14.50
87 316081200 BRACKET-CABLE MTG   $77.65
88 316203500 ROD,AUTO LATCH   $74.05
89 316464300 MOTOR-LATCH 5304528973   $54.45
151 316404601 SHIELD,BODYSIDE   $21.80
170 316112005 ANTI-TIP KIT ASSY   $15.25
NIA 316107200 ANTI-TIP KIT ASSY 316112005   $15.25
NIB 316116000 SCREW - ANTI TIP   $12.35
NIC 316541700 ANTI-TIP KIT ASSY 316112005   $15.25
NI 316580275 HARNESS,WIRING,MAIN   $177.80
NI 316021105 SCREW, HEX   $11.60
NI 316021109 SCREW   $14.50
NI 316089500 SCREW   $13.80
*The price can change whitout warning
