Brand: Electrolux

Model: FFFH17F2QWB - FREEZER, UPRIGHT

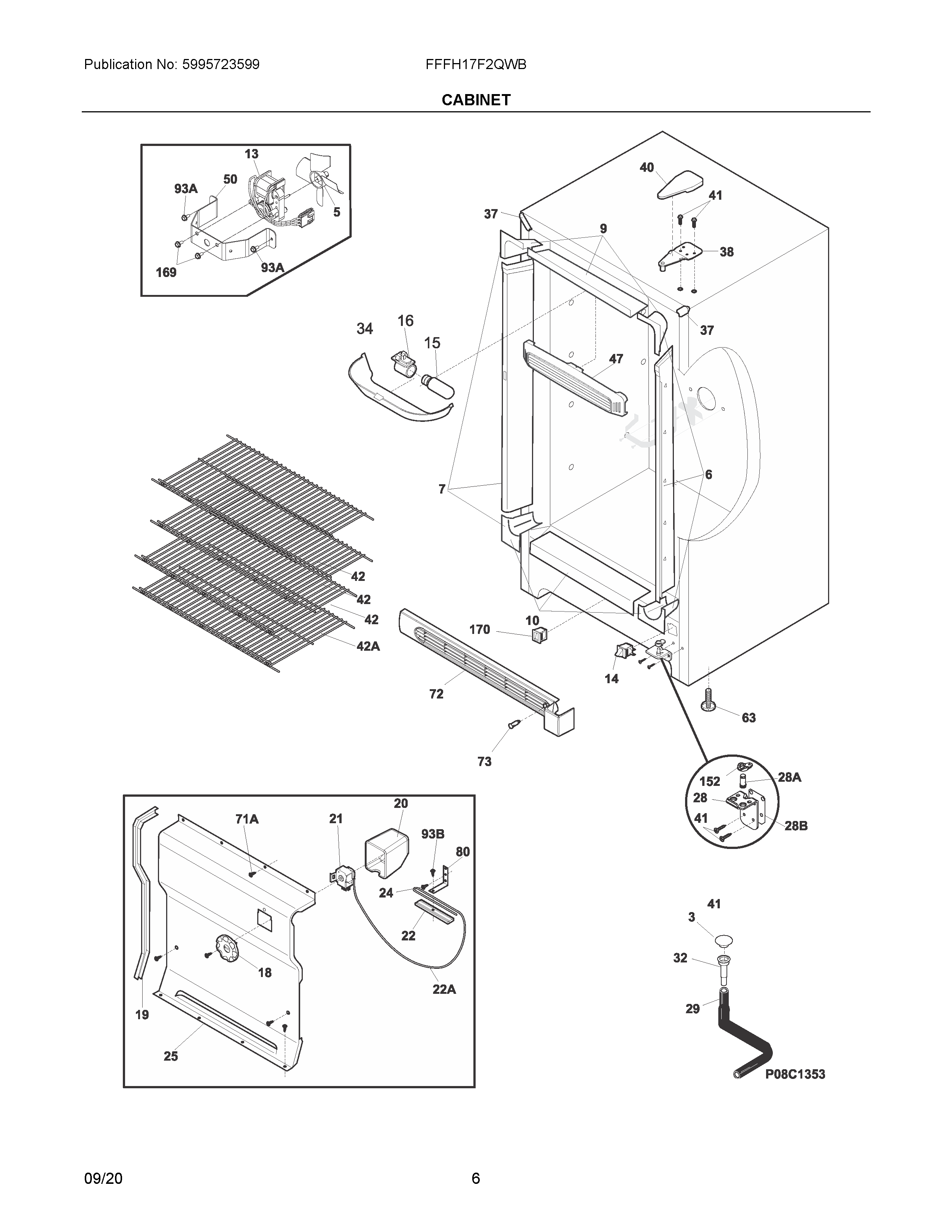

03 - CABINET

FFFH17F2QWB
Plan number Part Number Description Replacement Price
3 216503100 SCREEN DRAIN   $62.40
5 297437300 FAN BLADE 5304513294   $13.80
6 297435601 BREAKER   $45.70
7 297435600 BREAKER,W/LOCK   $39.90
9 297403901 BREAKER,TOP   $55.90
10 297403902 BREAKER,BOTTOM   $57.35
11 297334500 HEATER-DRAIN PAN   $74.05
11A 297177400 BRACKET, (2), DRAIN PAN   $0.00
12 242062801 MARK-PLATE,WHITE,NEW FREEZER   $19.65
13 297309000 FAN MOTOR EVAPORATOR 115V   $55.95
14 216822900 LAMP   $71.85
15 5304495326 LIGHT, LED 5304498578, 5304517886   $0.00
16 297139501 SOCKET LAMP   $19.60
18 216707200 KNOB-CONTROL   $44.25
19 216204902 GASKET-EVAP COVER   $0.00
20 216967201 COVER,TEMP CONTROL   $15.25
21 5304501379 CONTROLE-TEMP 5304513033   $76.95
22 216823500 CLAMP, CAP TUBE, COLD CONTROL   $0.00
22A 5303916855 TUBE,PLASTIC CLEAR,SENSOR SLEE   $62.40
24 5304460604 SCREW, TYPE A, 10-24 X 3/8   $0.00
25 297099250 COVER,EVAPORATOR   $105.95
26 297415900 RAMP,DOOR CLOSER   $12.35
28 297416301 HINGE,REVERSIBLE,BOTTOM RH   $15.25
NIA 5304511026 HINGE BEARING,REVERSIBLE   $10.15
28A 297438300 PIN,BOTTOM HINGE   $7.25
29 216313501 DRAIN HOSE 5304512272   $15.95
29A 5304510353 HOSE,DRAIN,17.8 INCH   $13.80
31A 297165802 PAN-DRAIN 297165804   $87.80
32 297382000 SLEEVE 5304511843   $13.80
34 297184400 SHIELD-LIGHT   $0.00
37 297273904 TRIM-CABINET CORNER,WHITE,(2)   $7.25
38 297283803 UPPER HINGE   $19.60
40 297164400 COVER-HINGE   $12.35
41 297236250 SCREW-HINGE 240578902   $14.50
42 297441905 SHELF WIRE,14.62 X 27.88 5304528979   $97.25
42A 297441901 SHELF,14.50 X 23.88,WIRE   $96.50
NI 216502400 GROMMET,SHELF   $16.70
47 297192903 BAFFLE,AIR   $25.40
49 216937700 TRIVET 216937701   $100.15
50 216394050 BRACKET,FAN MOTOR MOUNT   $21.80
63 216396900 SCREW, LEVELING FOOT, PLASTIC, ADJUSTABLE WG03F04389   $0.00
NIA 297164650 BRACKET,LH LEG LEVELOR   $18.15
NIB 297164651 BRACKET, RH LEG LEVELOR   $0.00
71A 297146820 SCREW, 8-18AB X.470 QX   $0.00
72 297387909 GRILLE/KICKPLATE 297387921   $62.40
73 5304495394 LIGHT INDICATOR,ROUND,GREEN   $28.30
80 6594601 BRACKET, CONTROL   $0.00
93 216858001 SCREW,8-18X.50 AB,#10   $10.90
NI 5303313703 CLIP   $8.55
93A 297174300 SCREW,#8,18X.63,SELF PIERCE   $12.35
93B 216036601 SCREW,RWHD,8-32A X 0.500,GX-CA   $13.05
NI 216337701 SCREW,HWH,10-24 X 0.500,SWAGE   $13.80
152 297416000 HINGE BEARING,REVERSIBLE 5304511026   $10.15
169 216912401 SCREW,HEX WASHER HEAD,8-32 X 0   $13.05
170 297280400 VALVE,BREATHER   $10.15
NI 5304503155 OWNER MANUAL   $5.10
NI 5304498525 SERVICE DATA SHEET   $3.65
NI 5304508300 ENERGY GUIDE   $0.00
NI 297001704 INSULATION,24",DRAIN TUBE   $20.35
NI 297410600 SCREW,8-18 X .500   $3.65
7 297435600 BREAKER,W/LOCK   $39.90
NIA 216954500 CATCH-LOCK WG03L05875   $0.00
80 06594601 BRACKET, CONTROL   $0.00
NI 09948773 INSULATION, DRAIN TUBE   $11.60
101 297162851 PLATE-HINGE,TAPPING   $8.70
130 297244700 SUPPORT,EVAPORATOR   $4.35
*The price can change whitout warning
