Brand: Maytag

Model: AER6603SFB1 - RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH

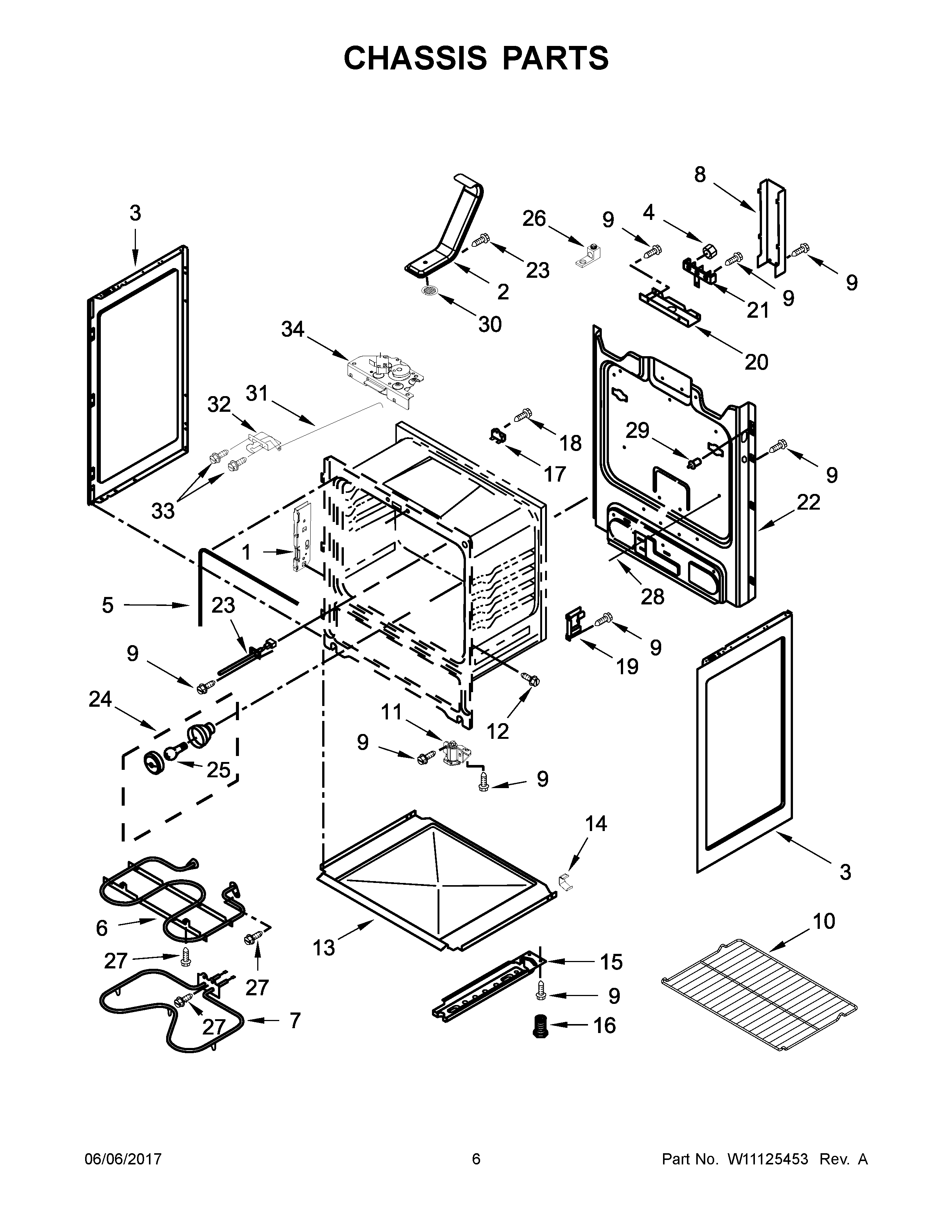

04 - CHASSIS PARTS

AER6603SFB1
Plan number Part Number Description Replacement Price
1 W10289077 HINGE-RECEIVER W10647259   $6.32
2 W10134285 TUBE, VENT WPW10134285   $0.00
3 W10162245 ASM-SIDE PNL,INSUL.,BLK SERV WPW10162245   $140.01
3A W10575396 PANEL-SIDE WPW10575396   $140.80
4 3400029 NUT WP3400029   $6.06
5 W10658354 SEAL, DOOR WPW10658354, W11542153     Call to order
6 9757340 ELEMENT-BROIL W10856603   $139.20
7 W10308477 ELEMENT, BAKE ZZW10308477, WPW10308477     Call to order
8 W10326122 COVER, TERMINAL BLOCK WPW10326122   $100.35
9 3196169 SCREW WP3196557   $6.31
10 W10268578 RACK, OVEN W11520287   $42.29
11 W10341186 FOOT-LEVEL WPW10341186   $25.57
12 W10067840 SCREW WPW10067840   $6.32
13 8054068 RETAINER WP8054068   $69.45
14 W10137382 CLIP   $37.20
15 W10390007 ASM BASE RAIL - CLIP,RIGHT WPW10306546   $102.17
15A W10390008 ASM BASE RAIL - CLIP,RIGHT WPW10306546   $102.17
16 W10058460 FOOT - LEVEL WPW10058460   $4.61
17 3196548 FUSE THERMAL WP3196548   $38.08
18 3196172 SCREW   $11.46
19 W10404688 BRACKET   $14.01
20 3186034 BRACKET, SERVICE W11728255   $0.00
21 W10245259 BLOCK TERMINAL WPW10245259   $28.87
22 W10289149 BACK, MAIN   $0.00
23 W10181986 SENSOR WPW10181986   $116.55
24 W10454648 SOCKET ASSY W11594027   $61.17
25 311255 BULB, OVEN LIGHT 8009, 40A15F, WG03F02051   $0.00
26 W10281322 CONNECTOR WPW10281322   $8.65
27 3196154 SCREW WP3196154   $0.00
28 W10627802 INTERRUPTEUR DE PORTE WP9757262   $122.85
29 9757239 ROD,DOOR   $73.85
30 9761301 SCREEN   $112.80
31 W10078380 ROD,LATCH   $70.35
32 9761013 DOOR-LATCH WP9761013   $198.07
33 3196560 SCREW W11169708   $12.72
34 W10107820 LATCH ASM,REAR (1 SW)HTI MTR WPW10107820   $239.18
NI W10333344 INSULATION W11684918   $25.90
NI W10774939 INSULATION W11161831   $81.13
NI 8272612 INSULATION WP8272612   $153.69
*The price can change whitout warning
