Brand: Whirlpool

Model: YWFC150M0EB1 - RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH

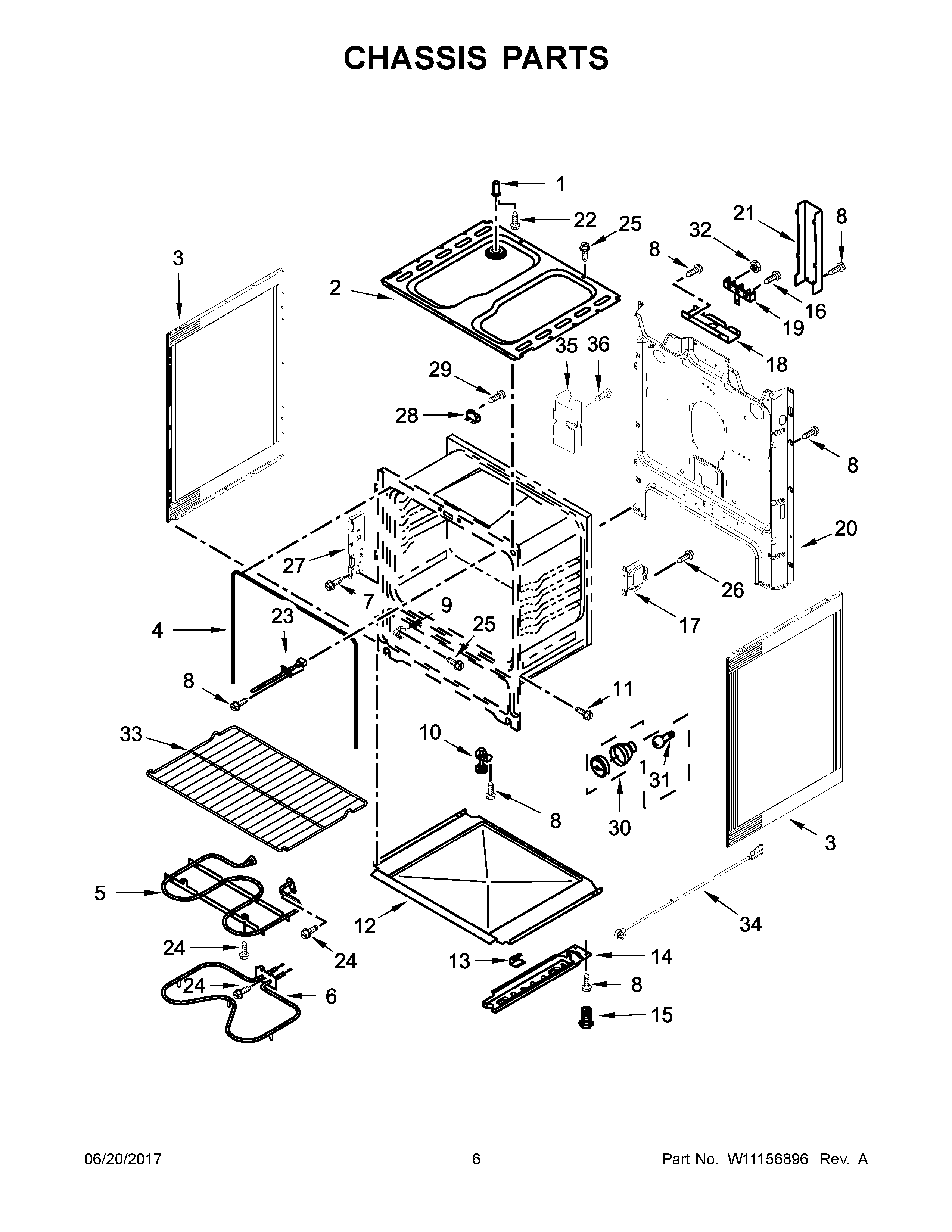

04 - CHASSIS PARTS

YWFC150M0EB1
Plan number Part Number Description Replacement Price
1 3169143 VENT TUBE 9755804   $98.60
2 W10209613 BOX, BURNER WPW10209613, W11699791   $0.00
3 W10162245 ASM-SIDE PNL,INSUL.,BLK SERV WPW10162245   $140.01
3A W10575396 PANEL-SIDE WPW10575396   $140.80
4 W10129032 SEAL, DOOR WPW10129032, W11542153   $0.00
5 9757340 ELEMENT-BROIL W10856603   $139.20
6 W10308477 ELEMENT, BAKE ZZW10308477, WPW10308477     Call to order
7 W10031780 SCREW W10777162   $6.89
8 3196178 SCREW W11233072   $12.16
9 W10674705 GLIDE,DRAWER W10807823   $16.44
10 W10341186 FOOT-LEVEL WPW10341186   $25.57
11 W10067840 SCREW WPW10067840   $6.32
12 8054068 RETAINER WP8054068   $69.45
13 W10137382 CLIP   $37.20
14 W10390007 ASM BASE RAIL - CLIP,RIGHT WPW10306546   $102.17
14A W10390008 ASM BASE RAIL - CLIP,RIGHT WPW10306546   $102.17
15 W10058460 FOOT - LEVEL WPW10058460   $4.61
16 3400016 SCREW WP3400016   $6.65
17 W10404688 BRACKET   $14.01
18 3186034 BRACKET, SERVICE W11728255   $0.00
19 W10245259 BLOCK TERMINAL WPW10245259   $28.87
20 W10289149 BACK, MAIN   $0.00
21 W10326122 COVER, TERMINAL BLOCK WPW10326122   $100.35
22 3196567 SCREW WP3196567   $5.09
23 W10181986 SENSOR WPW10181986   $116.55
24 3196174 SCREW WP3196174   $6.45
25 3400080 SCREW W11684512   $11.19
26 3196169 SCREW WP3196557   $6.31
27 W10289077 HINGE-RECEIVER W10647259   $6.32
28 3196548 FUSE THERMAL WP3196548   $38.08
29 3196172 SCREW   $11.46
30 W10454648 SOCKET ASSY W11594027   $61.17
31 311255 BULB, OVEN LIGHT 8009, 40A15F, WG03F02051   $0.00
32 7103P027-60 NUT 10-32 UNF .375 HEX WP7103P027-60   $5.87
33 W10268578 RACK, OVEN W11520287   $42.29
34 W10624591 CORD, POWER W11229685, W11226497   $0.00
35 W10910404 ANCHOR-TIP W11135752   $105.17
36 W11034869 SCREW-TORX W11135756   $12.16
NI 8273263 INSULATION-WRAPPER WPW10208653   $66.64
NI 8272611 INSULATION W11311894   $77.25
*The price can change whitout warning
