Brand: Whirlpool
Model: KV25G0XAQ6 - SMALL APPLIANCE, STAND MIXER, 5 QT

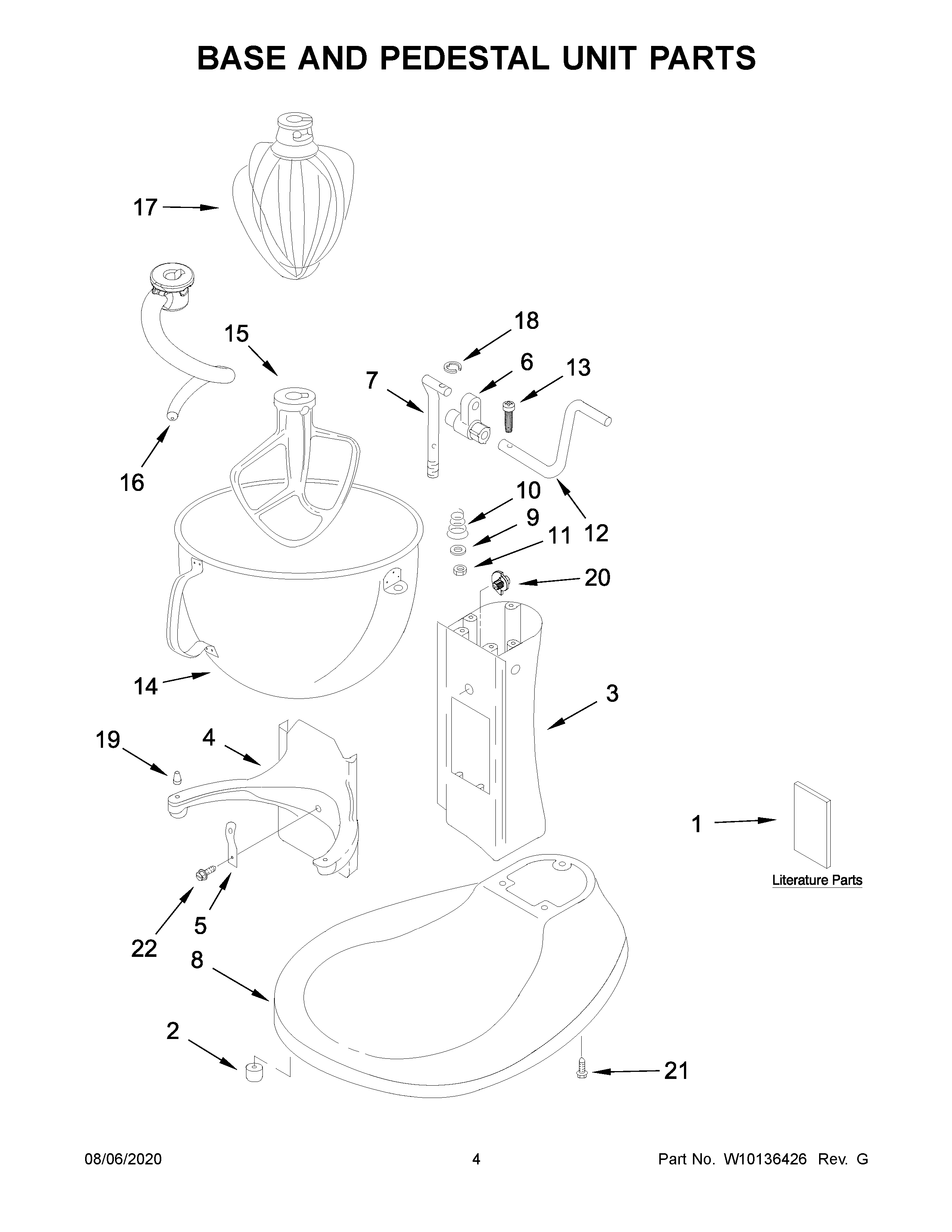

03 - BASE AND PEDESTAL UNIT PARTS
- 01 - COVER SHEET
- 02 - COLOR PARTS
- 03 - BASE AND PEDESTAL UNIT PARTS
- 04 - CASE, GEARING AND PLANETARY UNIT PARTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W10862776 | USE & CARE GUIDE | $0.00 | |||
| 2 | 9708649 | FOOT | WP9708649 | $3.41 | ||
| 3 | N/P | COLUMN ASSEMBLY (REFER TO COLOR VARIATION PARTS PAGE) | $0.00 | |||
| 4 | N/P | BOWL SUPPORT (REFER TO COLOR VARIATION PARTS PAGE) | $0.00 | |||
| 5 | W10504114 | CLIP | WPW10504114 | $3.57 | ||
| 6 | 9706885 | ARM-LIFT | WP9706885 | $3.41 | ||
| 7 | W10598835 | ROD-LIFT | W11376364 | $21.31 | ||
| 8 | N/P | BASE AND FOOT SUPPORTS (REFER TO COLOR VARIATION PARTS PAGE) | $0.00 | |||
| 9 | 9703439 | WASHER | W11708395 | $3.02 | ||
| 10 | 9237 | SPRING | 4159622 | $3.44 | ||
| 11 | 8533907 | NUT | $19.32 | |||
| 12 | W10598836 | HANDLE | W11376371 | $25.37 | ||
| 13 | 3400863 | SCREW | WP3400814 | $3.57 | ||
| 14 | W10717235 | BOWL-MIXER | WPW10717235 | $90.29 | ||
| 15 | W10672616 | BEATER-MIXER | WPW10672616 | $22.83 | ||
| 16 | W10674617 | HOOK-DOUGH | W10908278 | $30.09 | ||
| 17 | 9703491 | WHIP-WIRE | WP9703491 | $30.09 | ||
| 20 | 9703426 | CAM | $4.28 | |||
| 21 | 3400200 | SCREW | W10913677 | $3.41 | ||
| 22 | 3400018 | SCREW | W10861883 | $3.57 | ||
| 23 | 9703307 | RING-C | WP9703307 | $3.41 | ||
| 24 | 240185 | PANEL- OVE | WP240185 | $3.15 | ||
| 18 | 9703307 | RING-C | WP9703307 | $3.41 | ||
| 19 | 240185 | PANEL- OVE | WP240185 | $3.15 | ||
| 1 | W11378207 | USE & CARE GUIDE | $0.00 | |||
| 7 | W11376364 | ROD-LIFT | $21.31 | |||
| 12 | W11376371 | HANDLE | $25.37 |
*The price can change whitout warning
