Brand: Whirlpool

Model: WFG550S0HZ0 - RANGE/OVEN, GAS, FREESTANDING, 30 INCH

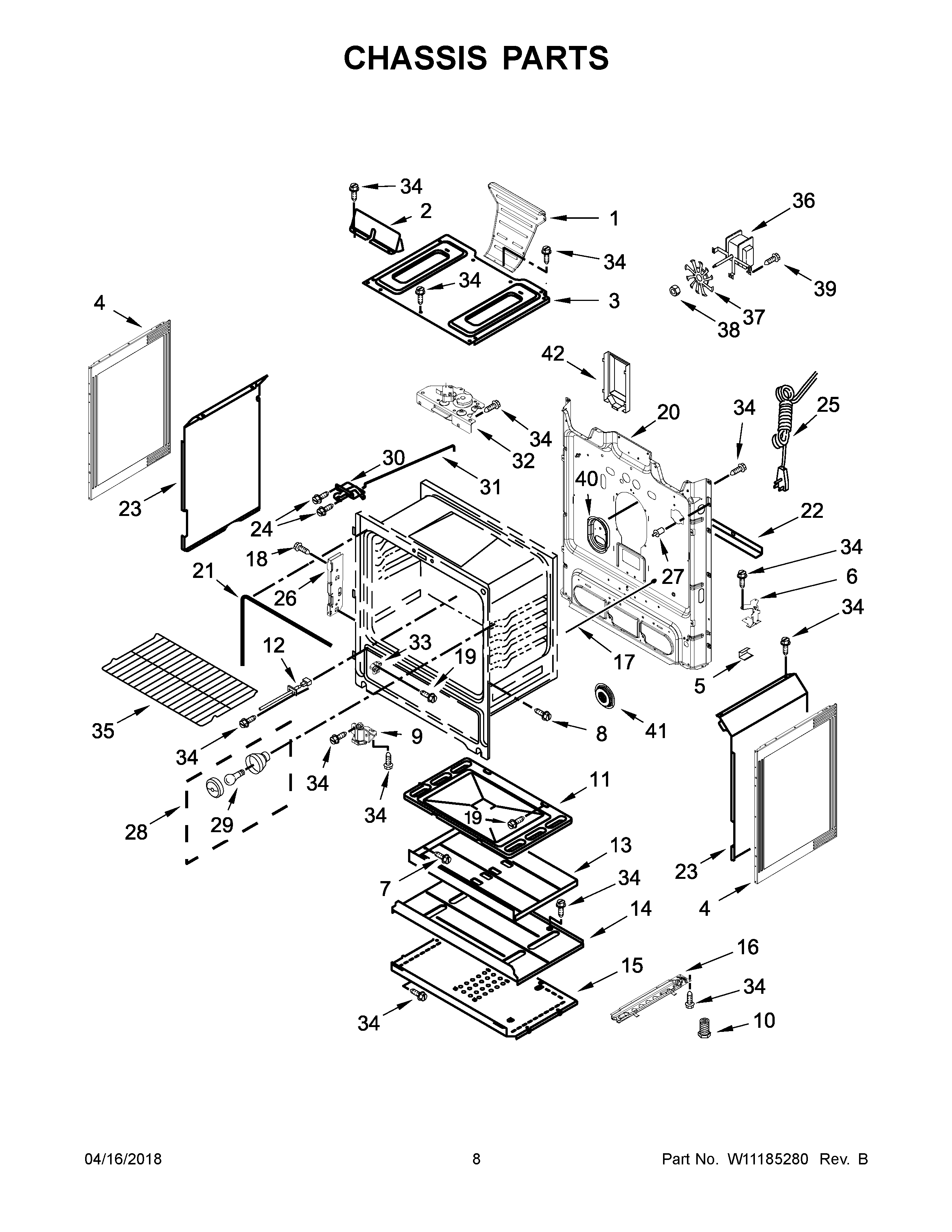

05 - CHASSIS PARTS

WFG550S0HZ0
Plan number Part Number Description Replacement Price
1 W10153186 FLUE-OVEN W11457094   $117.14
2 8272747 SHIELD-HT WP8272747   $0.00
3 8273036 BOX-BURNER W11379351   $47.21
4 W10162245 ASM-SIDE PNL,INSUL.,BLK SERV WPW10162245   $140.01
5 W10137382 CLIP   $37.20
6 8523249 BRKT-SUPRT   $60.59
7 W10362924 SCREW W11233072   $12.16
8 3196560 SCREW W11169708   $12.72
9 W10341186 FOOT-LEVEL WPW10341186   $25.57
10 W10058460 FOOT - LEVEL WPW10058460   $4.61
11 3195097 BOTTM-OVEN WP3195097   $172.45
12 W10586204 SENSOR W10833885   $174.55
13 8053967 BAFFLE-HT   $236.70
14 8053969 SHIELD-HT   $81.44
15 8053968 SHIELD-HT   $67.66
16 W10390008 ASM BASE RAIL - CLIP,RIGHT WPW10306546   $102.17
16A W10390007 ASM BASE RAIL - CLIP,RIGHT WPW10306546   $102.17
17 9757239 ROD,DOOR   $73.85
18 W10031780 SCREW W10777162   $6.89
19 3400080 SCREW W11684512   $11.19
20 W10416099 MAIN, BACK   $0.00
21 W10658354 SEAL, DOOR WPW10658354, W11542153     Call to order
22 W10435470 BRACE   $60.33
23 9761449 RETAINER   $253.81
23A 9761448 RETAINER   $253.81
24 3196560 SCREW W11169708   $12.72
25 W10624590 POWER CORD W11023766   $87.98
26 W10289077 HINGE-RECEIVER W10647259   $6.32
27 W10627802 INTERRUPTEUR DE PORTE WP9757262   $122.85
28 W10454648 SOCKET ASSY W11594027   $61.17
29 311255 BULB, OVEN LIGHT 8009, 40A15F, WG03F02051   $0.00
30 9761013 DOOR-LATCH WP9761013   $198.07
31 W10078370 ROD-LATCH   $70.63
32 W10107820 LATCH ASM,REAR (1 SW)HTI MTR WPW10107820   $239.18
33 W10674705 GLIDE,DRAWER W10807823   $16.44
34 3196178 SCREW W11233072   $12.16
35 W10268578 RACK, OVEN W11520287   $42.29
36 W10167915 FAN MOTOR, CONV W10794440, W11676354     Call to order
37 W10116351 FAN BLADE CONVECTION W10758272   $6.34
38 W10213748 NUT W11444600   $11.19
39 4449809 SCREW WP4449809   $6.32
40 W10134126 COVER   $19.22
41 W10134124 FAN COVER WPW10134124   $69.68
42 W10158780 COVER-REAR   $89.71
NI N/P FOLLOWING PARTS NOT ILLUSTRATED   $0.00
NI 8524099 INSULATION W11684915   $89.82
NI W10180437 INSULATION W11688737   $89.82
16A W10390007 ASM BASE RAIL - CLIP,RIGHT WPW10306546   $102.17
*The price can change whitout warning
