Brand: Whirlpool

Model: GARF30FDGB00 - REFRIGERATOR, ALL

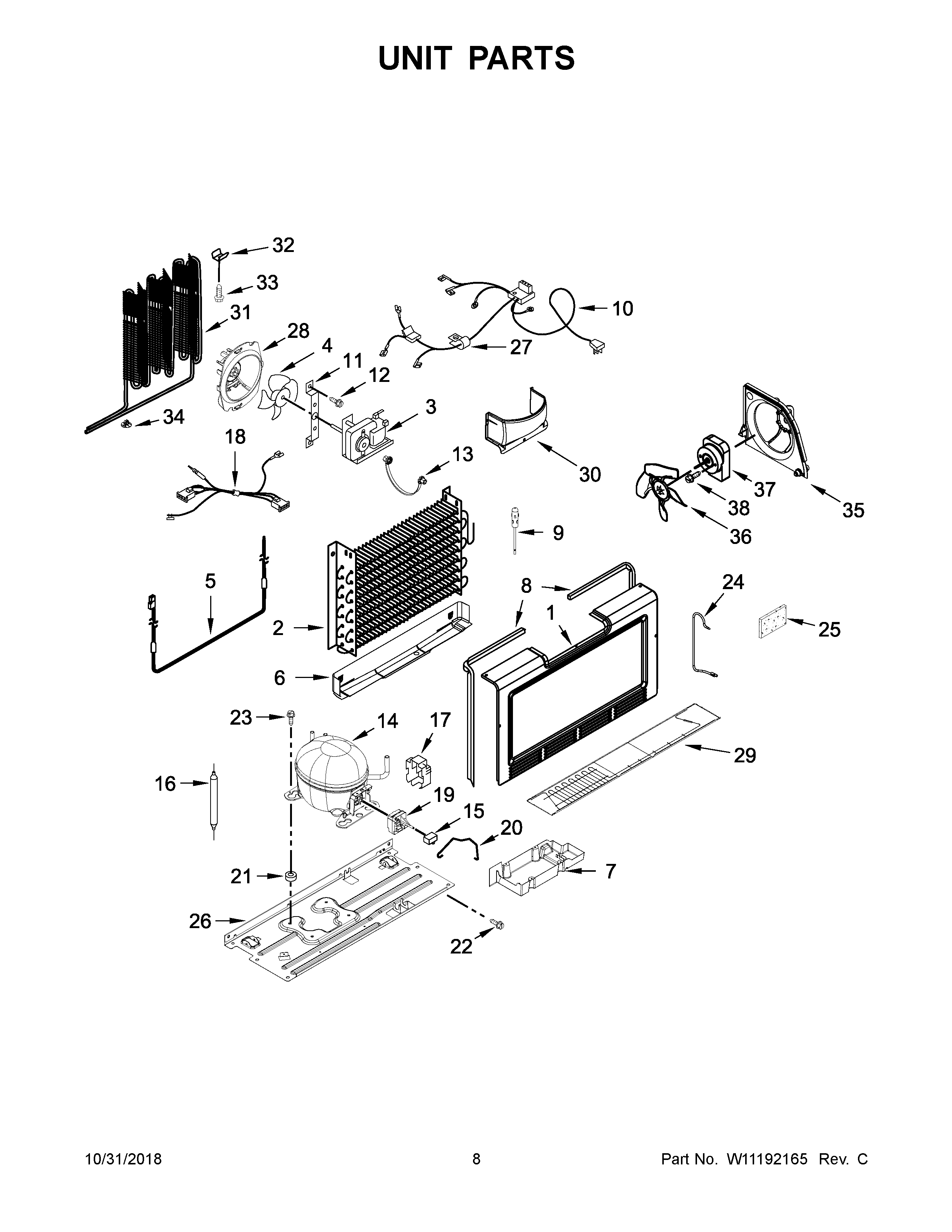

05 - UNIT PARTS

GARF30FDGB00
Plan number Part Number Description Replacement Price
1 W10574307 COVER-EVAP W11551256   $88.20
2 W10574283 EVAPORATOR W10858281, W11507067   $0.00
3 W10359880 MOTOR,EVAPORATOR WPW10359880   $69.38
4 2169142 BLADE-FAN WP2169142   $46.77
5 W10316428 HEATER WPW10316428   $199.28
6 W10314195 SHIELD WPW10314195   $78.29
7 W10574291 DRIP PAN   $85.25
8 W10574305 GASKET WPW10574368   $5.03
9 W10383615 THERMISTOR,EVAP WPW10383615   $57.42
10 W10622169 HARNESS,WIRE   $86.04
11 13058002 CLIP   $12.06
12 3-80732-014 SCREW W11233072   $12.16
13 W10150583 GROMMET W11690160   $5.88
14 W10591684 COMPRESSOR W11174634   $433.34
15 W10350564 CAPACITOR WPW10350564   $94.54
16 W10709968 UV DRIER-TUBE WPW10143759   $25.87
17 W10574450 COVER   $22.12
18 W10693200 HARNESS W11244436   $108.85
19 W10814820 START-DEV W10896198   $143.08
20 W10574470 RETAINER   $12.97
21 2183042 GROMMET W11661108   $11.48
22 W10142287 SCREW 3400524   $12.03
23 489473 SCREW W11661574   $11.19
24 W10861955 TUBE   $55.85
25 2319835 GROMMET W10852725   $6.80
26 W10574278 PAN-COMPRS   $100.80
27 549193 CLAMP   $11.21
28 W10574469 FAN-SCROLL   $26.29
29 N/P CONDENSER (NOT SERVICED)   $0.00
30 W10574478 TUBE   $92.65
NI N/P REFRIGERANT CHARGE 4.75 OZ. (R-134A)   $0.00
10 W11103758 HARNESS,WIRE   $108.85
14 W11034254 COMPRESSOR W11125124   $541.86
16 W10177049 UV DRIER-TUBE WPW10143759   $25.87
18 W11181209 HARNS-WIRE   $77.46
19 W10796752 START DEVICE W10873801   $128.87
25 2169104 INSULATION W11553819   $11.19
31 W10574289 CONDENSER W11507065   $199.26
32 W10248621 CLIP W10683556   $12.85
33 W10142294 SCREW W11544659   $11.19
34 W10815861 CLIP   $12.57
35 2315541 BRACKET ASSY-COND FAN WP2315541   $62.16
36 W10139483 FAN BLADE WPW10139483   $72.13
37 2188875 MOTOR-COND W11578915   $88.73
38 8533961 SCREW W11501418   $11.19
39 W10574581 COVER-EVAP   $124.24
NI N/P CORD, POWER   $0.00
22 W10142287 SCREW 3400524   $12.03
25 2169104 INSULATION W11553819   $11.19
30 W10574581 COVER-EVAP   $124.24
*The price can change whitout warning
