Brand: Whirlpool

Model: WEEA25H0HN0 - FREEZER, UPRIGHT

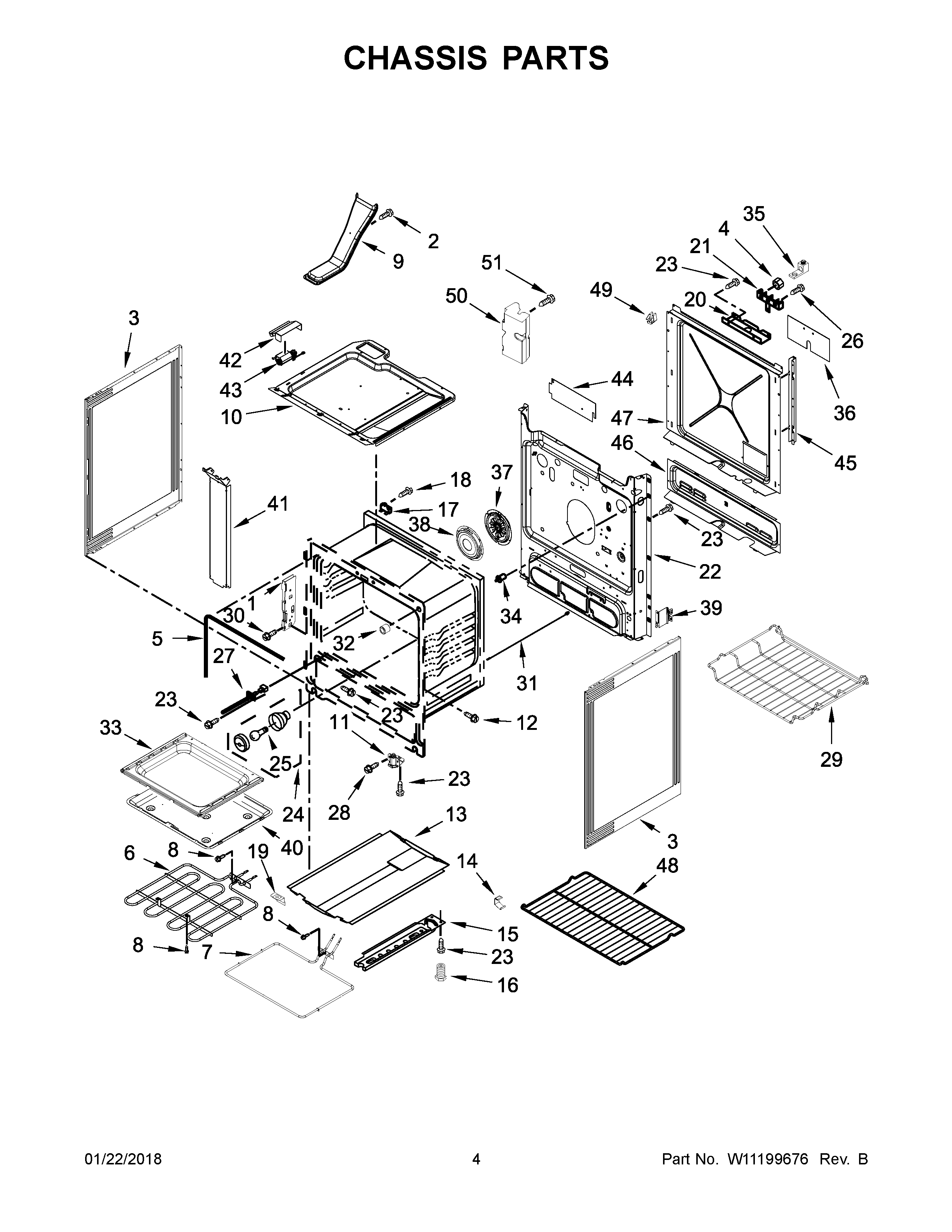

03 - CHASSIS PARTS

WEEA25H0HN0
Plan number Part Number Description Replacement Price
1 W10289077 HINGE-RECEIVER W10647259   $6.32
2 W10362924 SCREW W11233072   $12.16
3 W10162245 ASM-SIDE PNL,INSUL.,BLK SERV WPW10162245   $140.01
4 3400029 NUT WP3400029   $6.06
5 W10162385 GASKET, DOOR WPW10162385, W11562931   $0.00
6 W10544951 ELEMENT,BROIL W11321472   $115.96
7 W10774342 ELEMENT, BAKE W10779716, ZZW10779716     Call to order
8 W10362924 SCREW W11233072   $12.16
9 W10613792 TUBE,VENT W11122085   $82.87
10 W10289168 BOX-BURNER   $145.77
11 W10341186 FOOT-LEVEL WPW10341186   $25.57
12 W10067840 SCREW WPW10067840   $6.32
13 W10541959 HEAT SHIELD   $179.37
14 W10137382 CLIP   $37.20
15 W10390008 ASM BASE RAIL - CLIP,RIGHT WPW10306546   $102.17
15A W10390007 ASM BASE RAIL - CLIP,RIGHT WPW10306546   $102.17
16 W10058460 FOOT - LEVEL WPW10058460   $4.61
17 3196548 FUSE THERMAL WP3196548   $38.08
18 3196172 SCREW   $11.46
19 W10035900 BRKT-SUPRT   $10.78
20 3186034 BRACKET, SERVICE W11728255   $0.00
21 W10245259 BLOCK TERMINAL WPW10245259   $28.87
22 N/P BACK, MAIN (NOT SERVICED)   $0.00
23 3196178 SCREW W11233072   $12.16
24 W10454648 SOCKET ASSY W11594027   $61.17
25 311255 BULB, OVEN LIGHT 8009, 40A15F, WG03F02051   $0.00
26 3400016 SCREW WP3400016   $6.65
27 W10181986 SENSOR WPW10181986   $116.55
28 3196169 SCREW WP3196557   $6.31
29 W10289145 OVEN RACK WPW10289145   $100.31
30 W10031780 SCREW W10777162   $6.89
31 W10273192 DOOR SWITCH ROD   $65.87
32 9758701 SPACER W10877054   $41.38
33 W10774446 BOTTOM,OVEN W10777210   $153.93
34 W10627802 INTERRUPTEUR DE PORTE WP9757262   $122.85
35 W10281322 CONNECTOR WPW10281322   $8.65
36 W10655441 WIRE-INSULATED   $106.93
37 W10874477 FAN,CONVECTION W11441001   $152.89
38 W10346154 COVER, CONVECT BRAND WPW10346154   $50.43
39 W10273002 BRACKET   $58.48
40 W10346147 PAN - BAKE BURNER, ELEC W11379357   $58.53
41 W10162255 EXHAUST COVER   $19.17
42 W10162254 DUCT-AIR   $98.08
43 W10877642 FAN BLOWER W11107275   $153.19
44 W11117035 SHIELD   $65.00
45 W10162241 CHANNEL,REAR   $31.87
46 W10162248 COVER,WIRE   $106.93
47 W10849261 REAR COVER W11379355   $96.04
48 W10531060 OVEN RACK WPW10531060   $93.56
49 W10866583 CLIP   $20.72
50 W10914589 ANCHOR-TIP W11217187   $25.84
51 W11034869 SCREW-TORX W11135756   $12.16
NI N/P FOLLOWING PARTS NOT ILLUSTRATED   $0.00
NI W10289173 INSULATION W11688567   $89.82
NI W10575374 INSULATION W11688730   $55.38
NI 4820F015-59 STRAP   $7.94
NI W10162240 INSULATION W11688363   $89.82
NI 7111P017-60 CLIP W10841090   $5.78
9 W11122085 TUBE,VENT   $82.87
*The price can change whitout warning
