Brand: Whirlpool
Model: KRSC503EBS01 - REFRIGERATOR, SIDE-BY-SIDE

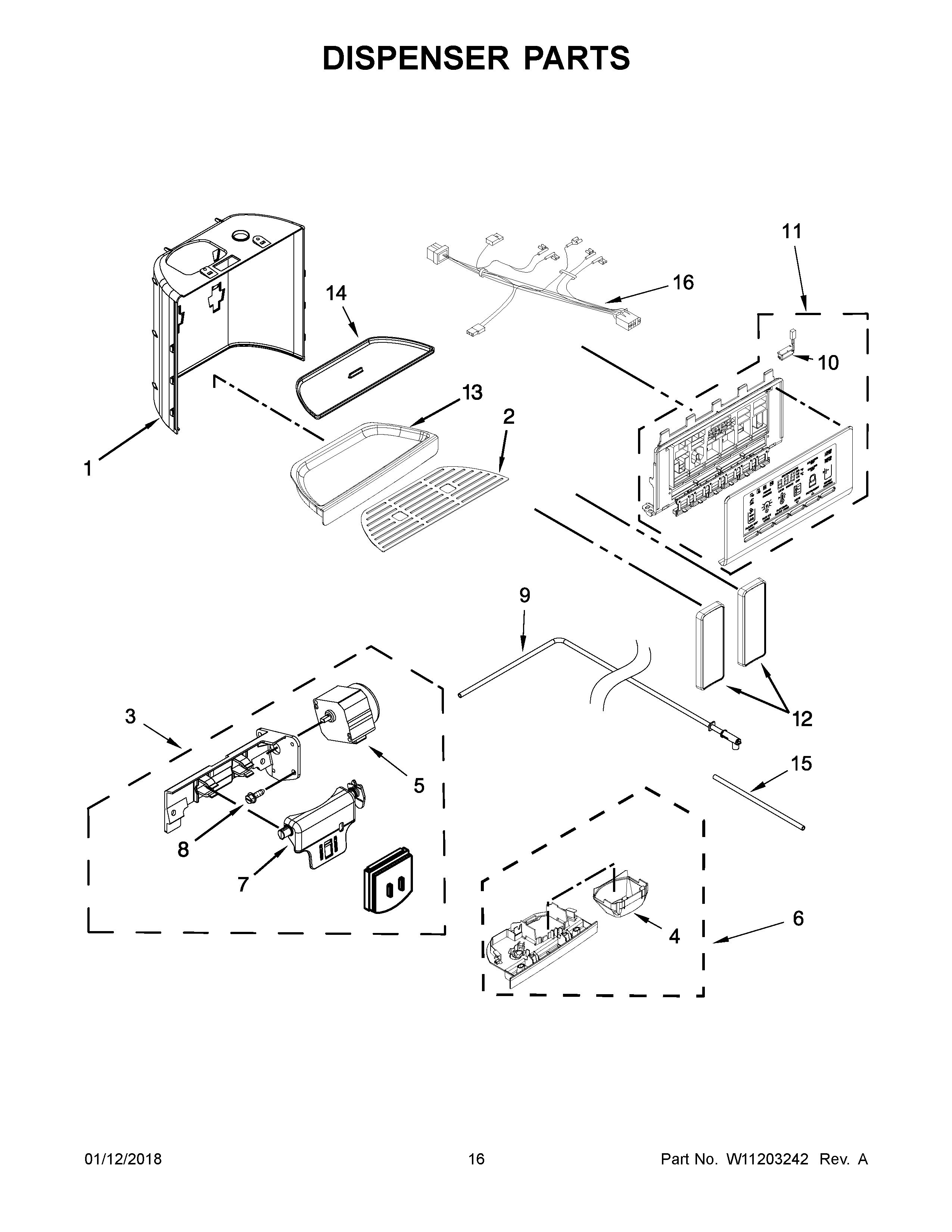

09 - DISPENSER PARTS
- 01 - COVER SHEET
- 01 - COVER SHEET
- 01 - COVER SHEET
- 01 - COVER SHEET
- 02 - CABINET PARTS
- 02 - FREEZER DRAWER, BASKETS
- 03 - FRESH FOOD DOOR
- 04 - CABINET
- 04 - CONTROLS/TOP PANEL
- 05 - FREEZER LINER PARTS
- 05 - SHELVES
- 06 - COOLING SYSTEM
- 07 - CONTROLS & ICE DISPENSER
- 08 - ICE CONTAINER
- 08 - ICE CONTAINER
- 09 - DISPENSER PARTS
- 09 - ICE MAKER
- 10 - AIR FLOW PARTS
- 10 - WIRING DIAGRAM
- 10 - WIRING DIAGRAM
- 11 - WIRING DIAGRAM
- 11 - WIRING DIAGRAM
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W10317259 | SEPARATOR | $100.98 | |||
| 1A | W10317255 | SEPARATOR | $91.49 | |||
| 2 | W10317270 | GRILLE | WPW10317270 | $0.00 | ||
| 3 | W10781990 | ICE DOOR | W11130210 | $124.05 | ||
| 4 | W10435760 | ICE GUIDE | WPW10435760 | $21.73 | ||
| 5 | W10205978 | MOTOR | WPW10205978 | $83.26 | ||
| 6 | W10353593 | SEPARATOR | $104.68 | |||
| 7 | W10346124 | SUPPORT | WPW10346124 | $30.61 | ||
| 8 | 4449745 | SCREW | WP4449745 | $6.64 | ||
| 9 | W10386774 | TUBE-WATER | W11669938 | $62.36 | ||
| 10 | W10238083 | LIGHT | W11290115 | $0.00 | ||
| 11 | W10855773 | CONTROL BOARD | W11130211 | $412.12 | ||
| 12 | W10317253 | ACTUATOR | W11561037 | $57.37 | ||
| 12A | W10346924 | PAD | WPW10346924 | $223.80 | ||
| 13 | W10317265 | TRAY-DRIP | $49.74 | |||
| 13A | W10317261 | TRAY-DRIP | WPW10317261 | $64.72 | ||
| 14 | W10317275 | TRAY-DRIP | $52.51 | |||
| 14A | W10317276 | TRAY-DRIP | W10859920 | $51.32 | ||
| 15 | W10691730 | TUBE-WATER | W11620106 | $86.41 | ||
| 16 | W10605343 | HARNS-WIRE | $94.08 |
*The price can change whitout warning
