Brand: Whirlpool
Model: WGE745C0FS01 - RANGE/OVEN, ELECTRIC, DOUBLE, 30 INCH

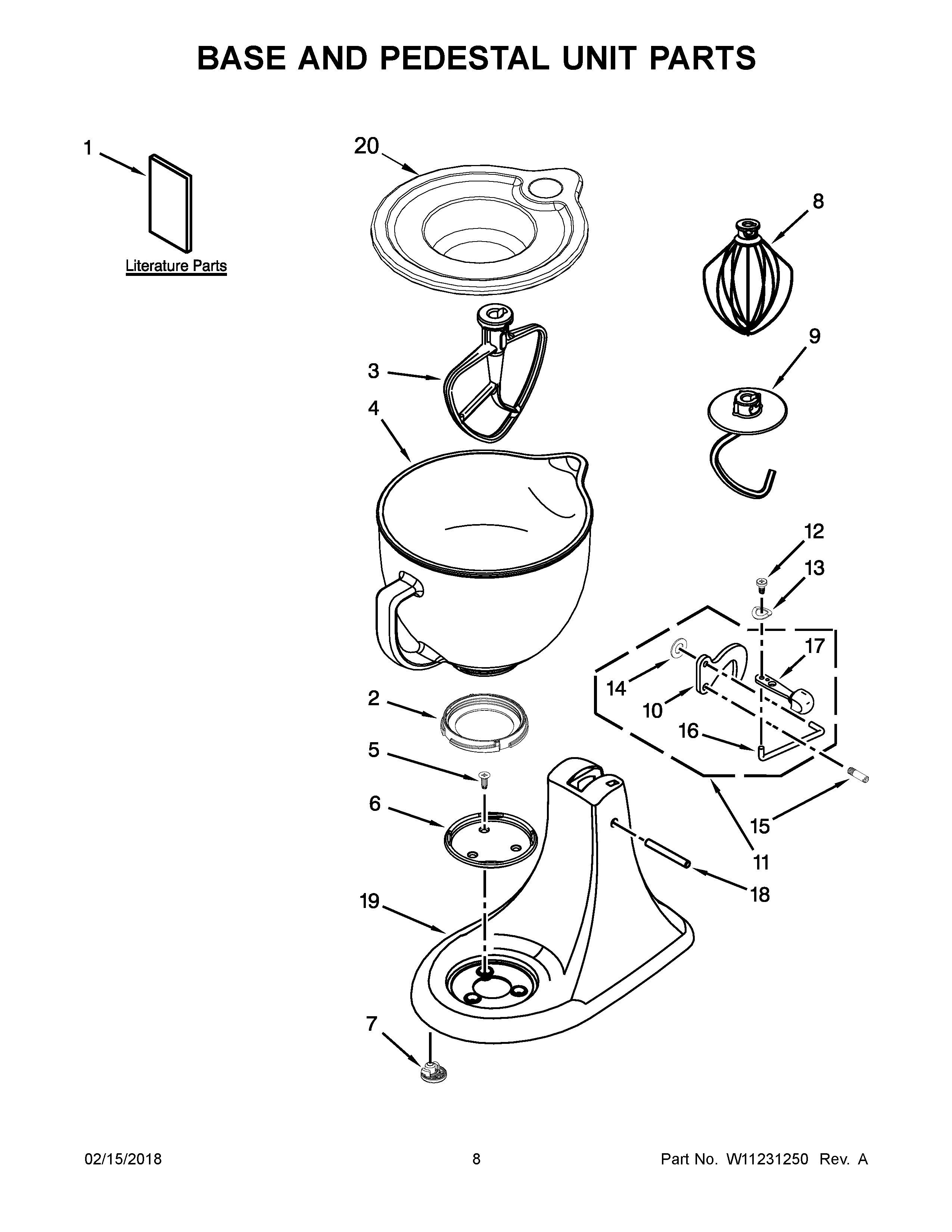

05 - BASE AND PEDESTAL UNIT PARTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| TRAY, SPILL | $0.00 | |||||
| 1 | W11118281 | USE & CARE GUIDE | $0.00 | |||
| 2 | W10220977 | RING | WPW10220977 | $8.14 | ||
| 3 | W10672617 | BEATER,MIXER | WPW10672617 | $22.84 | ||
| 4 | W10154769 | BOWL-MIXER | W11341654 | $69.36 | ||
| 5 | 3400020 | SCREW | W11544572 | $5.88 | ||
| 6 | W10191926 | CAP-SCREW | WPW10191926 | $12.78 | ||
| 7 | 9709707 | FOOT | WP9709707 | $3.41 | ||
| 8 | 9704329 | WHIP WIRE | WP9704329 | $30.46 | ||
| 9 | W10674618 | HOOK-DOUGH | WPW10674618 | $22.83 | ||
| 10 | 9709055 | LATCH | W11246352 | $6.39 | ||
| 11 | 24452 | LEVER,LATCH | WP24452 | $5.59 | ||
| 12 | 110679 | SCREW | WP110679 | $3.57 | ||
| 13 | 116241 | WASHER | WP116241 | $3.57 | ||
| 14 | 8533912 | WASHER | W11218705 | $3.20 | ||
| 15 | W10572158 | SCREW | W10802060 | $3.57 | ||
| 16 | 24450 | LINK-LATCH | W11232016 | $5.99 | ||
| 17 | 9709280 | ASSY-BLACK KNOB & LEVER HD LOK | WP9709280 | $3.57 | ||
| 18 | 16910 | PIN,HINGE | WP16910 | $3.41 | ||
| 19 | N/P | PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE) | $0.00 | |||
| 20 | W10223140 | COVER-BOWL | WPW10223140 | $17.33 | ||
| NI | N/P | FOLLOWING PARTS NOT ILLUSTRATED | $0.00 | |||
| NI | W10672622 | BEATER-MXR | W10917788 | $60.19 |
*The price can change whitout warning
