Brand: Whirlpool

Model: KRFC604FSS01 - REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT

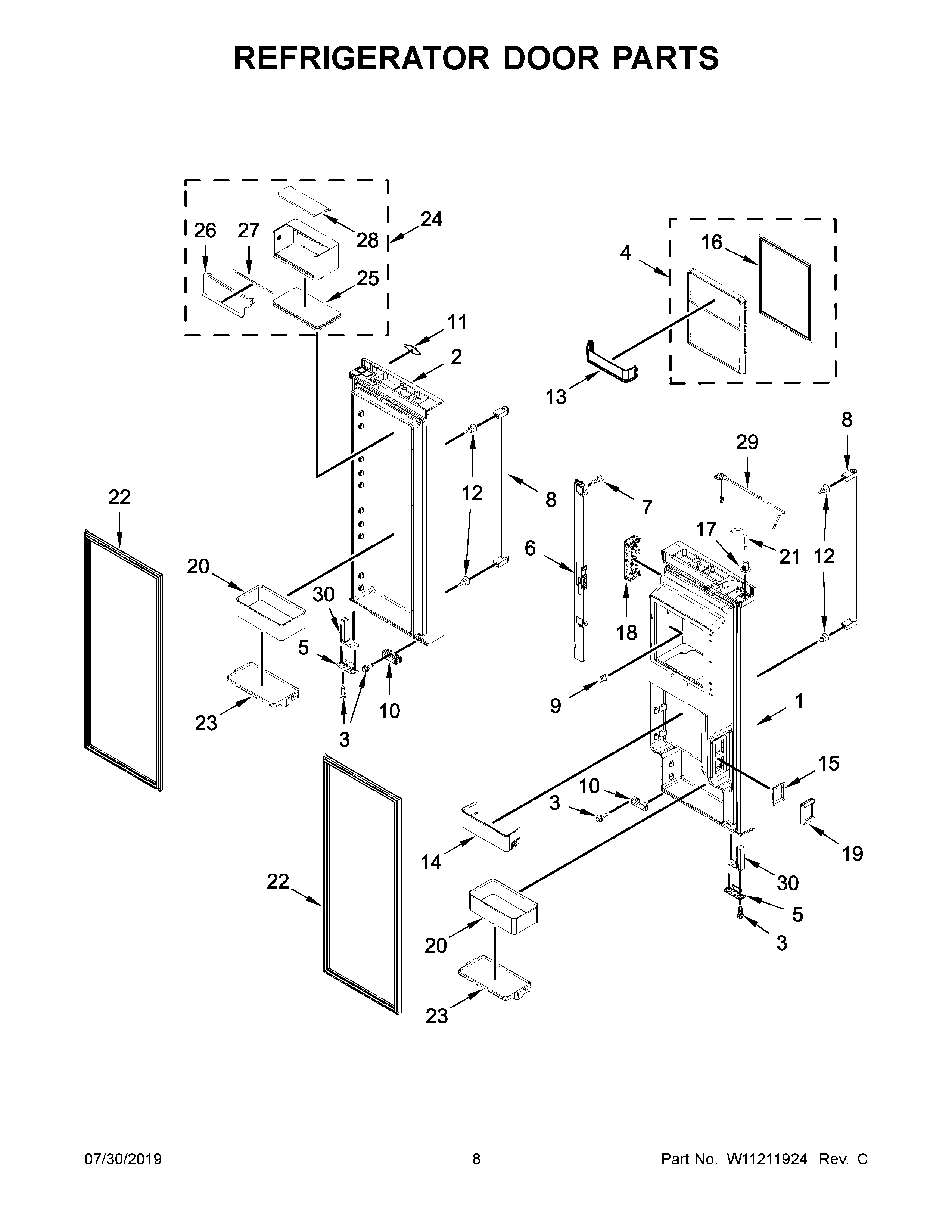

05 - REFRIGERATOR DOOR PARTS

KRFC604FSS01
Plan number Part Number Description Replacement Price
1 W11034290 DOR-FIP LW11034290   $765.67
2 W10798250 DOOR-FIP W10849508   $820.56
3 W10238319 SCREW WPW10238319   $6.62
4 W10830493 ASSEMBLY, ICE DOOR W10889595, W11594928   $0.00
5 W10763415 STOP-DOOR W11243377   $55.71
6 W11034034 RAIL-MULLN W11649966   $91.64
7 12990204 SCREW W11311945   $11.43
8 W10704121 HANDLE W11483532   $127.74
9 W10656772 SWITCH W11123943   $29.64
10 W10798308 BUMPER-DOR   $21.72
11 W10518672 NAMEPLATE W10839793   $53.13
12 W10460893 SCREW WPW10661886   $10.96
13 W10795606 TRIVET W10887799   $78.48
14 W10806697 BIN-CANTILEVER W10887800   $58.51
15 W10720065 RETAINER   $40.57
16 W10853439 GASKET W11625084   $48.48
17 W10245516 CLIP W10562834   $11.02
18 W11112889 CONTROL BOARD W11330486   $254.49
19 W10720073 GASKET   $41.54
20 W10776705 BIN-CANTILEVER W10887801   $85.16
21 W10883965 TUBE-WATER   $94.05
22 W10917313 GASKET,DOOR   $232.33
23 W10823512 TRIM W11203850   $99.46
24 W10795526 BIN-CANTILEVER W10887802   $124.70
25 W10795523 BASE   $104.86
26 W10803630 DOOR-COMP   $70.56
27 W10795525 GASKET   $34.17
28 W10795524 COVER   $131.39
29 W10917894 WATER TUBE W11366500   $86.95
30 W10720069 DUCT   $80.78
31 W10872968 CLOSER W11179355   $22.90
31A W10872969 CLOSER W11189598   $22.90
11 W10518672 NAMEPLATE W10839793   $53.13
1 W11034290 DOR-FIP LW11034290   $765.67
17 W11315302 CLIP   $9.14
18 W11227903 CONTROL BOARD W11330486   $254.49
30 W10872968 CLOSER W11179355   $22.90
30A W10872969 CLOSER W11189598   $22.90
*The price can change whitout warning
