Brand: Electrolux

Model: EI12BF25US - REFRIGERATOR, BOTTOM FREEZER

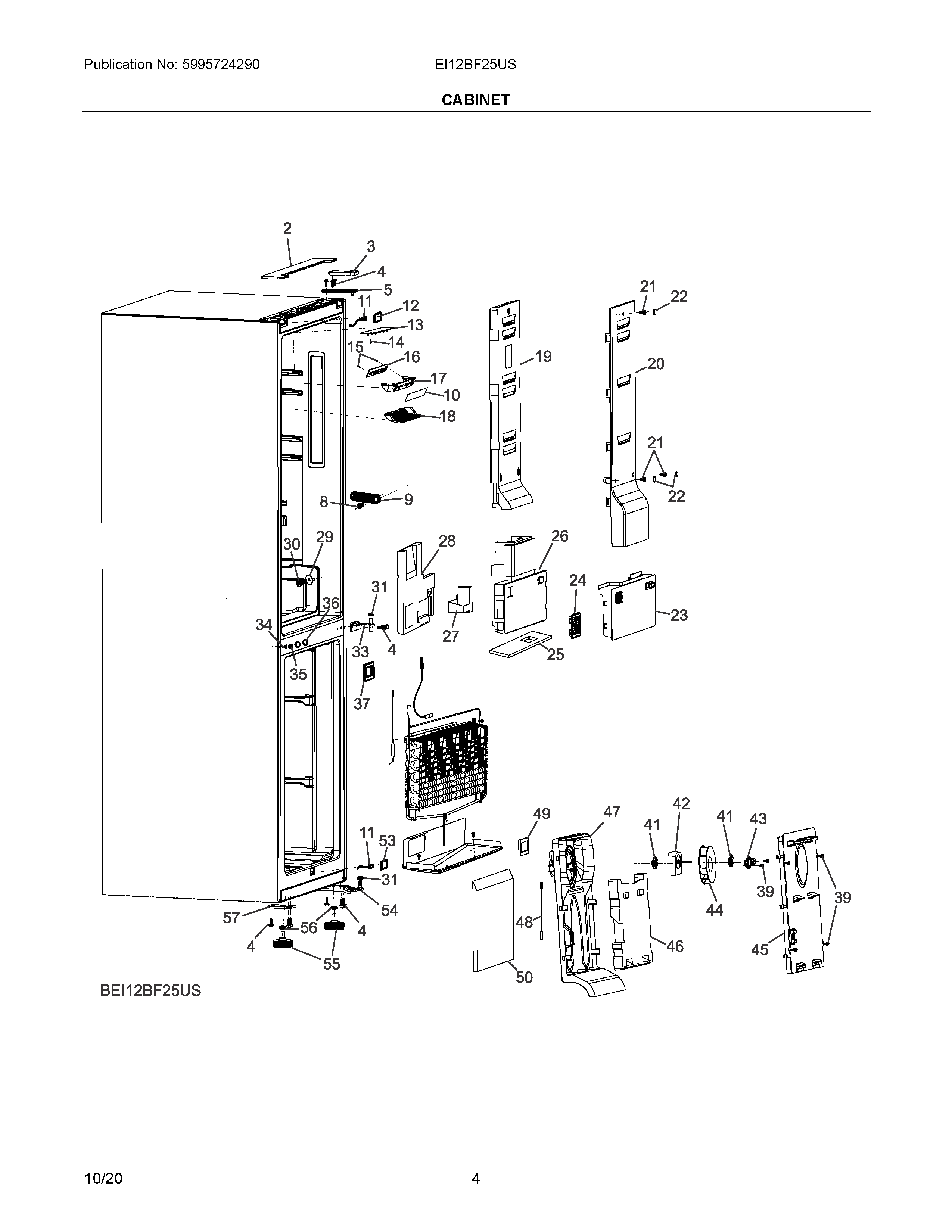

03 - CABINET

EI12BF25US
Plan number Part Number Description Replacement Price
2 5304519529 COVER,CABINET,UPPER   $53.00
3 5304519530 COVER,UPPER HINGE,RH SWING   $11.60
NIA 5304519531 COVER,UPPER HINGE,LH SWING   $12.35
4 5304519532 SCREW,SELF TAPPING,(11),SPECIA   $7.25
5 5304519533 HINGE,DOOR,UPPER   $62.40
8 5304519534 SCREW,SELF TAPPING   $8.00
9 5304519535 BUTTON,INSULATION   $9.45
10 5304519536 OVERLAY,BUTTON DISPLAY   $37.75
11 5304519537 SWITCH,REED,(2)   $77.65
12 5304519538 COVER,REED SWITCH,LH UPPER   $9.45
NIA 5304519539 COVER,REED SWITCH,RH UPPER   $9.45
13 5304519540 LAMP,LED   $120.45
14 5304519541 SCREW,SELF TAPPING   $5.80
15 5304519542 SCREW,SELF TAPPING,(2)   $2.90
16 5304519543 PC BOARD,DISPLAY   $244.55
17 5304519544 HOUSING,DISPLAY BOARD   $113.20
18 5304519545 COVER,LAMP   $29.05
19 5304519546 INSULATION,AIR DUCT,UPPER   $27.60
20 5304519547 COVER,AIR DUCT,UPPER   $8.70
21 5304519548 SCREW,SELF TAPPING,(3)   $8.70
22 5304519549 COVER,SCREW HOLE,(3)   $5.80
23 5304519550 COVER,AIR DUCT,LOWER   $66.05
24 5304519551 COVER,AIR RETURN,FRESH FOOD   $10.15
25 5304519552 SEAL,AIR DUCT,LOWER   $58.05
26 5304519553 INSULATION,AIR DUCT,LOWER   $71.10
27 5304519554 DAMPER ASSY   $195.95
28 5304519555 INSULATION,DAMPER   $46.45
29 5304519556 WASHER,(2)   $11.60
30 5304519557 ROLLER,DRAWER,(2)   $56.60
31 5304519558 WASHER,HINGE PIN,(2)   $7.25
33 5304519559 HINGE,MIDDLE   $55.15
34 5304519560 SCREW,SELF TAPPING   $2.90
35 5304519561 COVER,SCREW HOLE   $5.10
36 5304519562 COVER,SCREW HOLE,(2)   $4.35
37 5304519563 WASHER,SEALING   $7.25
39 5304519564 SCREW,SELF TAPPING,(10)   $8.00
41 5304519565 GROMMET,FAN MOTOR,(2)   $16.70
42 5304519566 MOTOR,EVAPORATOR FAN   $231.50
43 5304519567 SUPPORT,FAN MOTOR   $10.90
44 5304519568 BLADE,FAN   $29.05
45 5304519569 COVER,AIR DUCT,FREEZER   $128.45
46 5304519570 INSULATION,AIR DUCT,FREEZER   $65.30
47 5304519571 DUCT,AIR,FREEZER   $125.55
48 5304519572 SENSOR,TEMPERATURE   $60.95
49 5304519573 WASHER,SEALING   $16.70
50 5304519574 BLOCK,SPONGE   $34.85
53 5304519575 COVER,REED SWITCH,LOWER   $24.70
54 5304519576 HINGE,LOWER   $85.65
55 5304519577 FOOT,LEVELING,(2),ADJUSTABLE   $18.85
56 5304519578 CUSHION,LEVELING FOOT,(2)   $5.80
57 5304519579 BRACKET,LEVELING FOOT   $33.40
*The price can change whitout warning
