Brand: Electrolux

Model: FGET3066UFA - WALL OVEN, ELECTRIC, DOUBLE, 30 INCH

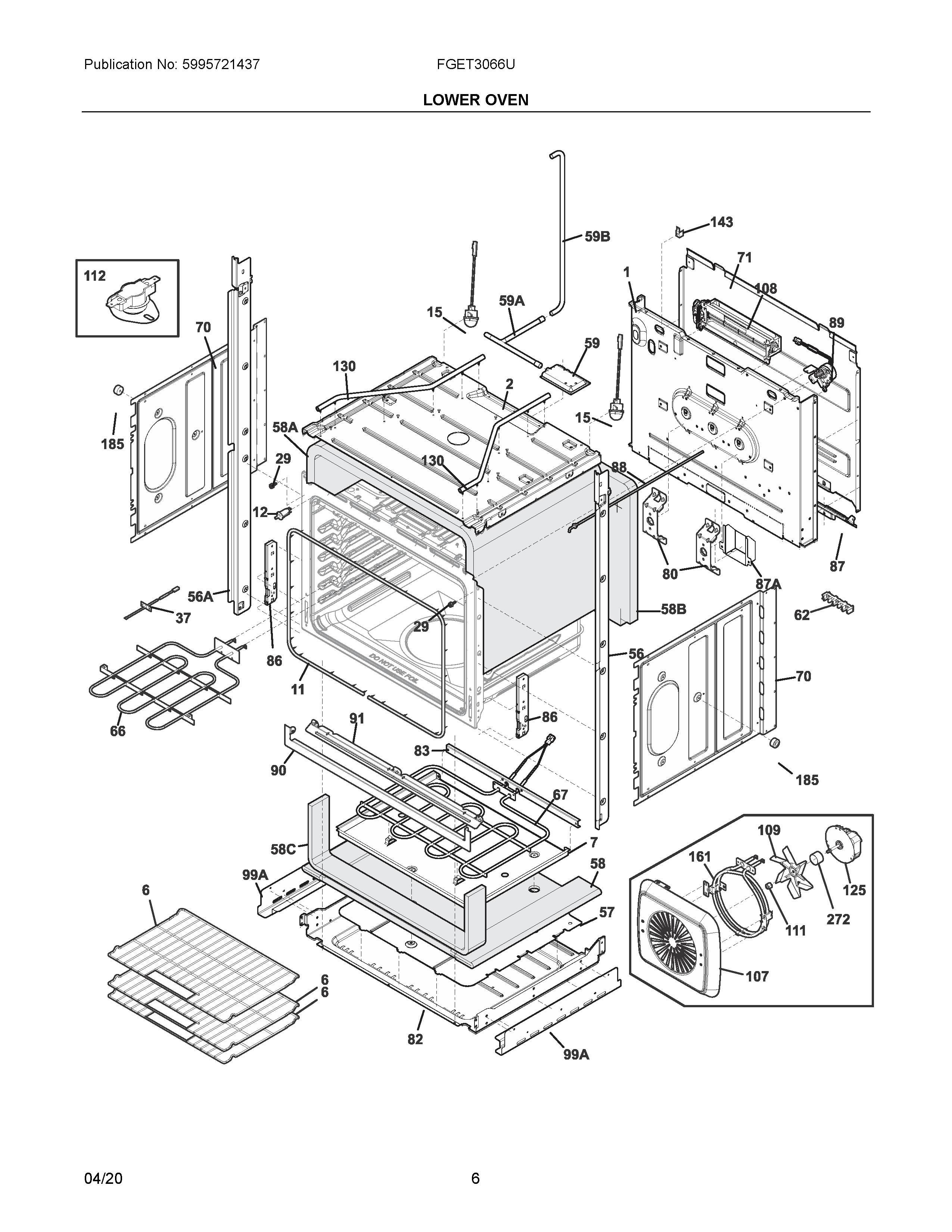

04 - LOWER OVEN

FGET3066UFA
Plan number Part Number Description Replacement Price
1 139035302 PANEL,MAIN BACK   $137.90
2 808651301 SHIELD,INSULATION,TOP 808651302   $101.60
6 5304514983 OVEN RACK,W/HANDLE   $150.95
7 808816302 BOX,BAKE ELEMENT 5304520858   $116.10
11 139036701 SEAL,OVEN DOOR   $106.70
12 318394802 SWITCH,OVEN LIGHT,DOOR FRAME 808136601   $40.65
NIA 5304514913 HARNESS,WIRING,DOOR SWITCH,LOW   $39.20
15 139009000 ROUND HALOGEN LAMP ASSY 5304528790   $21.80
NIA 318946500 HALOGEN LAMP G9 25W 120V   $54.45
29 316517600 SPACER,OVEN DOOR   $12.35
37 5304504897 OVEN TEMP PROBE   $43.55
56 139037610 TRIM,SIDE FILLER,BLACK,RH 5304520852   $52.25
56A 139037611 TRIM,SIDE FILLER,BLACK,LH 5304520850   $52.25
57 808109502 SHEILD,AIR WASH,LOWER 5304521752   $105.95
58 808816501 INSULATION,BOTTOM   $74.05
58A 808905501 INSULATION,OVEN WRAPPER 808905502   $82.00
58B 808905101 INSULATION,OVEN BACK   $75.50
58C 807887503 INSULATION,BAKE ELEMENT,FRONT   $25.40
59 808931403 VENT BOX ASSY.,W/CATALYST   $131.35
59A 808931501 TUBE,EXTENSION,CATALYST   $102.35
NIAA 5304500643 BRACKET,CATALYST TUBE   $16.70
59B 808931601 TUBE,CONNECTOR,CATALYST   $42.10
62 316056000 TERMINAL BLOCK 5304409888, WG02A00893   $11.60
NIA 316001003 SCREW,GROUNDING,10-24 X 1.835 316001017   $0.75
NIB 316205500 NUT,HEX FLANGE,3/8 10-32   $11.60
66 5304514924 ELEMENT,BROIL,6 PASS,4000W   $116.85
67 5304516286 ELEMENT,HIDDEN BAKE,2200W   $104.50
70 139000601 SHIELD,INSULATION,SIDES,(2)   $68.95
71 808650301 SHIELD,REAR WALL 5304520854   $92.15
NIA 139022101 INSUALTION,NOISE DAMPENING   $16.70
80 139021101 BRACKET,SUPPORT,CHASSIS/FAN   $15.25
82 808108901 SHIELD,INSULATION,LOWER 5304522581   $95.80
83 808816401 SHIELD,BAKE TRAY,REAR 5304520860   $24.70
86 139026900 RECEPTACLE,HINGE,DUAL SPRING   $33.40
NIA 316418900 VIS,SIMS LP,#8-32 X 5/16"   $14.50
87 808652001 BRACKET,CABLE BOX 5304520557   $53.00
87A 808652101 SHIELD,TERMINALS,BAKE ELEMENT 5304520866   $13.80
88 808721601 ROD,DOOR LATCH   $51.55
NIA 318167300 CLIP   $2.90
NIB 5303311164 SPRING WG02A00936   $0.00
89 808721802 MOTOR ASSEMBLY,DOOR LATCH 5304528925   $71.10
90 5304514922 TRIM,VENT,STAINLESS,LOWER   $108.15
91 5304518870 DIVIDER,LOWER AIR,BLACK   $78.40
99A 5304514974 SUPPORT,FLOOR   $37.75
107 139013903 COVER,CONVECTION FAN   $43.55
108 808963703 BLOWER 808963704   $176.35
109 139009100 FAN WHEEL 318398302   $24.70
111 316136600 ECROU   $19.60
112 5304494446 SWITCH,THERMAL CUTOFF,145C   $44.25
125 139008503 MOTOR,CONVECTION,2 SPEED 139008504   $217.00
130 808931801 SEAL,SILICONE,(2)   $19.60
131 808651702 DUCT,COOL FAN,LOWER   $110.30
143 318172904 SUPPORT,WIRE   $2.90
161 139006500 ELEMENT,CONVECTION,2500W   $93.60
185 318531800 SPACER - OVEN SHIELD   $13.05
272 139021700 TUBE,CONVECTION FAN   $18.15
NI 5304506955 HARNESS ASSEMBLY,CONDUIT,ELBOW   $166.90
NI 5304518585 HARNESS,WIRING,MAIN   $228.60
NI 5304514908 HARNESS,CONVECTION   $55.15
NI 316021105 SCREW, HEX   $11.60
NI 316021109 SCREW   $14.50
NI 316021110 SCREW 316021109   $14.50
NI 807597603 SCREW,SELF TAPPING,8-18 X 11/3   $9.45
NI 5303289910 SCREW,8A,1",(7),POWER BOARD MT   $5.80
NI 5303324184 SCREW,8-18 X 5/16,BLACK   $0.00
NI 5304470882 SCREW,ANTI-TIP ,8 - 5/8 ,BLACK   $13.80
*The price can change whitout warning
