Brand: Electrolux
Model: FDB2410HIS3B - DISHWASHER, BUILT-IN, 24 INCH

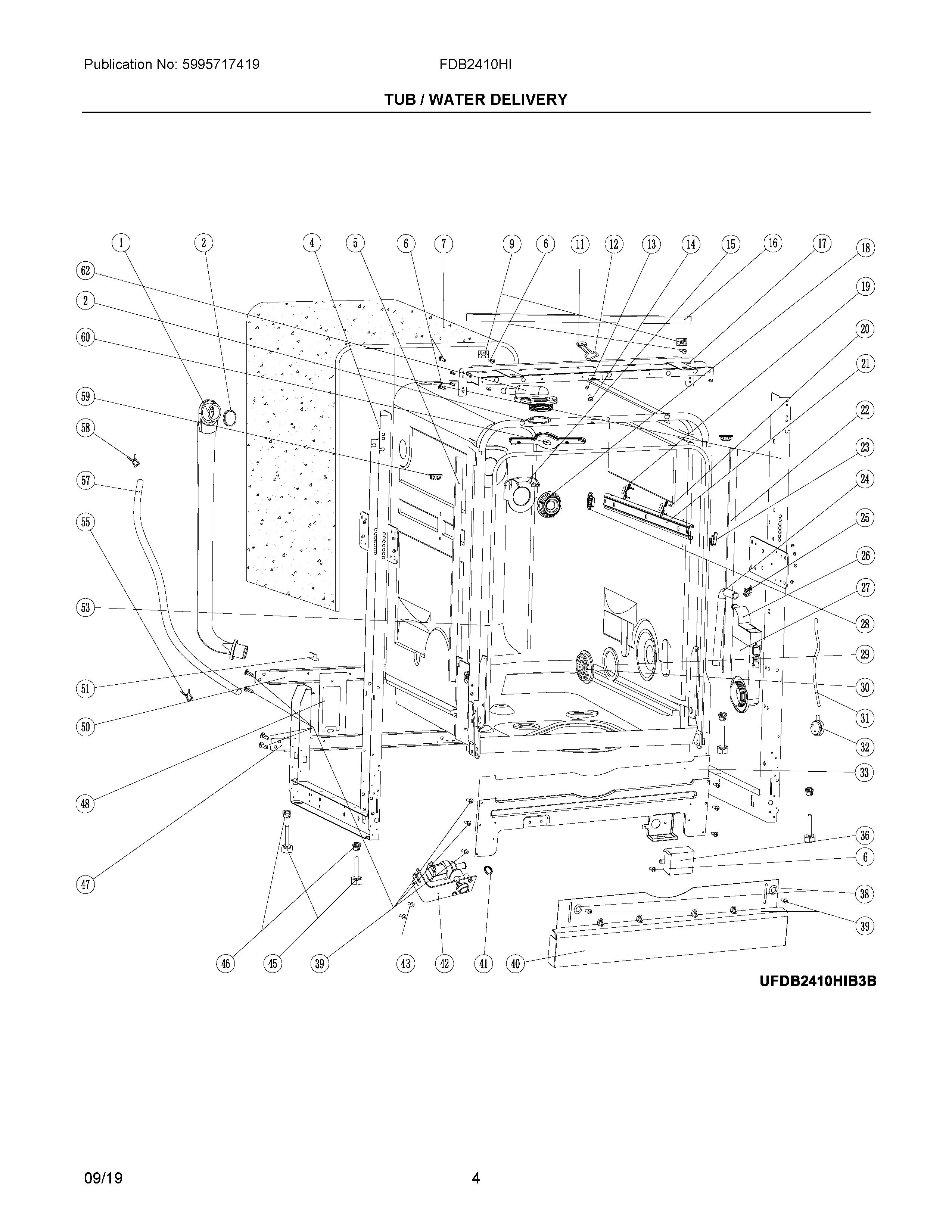

03 - TUB / WATER DELIVERY
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 5304482253 | DELIVERY HOSE, ASSEMBLY | $0.00 | |||
| 2 | 5304482363 | RING "O" OUTLET PIPE | $8.00 | |||
| 3 | 5304509279 | TUB ASSEMBLY | 5304482364 | $0.00 | ||
| 4 | 5304482365 | UPRIGHT ASSEMBLY, LH | $0.00 | |||
| 4A | 5304482366 | UPRIGHT ASSEMBLY, RH | $0.00 | |||
| 5 | 5304482367 | TUB GUARD, LH, WHITE | $0.00 | |||
| 6 | 5304482369 | SCREW, REC TAPPING, ST 3.5 X 9 | $0.00 | |||
| 7 | 5304482370 | INSULATION, BLANKET, TUB, SOUND PROOF | $0.00 | |||
| 8 | 5304482371 | RIVET, (6) | $0.00 | |||
| 9 | 5304482372 | BLOCK, TOP, (2) | $0.00 | |||
| 10 | 5304482373 | SCREW, REC TAPPING, ST 3.5 X 11, (2) | $0.00 | |||
| 11 | 5304482374 | BLOCK,COUPLING | 5304512893 | $3.80 | ||
| 12 | 5304483485 | HOOK,DOOR LOCK | $21.05 | |||
| 13 | 5304482375 | LOCKNUT,M4,13 | $5.10 | |||
| 14 | 5304482376 | SCREW,REC CNTRSUNK HD,M4 X 16, | $7.25 | |||
| 15 | 5304482377 | CASING,DELIVERY TUBE,INLET,15 | $20.35 | |||
| 16 | 5304482378 | TUB GUARD, TOP, WHITE | $0.00 | |||
| 17 | 5304482380 | CROSS PIECE, FRONT, WHITE, UPPER | $0.00 | |||
| 18 | 5304482382 | NUT, DELIVERY TUBE, INLET | $0.00 | |||
| 19 | 5304482383 | BRACKET, GUIDE RAIL, (4) | $0.00 | |||
| 20 | 5304482384 | O RING, BRACKET, GUIDE RAIL, (8) | $0.00 | |||
| 21 | 5304482385 | RAIL, RACK GUIDE, (2) | $0.00 | |||
| 22 | 5304482386 | TUB GUARD, RH, WHITE | $0.00 | |||
| 23 | 5304482388 | BLOCK, GUIDE RAIL, FRONT, (2) | $0.00 | |||
| 24 | 5304482389 | HOSE,INLET,TUNNEL,24 | $70.40 | |||
| 25 | 5304482390 | CLAMP,HOSE,14.9 X 1.8,25 | $18.15 | |||
| 26 | 5304482391 | COVER, WATER TUNNEL | $0.00 | |||
| 27 | 5304482392 | TUNNEL,WATER,27 | $29.05 | |||
| 28 | 5304482393 | BLOCK,GUIDE RAIL,REAR,(2),28 | $20.35 | |||
| 29 | 5304482394 | GASKET | $13.80 | |||
| 30 | 5304482395 | RING NUT | $0.00 | |||
| 31 | 5304482396 | HOSE, PREESURE SWITCH, PVC | $0.00 | |||
| 32 | 5304482397 | SWITCH,PRESSURE,32 | $117.55 | |||
| 33 | 5304482398 | INSUALTION, FRONT, LOWER, SOUND PROOF | $0.00 | |||
| 34 | 5304482399 | CROSS PIECE, FRONT, LOWER | $0.00 | |||
| 35 | 5304482400 | BOX, JUNCTION, REAR | $0.00 | |||
| 36 | 5304482401 | BOX, JUNCTION, FRONT | $0.00 | |||
| 38 | 5304482402 | O RING, MTG SCREW, (2), FOR TOE PLATE | $0.00 | |||
| 40 | 5304482403 | TOE PLATE, ADJUSTABLE, WHITE | $0.00 | |||
| 41 | 5304482405 | CLAMP, OTK175 | $0.00 | |||
| 42 | 5304482406 | VALVE,INLET | $81.30 | |||
| 43 | 5304482407 | SCREW, HEX HD TPNG, ST5 X 12, (2) | $0.00 | |||
| 45 | 5304509266 | FOOT,LEVELING,(4) | $16.70 | |||
| 46 | 5304482409 | HOLDER, LEVELING FOOT, (4) | $0.00 | |||
| 47 | 5304482410 | CROSS PIECE, BACK, LOWER | $0.00 | |||
| 48 | 5304482411 | BRACKET, MOTOR SUPPORT | $0.00 | |||
| 50 | 5304482412 | CROSS PIECE, BACK, UPPER | $0.00 | |||
| 51 | 5304482413 | BLOCK, BRACING, (2) | $0.00 | |||
| 52 | 5304482414 | SCREW, REC, M4 X 6 | $0.00 | |||
| 53 | 5304482415 | GASKET, TUB | $0.00 | |||
| NIA | 5304485149 | FASTENER, TUB GASKET, BOTTOM, (2) | $0.00 | |||
| 55 | 5304482417 | CLAMP, HOSE, OTK157 | $0.00 | |||
| 57 | 5304482418 | TUBING,SPRAY ARM,UPPER | 5304522737 | $49.35 | ||
| 58 | 5304482419 | CLAMP, HOSE, 12.9 X 1.8 | $0.00 | |||
| 59 | 5304482420 | COVER, (2) | $0.00 | |||
| 60 | 5304482421 | UPPER SPRAY ARM | $25.30 | |||
| 62 | 5304482422 | NUT, SPRAY ARM, UPPER | $0.00 | |||
| NI | 5304482416 | SCREW, HEX HD TAP, ST5 X 20, (8) | $0.00 | |||
| 1 | 5304522729 | TUBE | $37.00 | |||
| 6 | 5304483493 | SCREW, ST3.5 X 9, (4) | $0.00 | |||
| 7 | 5304522730 | INSULATION, BLANKET, TUB, SOUND PROOF | $0.00 | |||
| 9 | 5304482372 | BLOCK, TOP, BLACK, (2) | $0.00 | |||
| 14 | 5304522731 | SCREW, COUNTERTOP | $0.00 | |||
| 19 | 5304522732 | BRACKET, GUIDE RAIL, (4) | $0.00 | |||
| 20 | 5304522733 | O RING, BRACKET, GUIDE RAIL, (8) | $0.00 | |||
| 33 | 5304522734 | CROSS PIECE, FRONT, LOWER, W/INSULATION | $0.00 | |||
| 39 | 5304482451 | SCREW, REC TAP, ST3.5 X 13, (6) | $0.00 | |||
| 41 | 5304519927 | CLAMP,TUBE,AIR BREAK,TO DRAIN | 5304523308 | $7.25 | ||
| 42 | 5304522735 | VALVE,INLET | $179.25 | |||
| 55 | 5304522736 | CLAMP, HOSE, OTK157 | $0.00 | |||
| 57 | 5304522737 | TUBING,SPRAY ARM,UPPER | $49.35 |
*The price can change whitout warning
