Brand: Whirlpool

Model: WRX735SDHZ02 - REFRIGERATOR, 4-DOOR, BOTTOM MOUNT

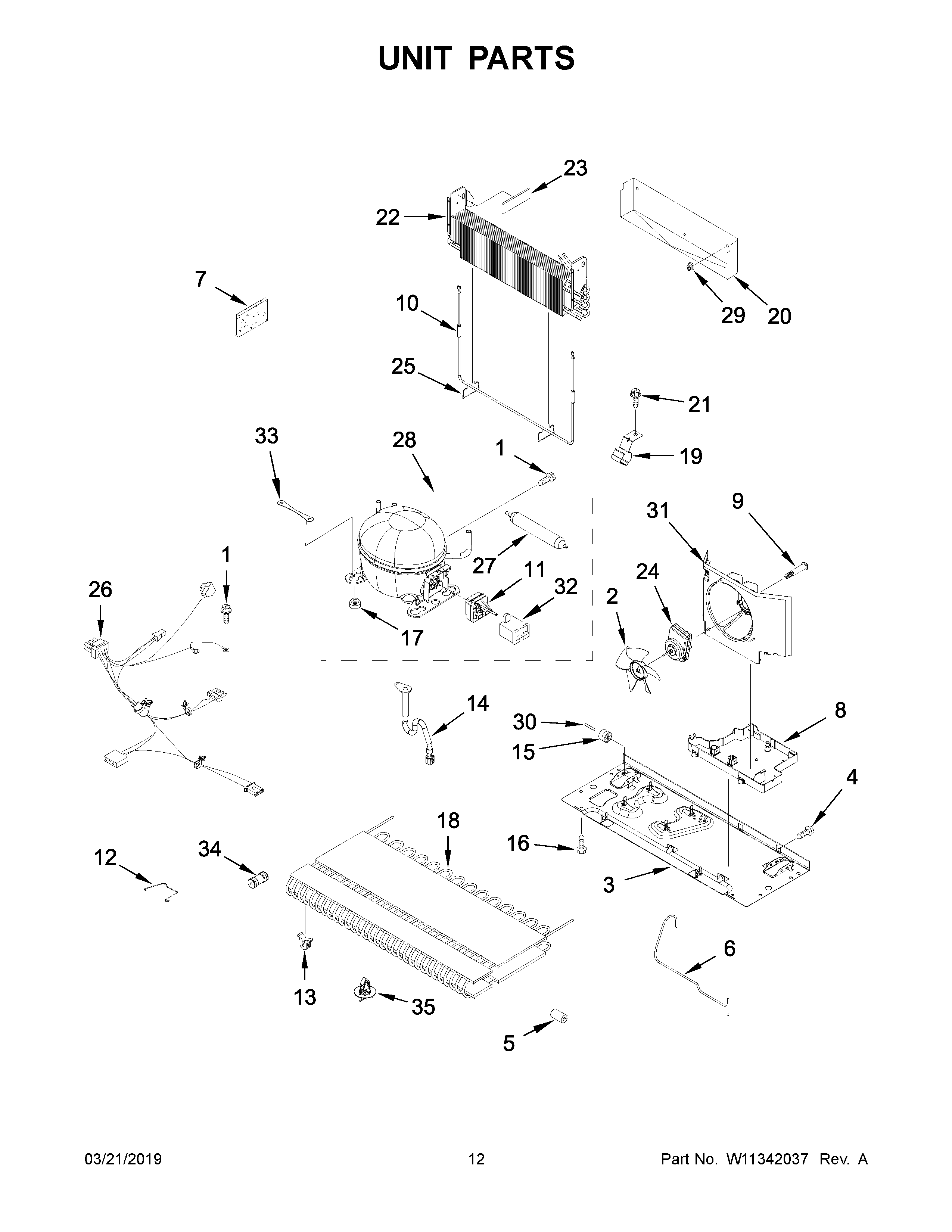

07 - UNIT PARTS

WRX735SDHZ02
Plan number Part Number Description Replacement Price
1 12992301 SCREW   $27.61
2 12825803 BLADE-FAN WP12825803   $80.19
3 W10480111 BASEPAN W11727651   $0.00
4 12990511 SCREW 67006425   $6.50
5 2319835 GROMMET W10852725   $6.80
6 W10795418 TUBE   $91.15
7 2169104 INSULATION W11553819   $11.19
8 W10655368 PAN-36" DRAIN WPW10655368   $130.12
9 W10622701 SCREW W10829281   $9.36
10 12729123 HEATER WP12729123   $147.91
11 W10798748 START DEVICE W11092533   $125.15
12 W10216075 CLIP W11092534   $9.96
13 W10137529 GROMMET WPW10137529   $7.03
14 W10622099 EXTENSION, DRAIN TUBE W10619951, W10309238     Call to order
15 12477102 ROLLER WP67005149   $20.16
16 12992101 SCREW   $11.19
17 W10806346 GROMMET W11678963   $6.06
18 W10346415 CONDENSER WPW10346415   $310.11
19 W10281329 CLAMP   $11.19
20 W10292803 TRAY-DRIP W11547653   $39.24
21 12990702 SCREW W11686675   $11.19
22 W10313899 EVAPORATOR W11536253   $183.86
23 A3189397 GASKET W11451451   $10.08
24 W10909377 MOTOR-COND W11613295   $100.00
25 10428101 CLIP W11673433   $109.19
26 W11239039 HARNS-WIRE W11396380   $87.26
27 W10177049 UV DRIER-TUBE WPW10143759   $25.87
28 W11100924 COMPRESSOR W11209866   $332.50
29 10623002 CLIP   $9.66
30 12477202 AXLE,ROLLER 67006434   $6.27
31 W10189184 SHROUD, CONDENSER FAN WPW10189184, W11556315   $0.00
32 W10350564 CAPACITOR WPW10350564   $94.54
33 W10236396 STRAP   $15.80
34 W10334458 CONNECTOR WPW10334458   $19.71
35 W10815863 CLIP   $31.23
NI N/P FOLLOWING PARTS NOT ILLUSTRATED   $0.00
NI 978025 VALVE WP978025   $79.00
NI 978026 VALVE   $94.63
NI 978027 VALVE   $96.52
NI 978029 VALVE, ACCESS (5/8")   $0.00
NI 978030 VALVE   $101.28
NI 876764 VALVE   $73.02
NI N/P REFRIGERANT CHARGE 4.50 OZ. (R-134A)   $0.00
NI NP GEARCASE MOTOR HOUSING (REFER TO COLOR VARIATION PARTS PAGE)   $0.00
17 10835903 GROMMET WPW10169124   $5.83
6 W10233569 TUBE WPW10233569   $96.73
11 W10796752 START DEVICE W10873801   $128.87
28 W10879296 COMPRESSOR W10507884   $724.63
24 W11373924 MOTOR-COND W11613295   $100.00
23 W11244122 GASKET W11451451   $10.08
*The price can change whitout warning
