Brand: Electrolux

Model: FPGC3677RSF - COOKTOP, GAS, 36 INCH

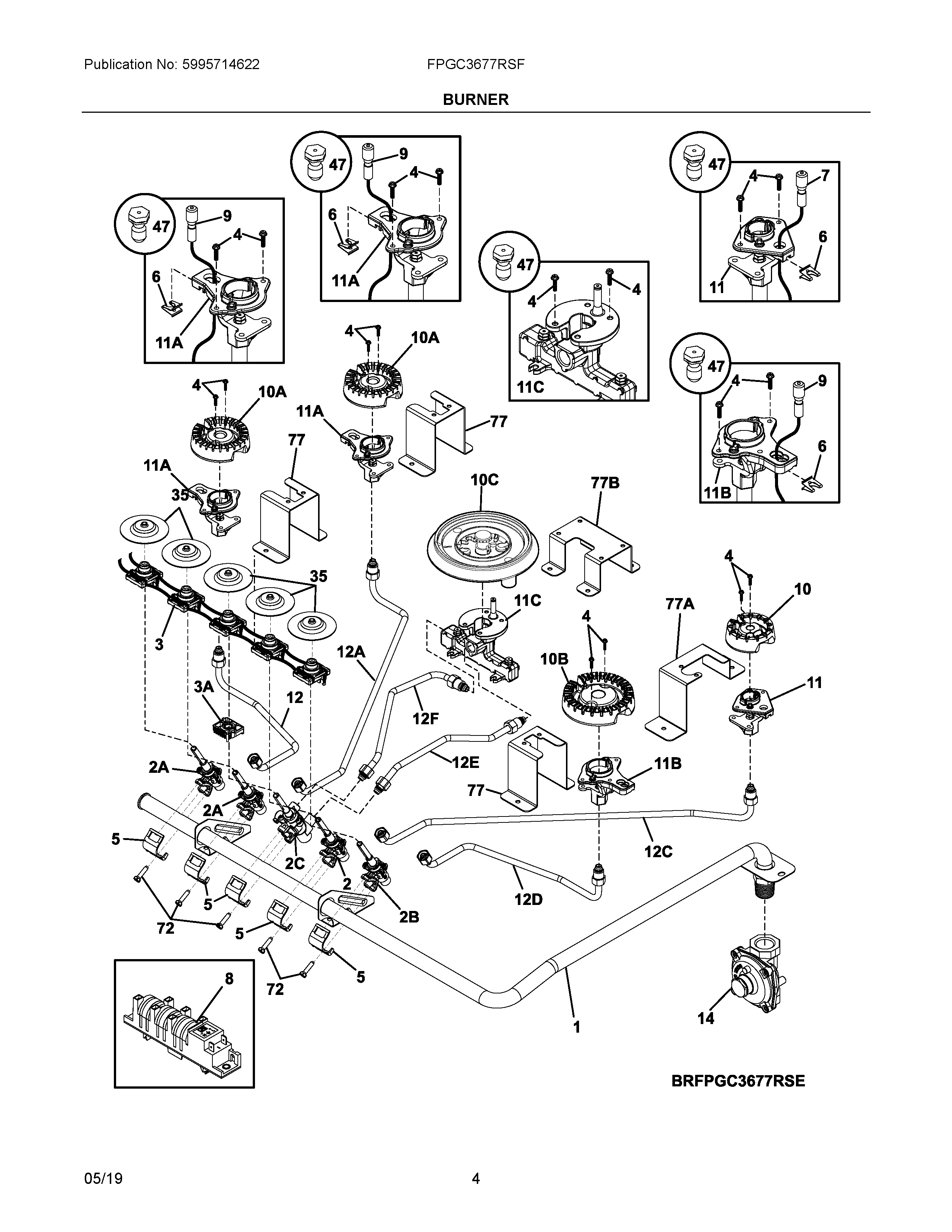

03 - BURNER

FPGC3677RSF
Plan number Part Number Description Replacement Price
1 5304519945 MANIFOLD PIPE   $90.00
2 5304505693 VALVE,SADDLE,680 BTU,ORANGE ST   $66.75
2A 5304505690 VALVE,SADDLE,850 BTU,GREEN STE   $66.75
2B 5304505691 VALVE,SADDLE,1125 BTU,BLUE STE   $66.05
2C 5304508435 VALVE,SADDLE,1500/2000 BTU,YEL   $178.55
3 305595115 SWITCH ASSEMBLY,IGNITOR,W/HARN 5304527828   $31.20
3A 5304508439 ADAPTER,SWITCH,DUAL VALVE   $15.25
4 5304472956 SCREW,MOUNTING,IGNITOR 316240600   $11.60
5 357733402 BRACKET,VALVE FIXING   $8.70
6 5304516455 SPRING CLIP,IGNITOR   $5.10
7 5304516453 IGNITOR,TOP BURNER,380MM,W/WIR   $16.70
8 5304505696 MODULE,SPARK,6 OUTPUTS   $76.95
NIA 5304516456 WIRE,GROUNDING   $14.50
9 5304516454 IGNITOR,TOP BURNER,520MM,W/WIR   $18.85
10 316438200 BURNER, SEALED, 5K   $58.05
10A 316558300 SEALED BURNER   $53.70
10B 316438600 BURNER, SEALED, 14K   $81.30
10C 5304519952 BURNER ASSEMBLY,G5   $90.70
11 5304516449 HOLDER,ORIFICE/IGNITOR,5K,W/NA   $42.10
11A 5304516450 HOLDER,ORIFICE/IGNITOR,9.5K   $42.10
11B 5304516452 HOLDER,ORIFICE/IGNITOR,14K,W/N   $45.70
NIC 316566901 SLEEVE,INSULATOR   $12.35
NICA 5304516459 WIRING,IGNITOR,G5,TWIN BURNER   $10.55
11CB 316440107 IGNITOR/ORIFICE ASSY.,TOP BURN   $187.25
12 5304498881 TUBE,BURNER,LH FRONT 5304520943   $21.80
12A 5304498882 TUBE,BURNER,LH REAR 5304520942   $25.40
12C 5304498884 TUBE,BURNER,RH FRONT 5304520940   $21.80
12D 5304498885 TUBE,BURNER,RH REAR 5304520941   $23.95
12E 5304508438 TUBE,DUAL BURNER,SECONDARY   $32.65
12F 5304508437 TUBE,DUAL BURNER,MAIN   $29.75
14 5304519943 REGULATOR,PRESSURE   $127.00
NIA 5304519944 CAP,REGULATOR,RED   $8.00
35 5304508440 BUSHING,INSULATING   $10.90
47 5304508448 LP KIT,GAS CONVERSION 5304509014   $79.85
72 5304508436 SCREW,SADDLE VALVE,M4   $4.35
77 5304498799 BRACKET,IGNITOR/ORIFICE,MOUNTI   $18.85
77A 5304498800 BRACKET,IGNITOR/ORIFICE,5K BUR 5304523447   $12.35
77B 5304500254 BRACKET,TWIN BURNER   $18.15
NI 305309701 SCREW,PHIL,4.2 X 6.5,(20)   $5.80
NI 305338602 SCREW,(3)   $3.65
*The price can change whitout warning
