Brand: Electrolux

Model: EW36GC55PS5 - COOKTOP, GAS, 36 INCH

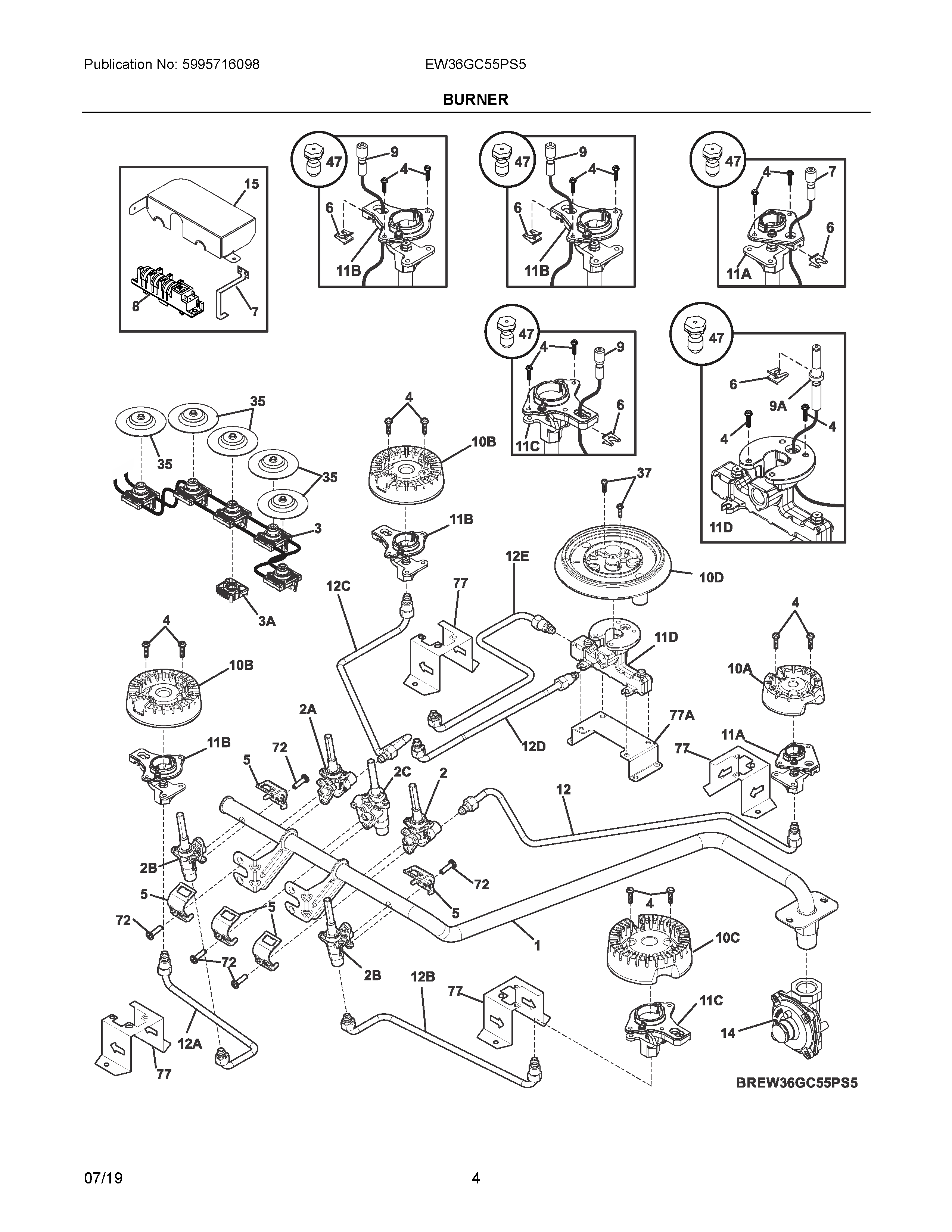

03 - BURNER

EW36GC55PS5
Plan number Part Number Description Replacement Price
1 5304519954 MANIFOLD PIPE 5304527974   $69.65
2 5304508471 VALVE,SADDLE,670/750 BTU,ORANG   $65.30
2A 5304508472 VALVE,SADDLE,1350/1500 BTU,PIN   $65.30
2B 5304508464 VALVE,SADDLE,1800/2000 BTU,RED   $63.15
2C 5304508579 VALVE, SADDLE, 1500/2000 BTU, YELLOW STEM, TWIN BURNER   $0.00
3 305595115 SWITCH ASSEMBLY,IGNITOR,W/HARN 5304527828   $31.20
3A 5304508439 ADAPTER,SWITCH,DUAL VALVE   $15.25
4 5304472956 SCREW,MOUNTING,IGNITOR 316240600   $11.60
5 357733402 BRACKET,VALVE FIXING   $8.70
6 5304516455 SPRING CLIP,IGNITOR   $5.10
7 5304516453 IGNITOR,TOP BURNER,380MM,W/WIR   $16.70
8 5304505696 MODULE,SPARK,6 OUTPUTS   $76.95
NIA 305452800 SCREW,GROUND   $9.45
NIB 5304516456 WIRE,GROUNDING   $14.50
9 5304516454 IGNITOR,TOP BURNER,520MM,W/WIR   $18.85
9A 5304522453 IGNITOR,TOP BURNER,G5 18/20K   $23.95
10A 316438200 BURNER, SEALED, 5K   $58.05
10B 316558300 SEALED BURNER   $53.70
10C 316438600 BURNER, SEALED, 14K   $81.30
10D 5304519952 BURNER ASSEMBLY,G5   $90.70
11A 5304516449 HOLDER,ORIFICE/IGNITOR,5K,W/NA   $42.10
11B 5304516450 HOLDER,ORIFICE/IGNITOR,9.5K   $42.10
11C 5304516452 HOLDER,ORIFICE/IGNITOR,14K,W/N   $45.70
11D 5304522454 HOLDER ASSEMBLY,IGNITOR/ORIFIC   $162.55
NIDA 316566901 SLEEVE,INSULATOR   $12.35
12 305596000 TUBING,TOP BURNER,RH REAR   $31.95
12A 305595700 TUBING,TOP BURNER,LH FRONT   $32.65
12B 305595900 TUBING,TOP BURNER,RH FRONT   $29.05
12C 305595800 TUBING, TOP BURNER, LH REAR   $0.00
12D 5304508590 TUBE,DUAL BURNER,SECONDARY 5304527979   $11.60
12E 5304508589 TUBE,DUAL BURNER,MAIN 5304527978   $11.60
13 318024209 DEFLECTOR, SPARK MODULE   $0.00
14 5304519943 REGULATOR,PRESSURE   $127.00
NIA 5304519944 CAP,REGULATOR,RED   $8.00
15 5304508591 SHIELD,HEAT   $17.40
NIA 803910601 SCREW,(2)   $3.65
35 5304508440 BUSHING,INSULATING   $10.90
37 305309701 SCREW,PHIL,4.2 X 6.5,(20)   $5.80
47 5304506289 LP KIT,GAS CONVERSION   $95.05
72 5304508436 SCREW,SADDLE VALVE,M4   $4.35
77 318920309 BRACKET, BURNER MTG, (3)   $0.00
77A 305583001 BRACKET,BURNER,DUAL   $10.15
NI 305338602 SCREW,(3)   $3.65
NI 305338702 SCREW,(4)   $5.10
*The price can change whitout warning
