Brand: Electrolux

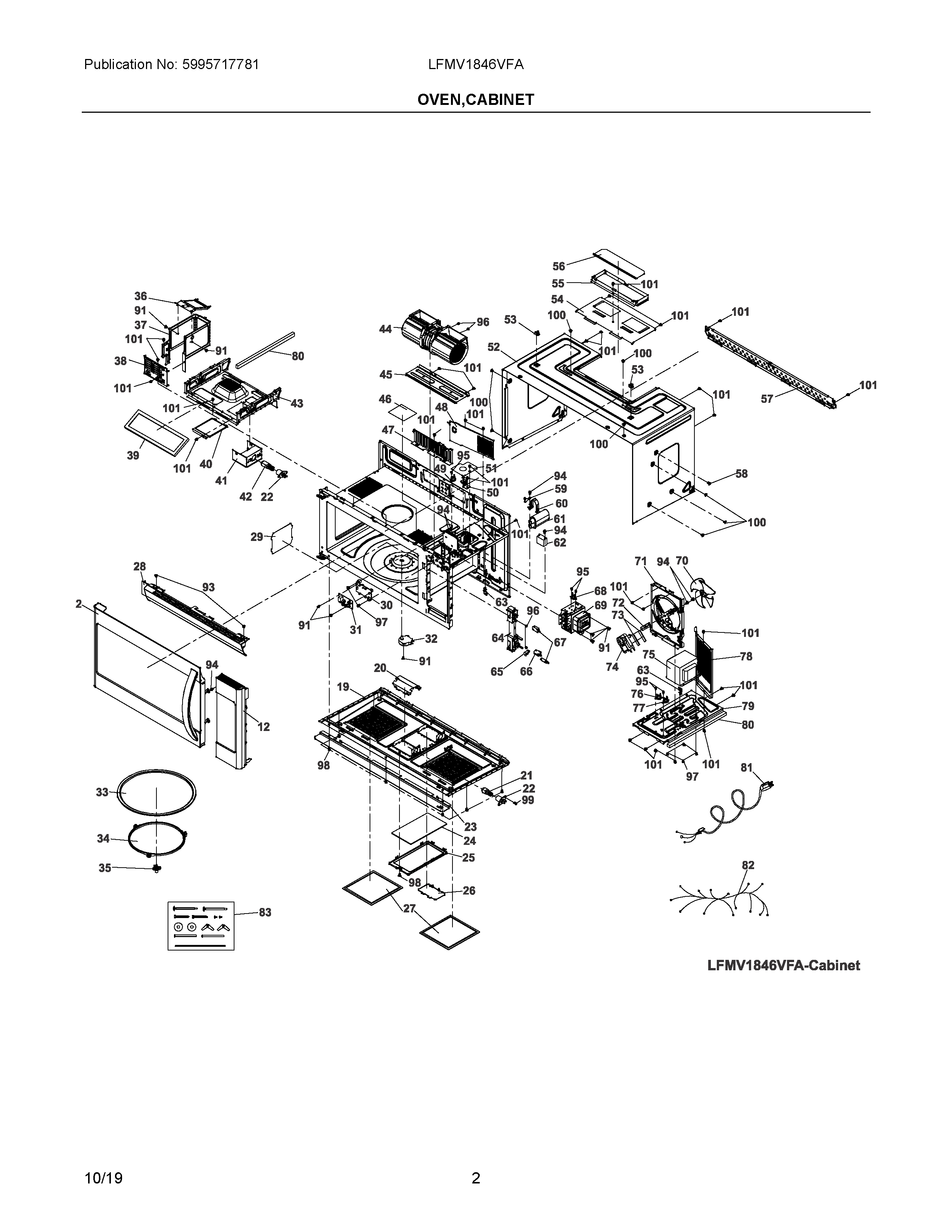

Model: LFMV1846VFA - MICROWAVE, OVER-THE-RANGE

02 - OVEN,CABINET

LFMV1846VFA
Plan number Part Number Description Replacement Price
2 5304522787 DOOR ASSEMBLY,COMPLETE,STAINLE   $268.50
12 5304522797 CONTROL PANEL,ASSEMBLY,COMPLET   $205.40
19 5304522925 BASE,UNTI CHASSIS   $136.45
20 5304522803 COVER,LAMP   $10.15
21 5304522068 LAMP,LED   $22.50
22 5304522926 SOCKET,LAMP   $13.80
23 5304522804 SHIELD,HEAT   $31.95
24 5304522805 LENS,LAMP COVER   $27.60
25 5304522806 FRAME,LAMP COVER   $39.90
26 5304522807 COVER,BASE   $14.50
27 5304522066 FILTER,GREASE,WASHABLE   $22.50
28 5304522808 VENT GRILL,FRONT   $79.85
29 5304522809 COVER,WAVE GUIDE   $7.25
30 5304522810 BRACKET,NOISE FILTER   $14.50
31 5304522811 PC BOARD,NOISE FILTER   $101.60
32 5304522812 MOTOR,TURNTABLE   $37.75
33 5304522813 TURNTABLE,GLASS   $105.95
34 5304522814 SUPPORT,TURNTABLE RING   $15.25
35 5304522815 COUPLER,TURNTABLE/MOTOR   $15.25
36 5304522816 BRACKET,SENSOR RACK   $14.50
37 5304522817 BRACKET,AIR DUCT   $26.15
38 5304522818 SHIELD,HEAT PROTECTION   $20.35
39 5304522067 FILTER,CHARCOAL   $32.65
40 5304522819 COVER,LAMP   $15.95
41 5304522820 HOLDER,LAMP   $16.70
42 5304522069 BULB,OVEN INTERIOR   $10.90
43 5304522821 SHIELD,HEAT   $31.95
44 5304522822 BLOWER,VENT MOTOR   $293.20
45 5304522823 BRACKET,VENT MOTOR   $23.95
46 5304522824 INSULATION   $10.15
47 5304522825 SHIELD,DEFLECTOR   $16.70
48 5304522826 SHIELD,DEFLECTOR,TOP   $18.15
49 5304522827 THERMOSTAT,105 DEG C   $10.90
50 5304522828 BRACKET,MAGNETRON   $8.00
51 5304522829 SHIELD,MICA   $6.55
52 5304522830 WRAPPER,OUTER CABINET   $176.35
53 5304522831 NUT ASSEMBLY,MOUNTING   $13.80
54 5304522832 COVER,BLOWER   $25.40
55 5304522833 FRAME,AIR EXHAUST   $105.25
56 5304522834 DAMPER,AIR EXHAUST   $31.95
57 5304522835 BRACKET,WALL/CABINET,MOUNTING   $55.15
58 5304522836 SEAL,WRAPPER   $5.80
59 5304522837 DIODE,HIGH VOLTAGE   $17.40
60 5304522838 HOLDER,CAPACITOR   $6.55
61 5304522839 CAPACITOR,HIGH VOLTAGE   $101.60
62 5304522840 CAPACITOR   $37.00
63 5304522841 CLIP   $8.00
64 5304522927 LATCH HOOK,ASSEMBLY   $23.95
65 5304522842 LEVER,LATCH HOOK   $7.25
66 5304522843 MICROSWITCH,W-15-202C   $18.85
67 5304522844 MICROSWITCH,W-15-302C,(2)   $18.85
68 5304522845 THERMOSTAT,180 DEG C   $10.90
69 5304522846 MAGNETRON   $270.70
70 5304522847 BLADE,FAN   $17.40
71 5304522928 BRACKET,FAN   $23.95
72 5304522848 BRACKET,FAN 5304522928   $23.95
73 5304522849 PADDING,SHOCKPROOF,(2)   $5.10
74 5304522850 MOTOR,FAN   $123.35
75 5304522851 TRANSFORMER,HIGH VOLTAGE   $145.15
76 5304522929 THERMOSTAT,60 DEG C   $15.25
77 5304522930 THERMOSTAT,120 DEG C   $12.35
78 5304522852 COVER,WAVE GUIDE   $25.40
79 5304522853 BASE,RIGHT SIDE   $55.90
80 5304522854 INSULATION,SPONGE,(2)   $22.50
81 5304522855 CORD,POWER,ELECTRIC SERVC   $107.40
82 5304522856 HARNESS,WIRING,MAIN   $68.20
83 5304522857 MOUNTING KIT,WALL/CABINET   $34.10
91 5304522858 SCREW,9# ST3X8,(16)   $8.00
93 5304522860 SCREW,95# ST4X12,(2)   $8.00
94 5304522861 SCREW,19# M4X10,(7)   $8.00
95 5304522862 SCREW,16# ST3X6,(5)   $8.00
96 5304522863 SCREW,14# ST4X12,(4)   $8.00
97 5304522864 SCREW,24# M4X8,(6)   $8.00
98 5304522865 SCREW,169# M4X10,(7)   $8.00
99 5304522866 SCREW,26# M4X10,(1)   $8.00
100 5304522867 SCREW,6# ST4X8,(8)   $8.00
101 5304522868 SCREW,6# ST4X8,(33)   $8.00
NI 5304522859 SCREW,1# M5X10,(3)   $8.00
*The price can change whitout warning
