Brand: Whirlpool
Model: KFDC500JBK00 - RANGE/OVEN, DUAL FUEL, FREESTANDING, 30 INCH

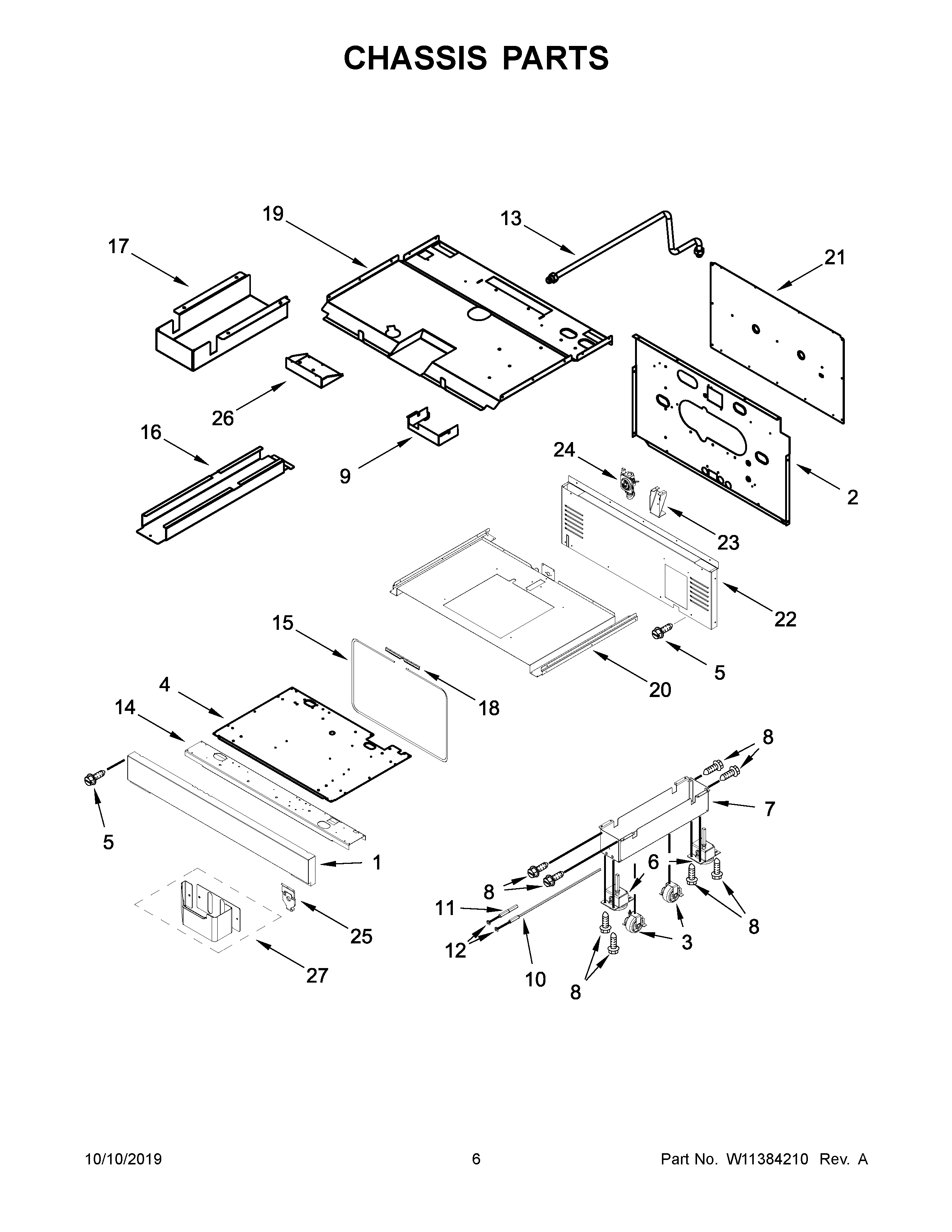

04 - CHASSIS PARTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W11394775 | PLATE-COVR | W11406231 | $298.34 | ||
| 2 | W11105911 | COVER-REAR | $94.23 | |||
| 3 | W10138054 | ROLLER-CAB | WPW10138054 | $34.87 | ||
| 4 | W11109583 | DUCT | $123.41 | |||
| 5 | 7101P426-60 | SCREW | WP90767 | $6.30 | ||
| 6 | 9760860 | FOOT-LEVEL | W10859931 | $83.05 | ||
| 7 | W10908710 | BRKT-MNTG | $102.87 | |||
| 8 | 4449743 | MTR SC LRCA BLK | WP4449743 | $6.34 | ||
| 9 | W11106335 | COVER-CNTL | $62.44 | |||
| 10 | W10115869 | SHAFT | $78.47 | |||
| 11 | W10115793 | SHAFT | $56.06 | |||
| 12 | 489504 | RING-E | $5.68 | |||
| 13 | W11106963 | TUBING-GAS | W11320154 | $133.57 | ||
| 14 | W11087491 | SUPPORT | $80.23 | |||
| 15 | W11115328 | GASKET-DOOR | W11675844 | $50.41 | ||
| 16 | W11050145 | DUCT-AIR | $123.41 | |||
| 17 | W11084360 | CHANNEL | W11320146 | $59.61 | ||
| 18 | W11362015 | RETAINER | $120.76 | |||
| 19 | W11037137 | TOP-OVEN | $110.32 | |||
| 20 | W11040802 | BOTTM-MAIN | $149.58 | |||
| 21 | W11103334 | COVER-REAR | $110.32 | |||
| 22 | W11034134 | COVER-REAR | $71.09 | |||
| 23 | W11096823 | BRKT-MNTG | W11320155 | $59.61 | ||
| 24 | W10449140 | REGULATOR | W11106948 | $229.92 | ||
| 25 | W11036559 | CLIP | W11318207 | $9.59 | ||
| 26 | W11106341 | DRAWER | W11320147 | $88.37 | ||
| 27 | W11199181 | COVER-FOOT | $59.18 | |||
| 27A | W11199178 | COVER-FOOT | $59.18 |
*The price can change whitout warning
