Brand: Whirlpool
Model: KFGC500JIB00 - RANGE/OVEN, GAS, FREESTANDING, 30 INCH

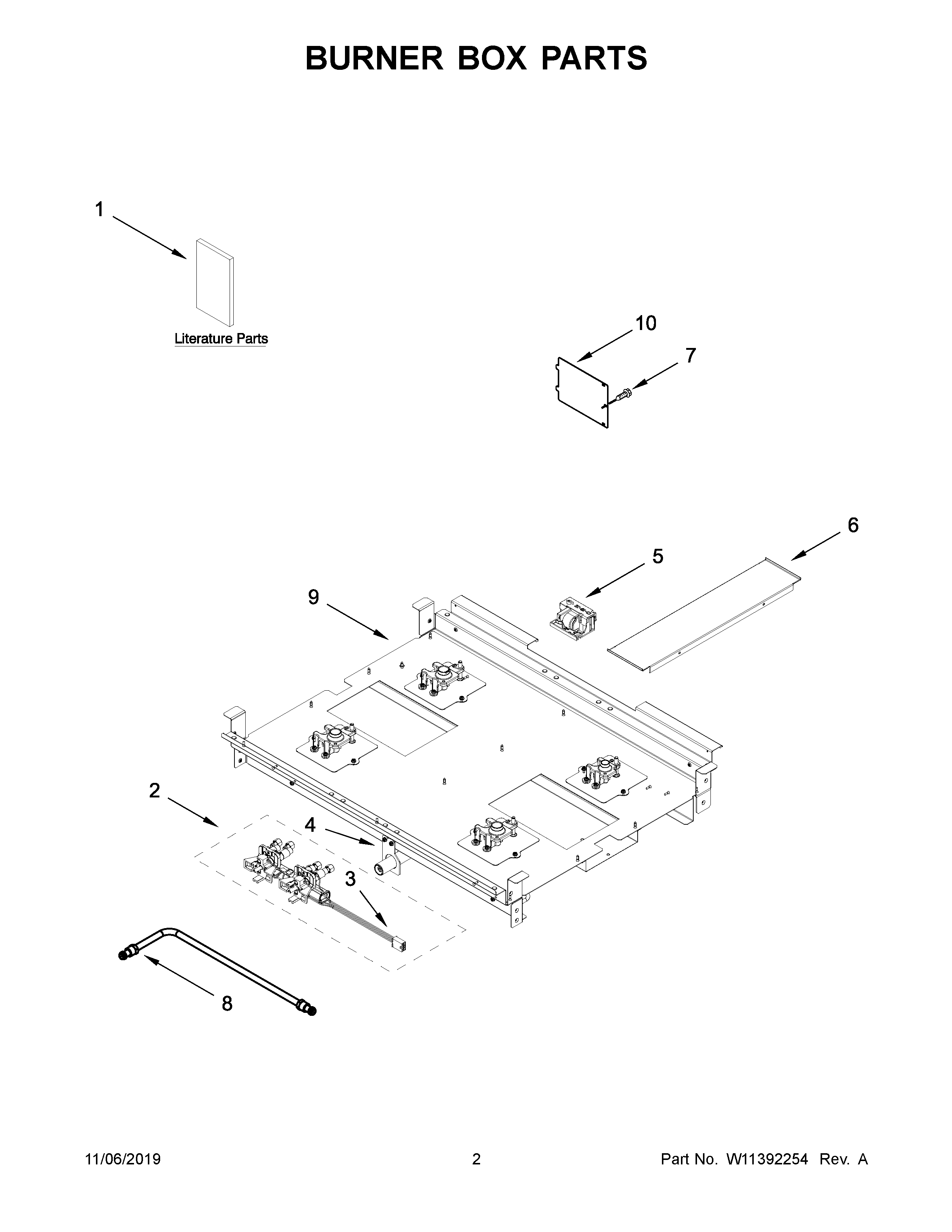

02 - BURNER BOX PARTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W11177370 | GUIDE, USE AND CARE | $0.00 | |||
| 1A | W11177374 | INSTRUCTIONS, INSTALLATION | $0.00 | |||
| 1B | W11184759 | GUIDE, INTERNET CONNECTIVITY | $0.00 | |||
| 1C | W11202388 | DIAGRAM, WIRING | $0.00 | |||
| 1D | W11202292 | SHEET, TECH | $0.00 | |||
| 1E | W11364680 | GUIDE, QUICK START | $0.00 | |||
| 2 | W10892994 | MANIFOLD | W11378578 | $244.05 | ||
| 2A | W10892997 | MANIFOLD | W11378579 | $244.05 | ||
| 3 | W10903728 | HARNESS,WIRE | W11344433 | $140.04 | ||
| 4 | W11121194 | BRKT-MNTG | W11320153 | $59.61 | ||
| 5 | W11121317 | SPARK MODULE | W11319687 | $240.37 | ||
| 6 | W11121361 | COOKTOP | $385.70 | |||
| 7 | 7101P426-60 | SCREW | WP90767 | $6.30 | ||
| 8 | W10892281 | TUBING-GAS | W11378580 | $133.57 | ||
| 8A | W10892292 | TUBING-GAS | W11378581 | $133.57 | ||
| 9 | N/P | BOX, BURNER (NOT SERVICED) | $0.00 | |||
| 10 | W10115843 | COVR-ACESS | $8.78 | |||
| NI | N/P | FOLLOWING PARTS NOT ILLUSTRATED | $0.00 | |||
| NI | W11200309 | HARNS-WIRE | $165.55 | |||
| NI | W11200328 | HARNS-WIRE | $140.04 | |||
| NI | W10780278 | HARNS-WIRE | $68.84 | |||
| NI | W11200325 | HARNS-WIRE | $82.50 | |||
| NI | W11242785 | HARNS-WIRE | W11317791 | $82.50 | ||
| NI | W10624584 | POWER CORD | $146.47 | |||
| NI | 4450800 | SCREW | $12.16 | |||
| NI | W10253333 | ANCHOR TIP | W11544575 | $39.05 | ||
| NI | 7101P485-60 | ANCHOR-TIP | WP7101P485-60 | $29.67 | ||
| NI | W11238042 | CONVERSION KIT | W11502161 | $53.77 | ||
| NI | W11311196 | HARNS-WIRE | W11446236 | $14.70 | ||
| NI | W11311197 | HARNS-WIRE | W11446239 | $17.22 |
*The price can change whitout warning
