Brand: Whirlpool

Model: KFGC506JSS00 - RANGE/OVEN, GAS, COMMERCIAL-STYLE, 36 INCH

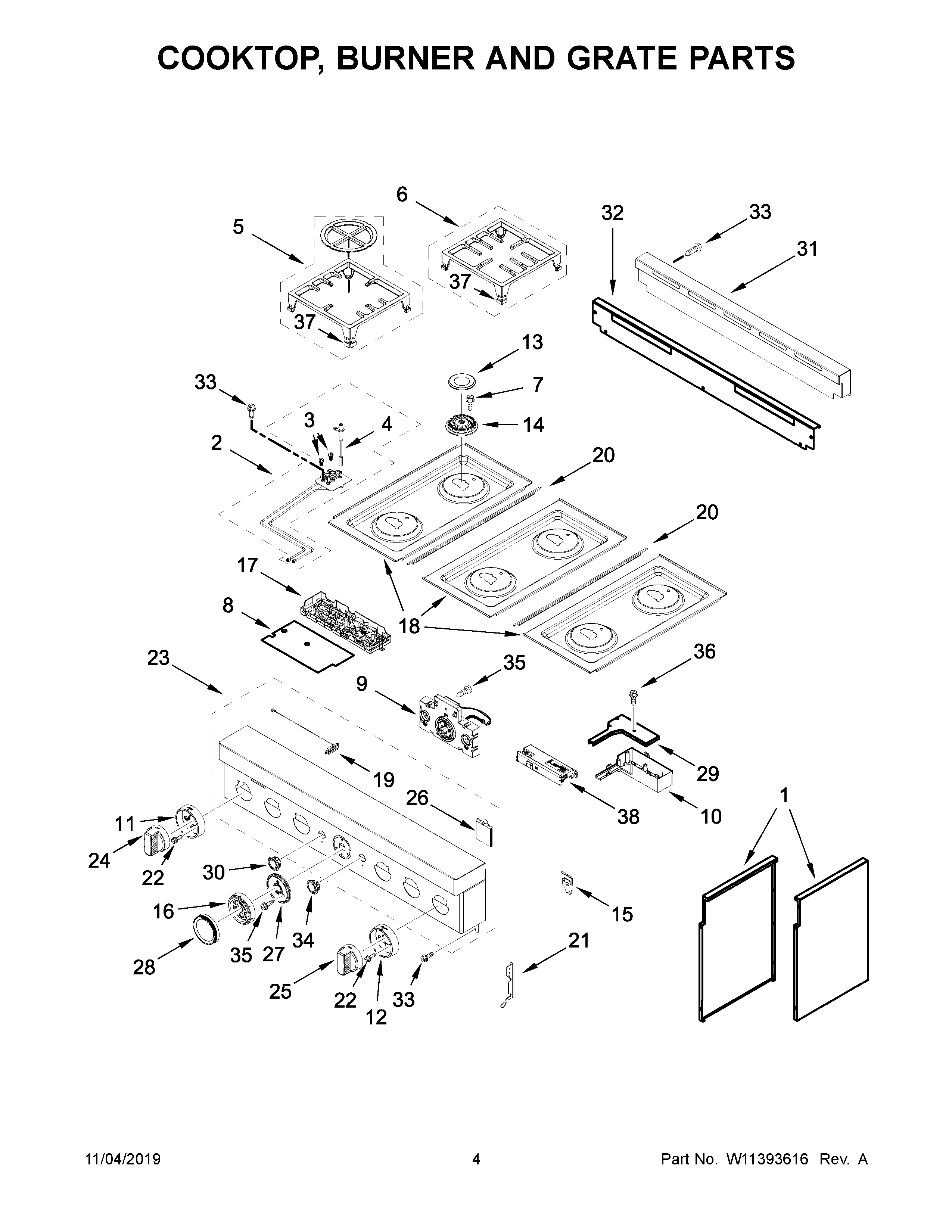

03 - COOKTOP, BURNER AND GRATE PARTS

KFGC506JSS00
Plan number Part Number Description Replacement Price
1 W11106881 SIDE-COMPT W11333179   $294.17
1A W11106880 SIDE-COMPT W11333303   $294.17
2 W10892774 HOLDER,ORIFICE W11378584   $82.31
2A W10892492 HOLDER-ORF W11384764   $82.31
2B W11159467 HOLDER-ORF W11384766   $82.31
2C W10892725 HOLDER-ORF W11384767   $82.31
2D W10892731 HOLDER-ORF W11334712   $82.31
2E W10892477 HOLDER-ORF W11384765   $82.31
3 W10892422 SPUD-ORFCE W11643164   $64.89
3A W10892419 SPUD-ORFCE W11672510   $68.47
3B W10892435 SPUD-ORFCE W11661909   $68.47
3C W10892438 SPUD-ORFCE   $66.75
4 W11238757 IGNITOR-SURFACE W11573760   $15.82
4A W10892340 IGNITOR-SURF W11628654   $37.35
4B W11114379 IGNITOR-SURF   $48.71
5 W11291183 GRATE,BURNER W11380124   $138.85
6 W11291179 GRATE,BURNER W11380128   $138.85
7 W11323261 SCREW W11643628   $11.19
7A W11323309 SCREW W11678580   $11.19
8 W11281269 INSULATOR W11320149   $91.11
9 W11095716 CNTRL-ELEC W11394661   $459.82
10 W11205795 COVER-CNTL W11320411   $47.22
11 W10883433 BEZEL-KNOB W11380145   $44.13
12 W10881642 BEZEL-KNOB W11380146   $44.13
13 W11121390 CAP-BURNER W11344538   $119.87
14 W10891746 BURNER HEAD W11344539   $96.26
14A W10891974 BURNER HEAD W11344742   $96.26
14B W10891978 BURNR-HEAD W11344746   $96.26
15 W11036559 CLIP W11318207   $9.59
16 W11264992 KNOB W11548479   $98.70
17 W11100284 CONTROL BOARD W11394663   $459.82
18 W11038235 COOKTOP W11344755   $126.15
18A W11038257 COOKTOP W11344757   $126.15
18B W11038248 COOKTOP W11344761   $126.15
19 W11130078 ANTENNA W11318855   $165.55
20 W10271524 TRIM-TOP   $169.81
21 W10130760 BRKT-MNTG   $57.97
21A W10130759 BRKT-MNTG   $57.97
22 W10919387 SCREW W11674763   $11.19
23 W10877950 PANL-CNTRL W11385637   $358.72
24 W10912166 KNOB W11380561   $55.62
25 W10883172 KNOB W11380562   $55.62
26 W10896366 LIGHT-IND   $82.11
27 W10913810 BEZEL-KNOB W11548484   $40.19
28 W11249669 KNOB W11385692   $103.29
29 W11205794 COVER-CNTL W11320410   $47.22
30 W11241511 BUTTN-PUSH   $32.54
31 W11183086 TRIM-TOP W11476245   $245.08
32 W10323250 TRIM,TOP   $113.36
33 7101P426-60 SCREW WP90767   $6.30
34 W11241510 BUTTON-PUSH   $34.20
35 3400814 SCREW WP3400814   $3.57
36 7101P624-60 SCREW W10709795   $9.13
37 W11042504 PAD-GRATE W11550692   $9.30
38 W11110768 CONTROL BOARD W11234290   $135.77
*The price can change whitout warning
