Brand: Whirlpool

Model: KFGC500JMH00 - RANGE/OVEN, GAS, COMMERCIAL-STYLE, 30 INCH

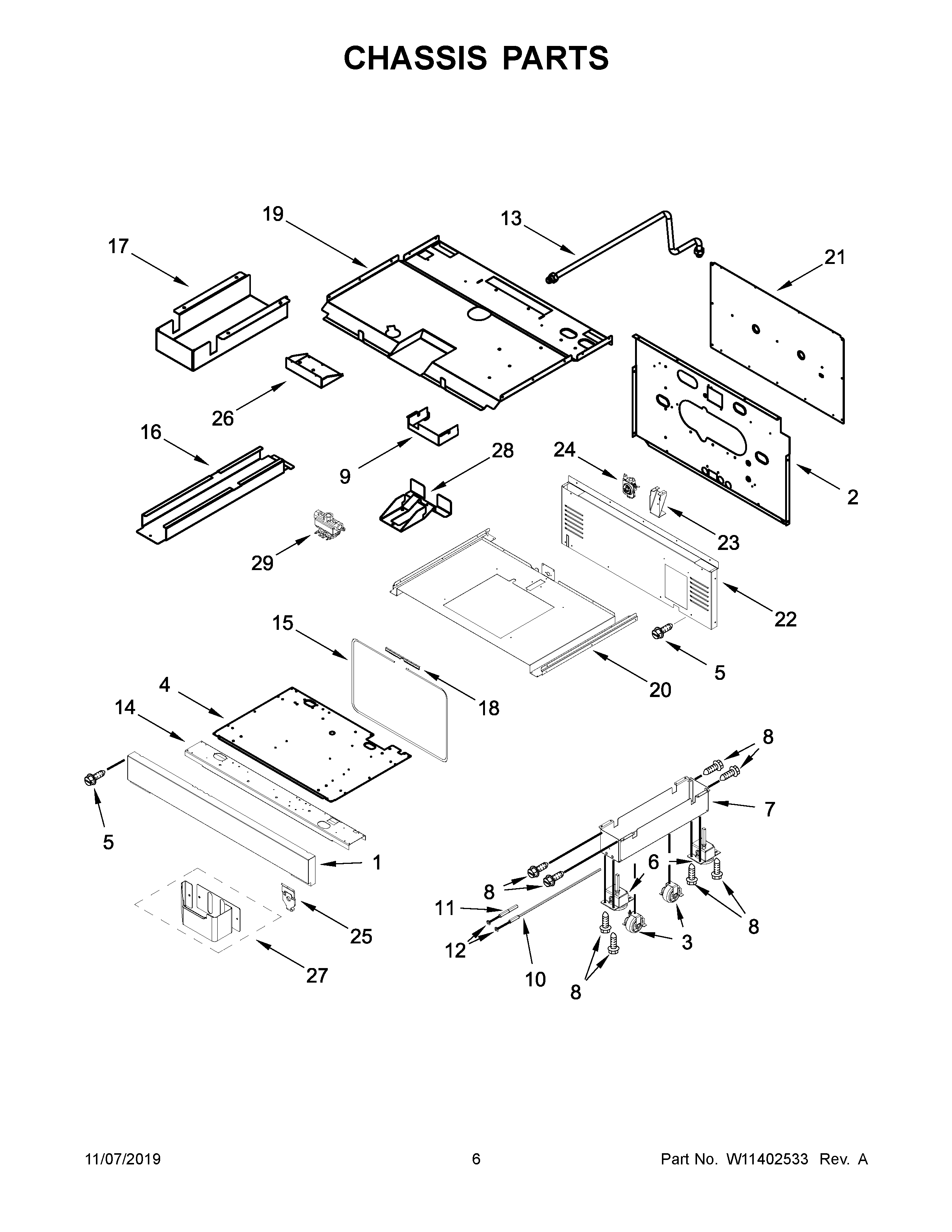

04 - CHASSIS PARTS

KFGC500JMH00
Plan number Part Number Description Replacement Price
1 W11394776 PLATE-COVR W11386103   $236.80
2 W11324989 COVER-REAR   $97.59
3 W10138054 ROLLER-CAB WPW10138054   $34.87
4 W11109583 DUCT   $123.41
5 7101P426-60 SCREW WP90767   $6.30
6 9760860 FOOT-LEVEL W10859931   $83.05
7 W10908710 BRKT-MNTG   $102.87
8 4449743 MTR SC LRCA BLK WP4449743   $6.34
9 W11369237 COVER-CNTL   $63.22
10 W10115869 SHAFT   $78.47
11 W10115793 SHAFT   $56.06
12 489504 RING-E   $5.68
13 W11181648 TUBING-GAS W11364214   $78.90
14 W11087491 SUPPORT   $80.23
15 W11115328 GASKET-DOOR W11675844   $50.41
16 W11050145 DUCT-AIR   $123.41
17 W11368831 CHANNEL   $57.05
18 W11362015 RETAINER   $120.76
19 W11324986 TOP-OVEN   $127.83
20 W11040802 BOTTM-MAIN   $149.58
21 W11103334 COVER-REAR   $110.32
22 W11034134 COVER-REAR   $71.09
23 W11096823 BRKT-MNTG W11320155   $59.61
24 W10896959 REGULATOR W11193822   $229.92
25 W11036559 CLIP W11318207   $9.59
26 W11106341 DRAWER W11320147   $88.37
27 W11199181 COVER-FOOT   $59.18
27A W11199178 COVER-FOOT   $59.18
28 W11190223 BRACKET   $59.61
29 W10145680 VALVE,GAS W11239228   $260.34
*The price can change whitout warning
