Brand: Whirlpool
Model: 5KSM7990XBSL0 - SMALL APPLIANCE, STAND MIXER, 7 QT

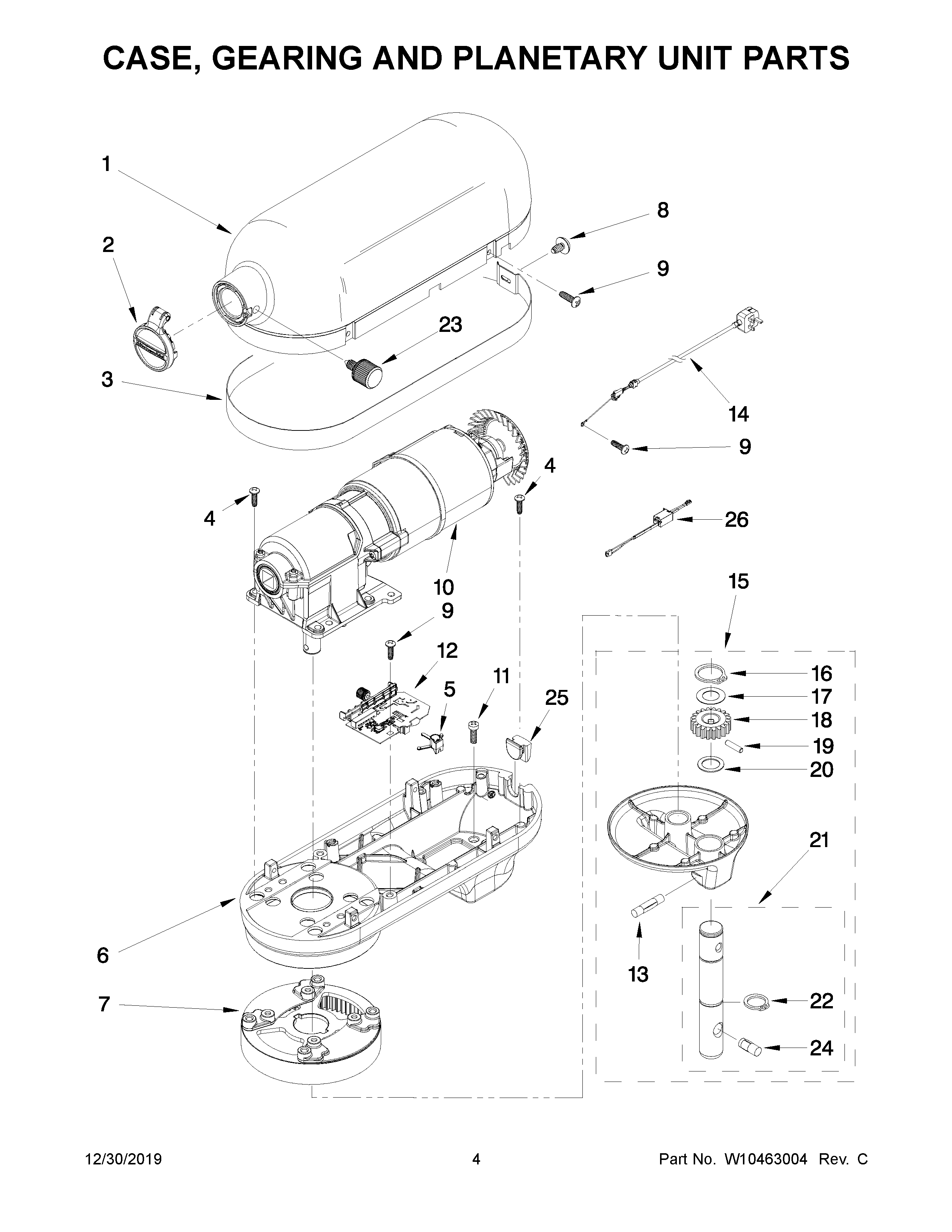

03 - CASE, GEARING AND PLANETARY UNIT PARTS
- 01 - COVER SHEET
- 02 - COLOR VARIATION PARTS
- 03 - CASE, GEARING AND PLANETARY UNIT PARTS
- 04 - BASE AND PEDESTAL UNIT PARTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | N/P | GEARCASE MOTOR HOUSING (REFER TO COLOR VARIATION PARTS PAGE) | $0.00 | |||
| 2 | W10395280 | CAP-HUB | WPW10395280 | $21.49 | ||
| 3 | N/P | BAND, TRIM (REFER TO COLOR VARIATION PARTS PAGE) | $0.00 | |||
| 4 | W10351843 | SCREW | W10914506 | $3.41 | ||
| 5 | W10305968 | HOLDER | WPW10305968 | $3.20 | ||
| 6 | N/P | LOWER GEARCASE (REFER TO COLOR VARIATION PARTS PAGE) | $0.00 | |||
| 7 | W10234493 | GEAR | WPW10234493 | $31.43 | ||
| 8 | 3400617 | SCREW | W10853069 | $3.20 | ||
| 9 | 3400814 | SCREW | WP3400814 | $3.57 | ||
| 10 | W10517939 | MOTOR | W11097334 | $172.16 | ||
| 11 | 3400200 | SCREW | W10913677 | $3.41 | ||
| 12 | W11178567 | SPEED-CNTL | W11188058 | $120.01 | ||
| 13 | W10234531 | GROOVE PIN | WPW10234531 | $3.57 | ||
| 14 | W10474919 | CORD-POWER | W10419451 | $37.56 | ||
| 15 | N/P | PLANETARY ASSEMBLY (REFER TO COLOR VARIATION PARTS PAGE) | $0.00 | |||
| 16 | 9703438 | RING-RETAINER | WP9703438 | $3.20 | ||
| 17 | 9706090 | WASHER | WP9706090 | $3.57 | ||
| 18 | W10234643 | GEAR | WPW10234643 | $3.92 | ||
| 19 | 9707223 | PIN-DOWEL | WP9707223 | $3.41 | ||
| 20 | 8533910 | WASHER | W10854966 | $3.57 | ||
| 21 | 9708191 | SHAFT-AGIT | WP9708191 | $12.24 | ||
| 22 | 9703680 | RING,RETAINING | WP9703680 | $3.41 | ||
| 23 | W10360791 | SCREW | WPW10360791 | $6.87 | ||
| 24 | 9704677 | PIN, GROOVE | WP9704677, W11664709 | $0.00 | ||
| 25 | W10417201 | CLIP | $19.60 | |||
| 26 | W10703127 | FILTER-RF | W11678212 | $55.62 |
*The price can change whitout warning
