Brand: Maytag

Model: MFC2062FEZ04 - REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT

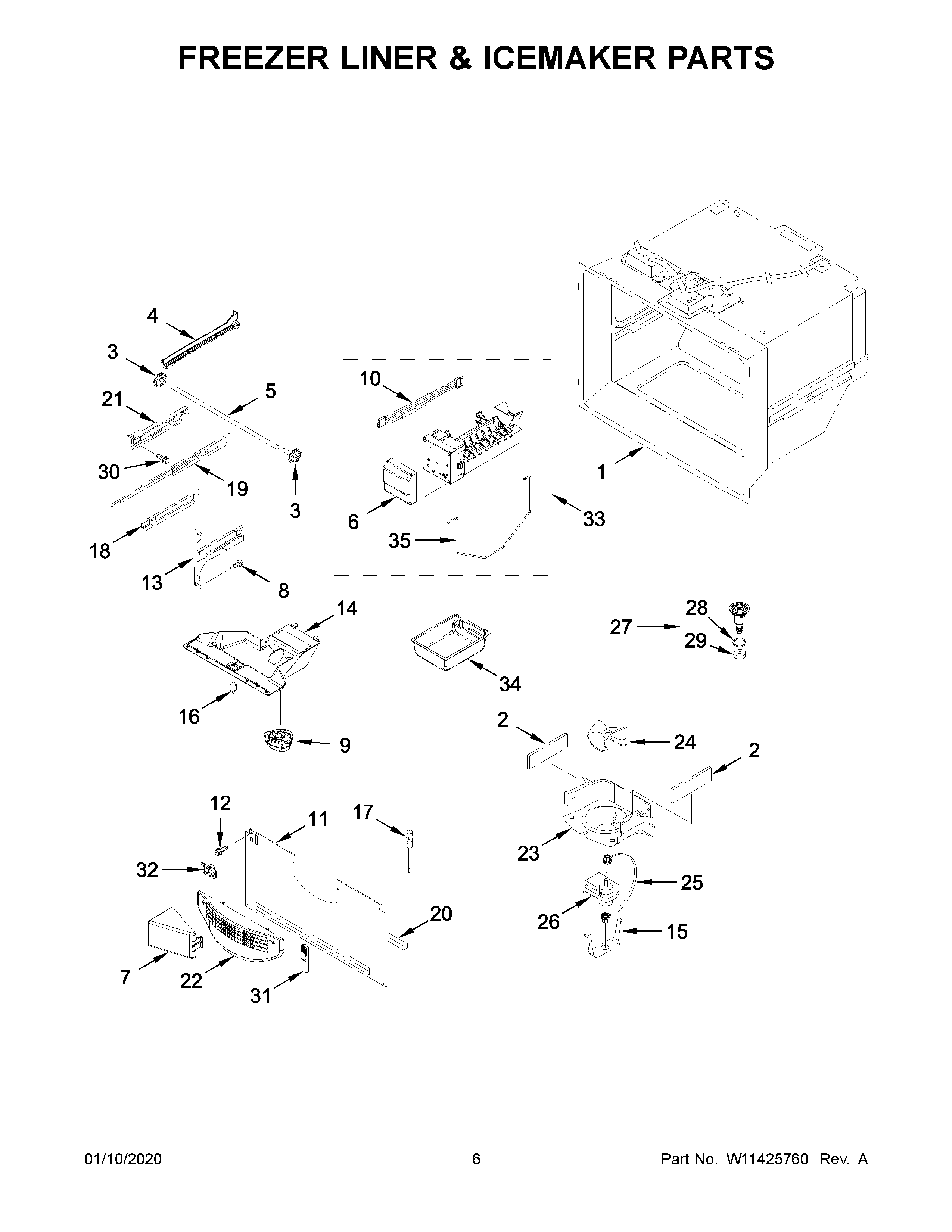

04 - FREEZER LINER & ICEMAKER PARTS

MFC2062FEZ04
Plan number Part Number Description Replacement Price
1 N/P LINER (NOT A SEVICEABLE PART)   $0.00
2 A3189392 GASKET W10856123   $6.15
3 12002497 GEAR   $19.17
4 W10516605 RAIL   $87.33
4A W10516604 RAIL   $87.32
5 W10802332 SHAFT W11028221   $25.90
6 W10289690 COVER-FRNT WPW10289690   $6.32
7 W10157765 DEFLECTOR   $68.70
8 12990521 SCREW WP98165   $6.50
9 W11251749 MODULE W11602886   $30.10
10 W10793621 HARNS-WIRE W10886932   $112.11
11 W10308416 COVER, EVAPORATOR W11727809   $0.00
12 12990511 SCREW 67006425   $6.50
13 W10330994 BRACKET WPW10330994   $120.29
13A W10330995 BRACKET WPW10330995   $247.62
14 W10277025 HOUSING WPW10277025   $96.15
15 13058002 CLIP   $12.06
16 W10847849 LIGHT-SWITCH W11396033   $29.43
17 12791419SP THERMISTOR W10316760   $75.69
18 W10281115 BRACKET WPW10281115   $58.56
18A W10281116 BRACKET WPW10281116   $58.52
19 13055901 SLIDE, DRAWER WP13055901, W11658403   $0.00
20 A3189396 GASKET W11159728   $22.80
21 W10284692 BRACKET WPW10284692   $90.22
21A W10284693 BRACKET WPW10284693   $90.10
22 13024803 GRILLE WPW10175909   $69.03
23 13057901 SHROUD WPW10167023   $74.37
24 2169142 BLADE-FAN WP2169142   $46.77
25 W10150583 GROMMET W11690160   $5.88
26 13062901 MOTOR-ECM EVAP W11024089   $83.65
27 W10662407 FUNNEL W10815413   $37.32
28 M0500703 SEAL- O RI WPM0500703   $8.54
29 B8381501 GASKET- DR WPB8381501   $5.99
30 12990501 SCREW WP489474   $6.64
31 12815301 COVER, FREEZER THERMISTOR WP67003924   $6.27
32 W11261524 BRACKET W11448709   $20.58
33 W10793298 ICE MAKER W10884390   $122.07
34 W10171529N ICE PAN WPW10171529   $134.97
35 W11260635 ARM-SHUT W11285509   $67.40
*The price can change whitout warning
