Brand: Whirlpool

Model: YWFE515S0JB0 - RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH

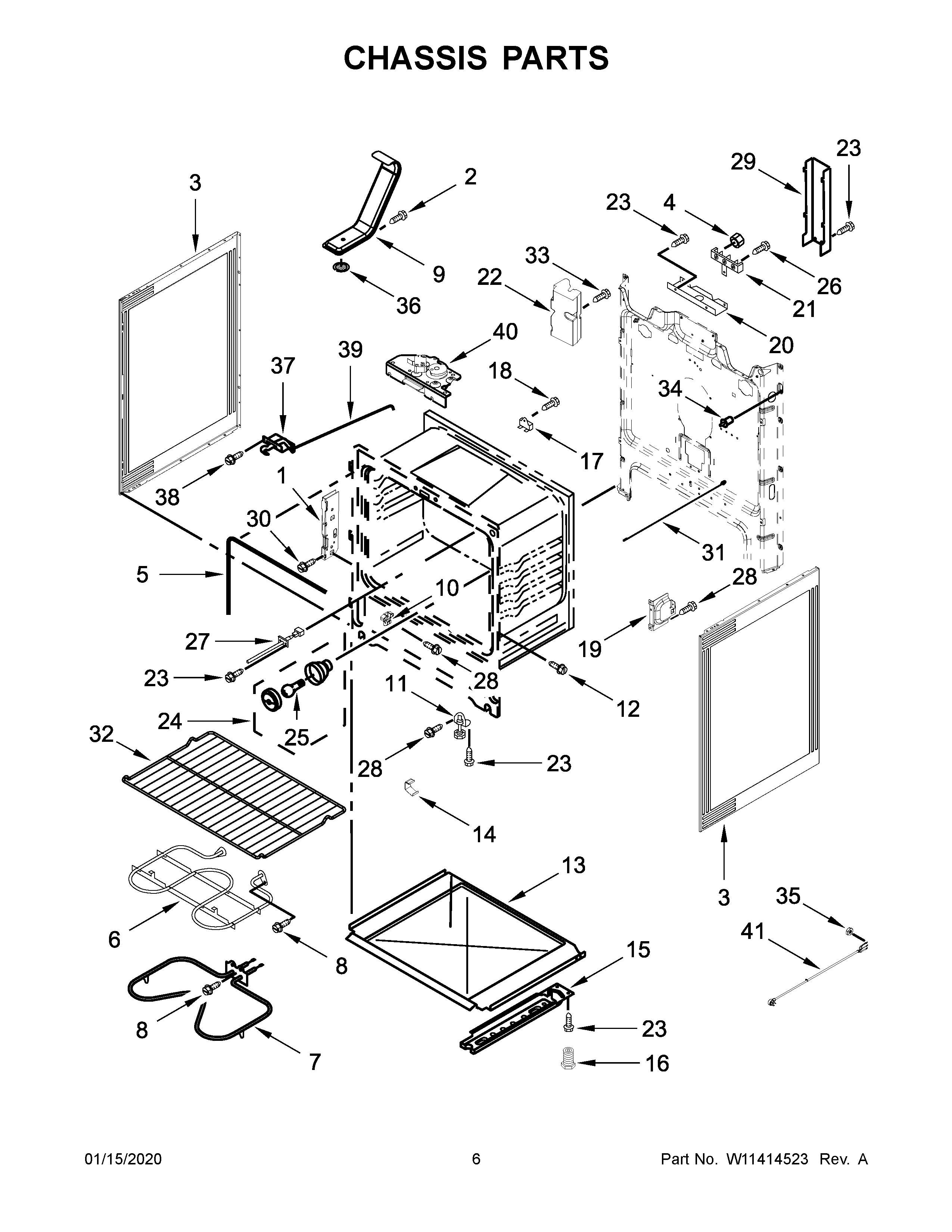

04 - CHASSIS PARTS

YWFE515S0JB0
Plan number Part Number Description Replacement Price
1 W10289077 HINGE-RECEIVER W10647259   $6.32
2 3196154 SCREW WP3196154   $0.00
3 W10162245 ASM-SIDE PNL,INSUL.,BLK SERV WPW10162245   $140.01
3A W10575396 PANEL-SIDE WPW10575396   $140.80
4 3400029 NUT WP3400029   $6.06
5 W10658354 SEAL, DOOR WPW10658354, W11542153     Call to order
6 9757340 ELEMENT-BROIL W10856603   $139.20
7 W11111743 BAKE ELEMENT W11182108   $121.74
8 3196174 SCREW WP3196174   $6.45
9 W10134285 TUBE, VENT WPW10134285   $0.00
10 W10674705 GLIDE,DRAWER W10807823   $16.44
11 W10341186 FOOT-LEVEL WPW10341186   $25.57
12 W10067840 SCREW WPW10067840   $6.32
13 8054068 RETAINER WP8054068   $69.45
14 W10137382 CLIP   $37.20
15 W10390008 ASM BASE RAIL - CLIP,RIGHT WPW10306546   $102.17
15A W10390007 ASM BASE RAIL - CLIP,RIGHT WPW10306546   $102.17
16 W10058460 FOOT - LEVEL WPW10058460   $4.61
17 3196548 FUSE THERMAL WP3196548   $38.08
18 3196172 SCREW   $11.46
19 W10404688 BRACKET   $14.01
20 3186034 BRACKET, SERVICE W11728255   $0.00
21 W10246624 BLOCK-TERM WP8203546   $23.61
22 W10910404 ANCHOR-TIP W11135752   $105.17
23 3196178 SCREW W11233072   $12.16
24 W11175594 SOCKET ASSY W11594027   $61.17
25 W10571723 BULB-LIGHT WPW10571723   $55.22
26 3400016 SCREW WP3400016   $6.65
27 W10181986 SENSOR WPW10181986   $116.55
28 3196169 SCREW WP3196557   $6.31
29 W10326122 COVER, TERMINAL BLOCK WPW10326122   $100.35
30 W10031780 SCREW W10777162   $6.89
31 W11370462 ROD-DOOR   $51.83
32 W10268578 RACK, OVEN W11520287   $42.29
33 W11034869 SCREW-TORX W11135756   $12.16
34 W10627802 INTERRUPTEUR DE PORTE WP9757262   $122.85
35 7103P027-60 NUT 10-32 UNF .375 HEX WP7103P027-60   $5.87
36 W11092984 SCREEN W11268772   $167.10
37 9761013 DOOR-LATCH WP9761013   $198.07
38 3196560 SCREW W11169708   $12.72
39 W10078380 ROD,LATCH   $70.35
40 W10107840 DOOR-LATCH WPW10107840   $99.71
41 W10624591 CORD, POWER W11229685, W11226497   $0.00
NI N/P FOLLOWING PARTS NOT ILLUSTRATED   $0.00
NI W10774939 INSULATION W11161831   $81.13
NI W11127325 INSULATION W11311894   $77.25
NI W10333344 INSULATION W11684918   $25.90
*The price can change whitout warning
