Brand: Whirlpool
Model: YWED5100HC0 - LAUNDRY, RESIDENTIAL, ELECTRIC DRYER

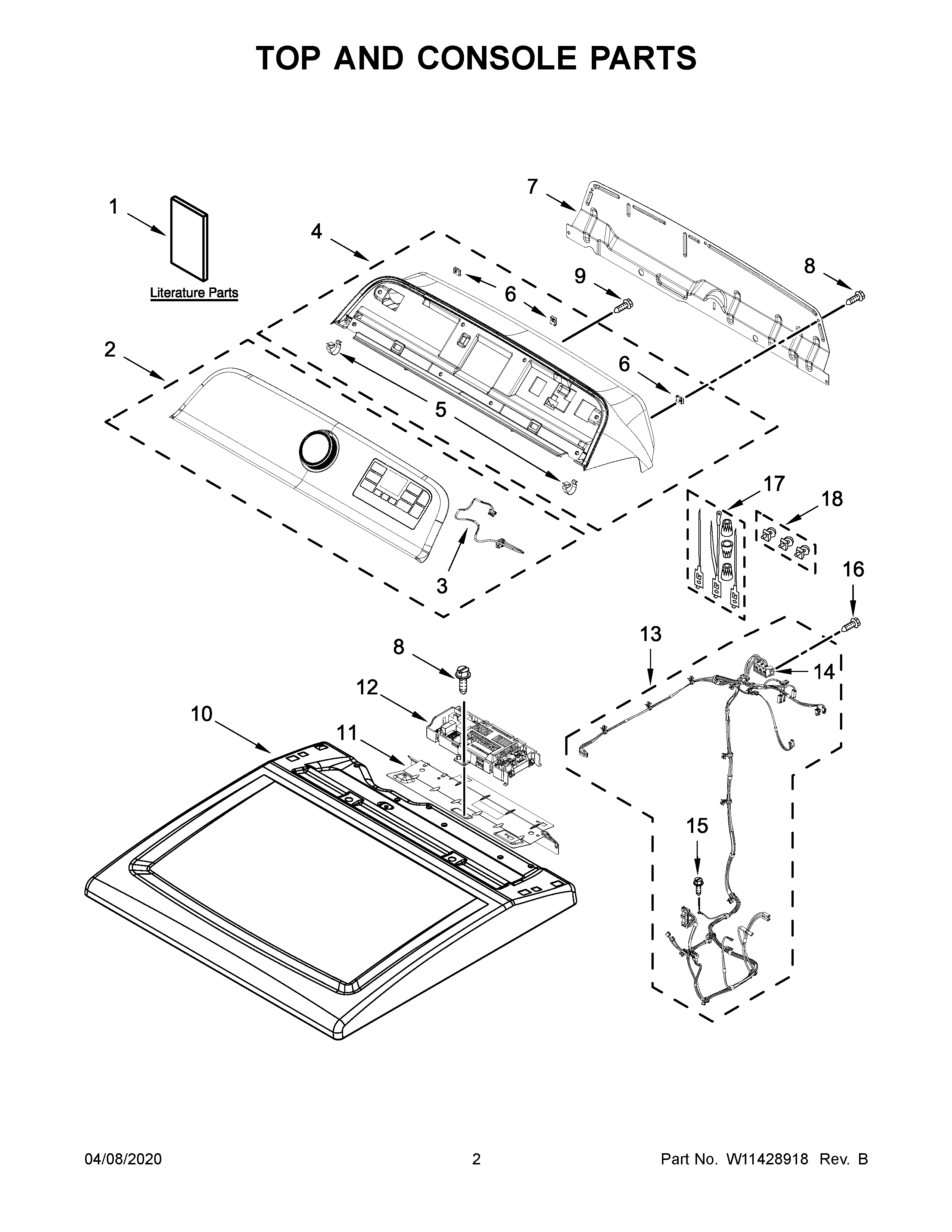

02 - TOP AND CONSOLE PARTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W11268643 | INSTALLATION INSTRUCTIONS | $0.00 | |||
| 1A | W11181842 | WIRING DIAGRAM | $0.00 | |||
| 1B | W11175247 | QUICK START GUIDE | $0.00 | |||
| 2 | W11164032 | CONTROL PANEL | W11419056 | $470.76 | ||
| 3 | W11164312 | HARNESS,WIRE | $124.22 | |||
| 4 | W11178519 | CONSOLE | W11401363 | $298.73 | ||
| 4A | W11178520 | CONSOLE | W11401366 | $298.73 | ||
| 5 | 8312709 | CLIP | WP8312709 | $17.47 | ||
| 6 | W10298336 | NUT | W11213336 | $6.39 | ||
| 8 | 3390647 | SCREW | WP488729 | $6.39 | ||
| 9 | 9740848 | SCREW | WP9740848 | $5.09 | ||
| 10 | W10260246 | TOP (WHITE) | WPW10260246, W11641121 | Call to order | ||
| 10A | W10458665 | TOP | W11641122 | $184.06 | ||
| 11 | W10896068 | BRACKET | W11431865 | $40.26 | ||
| 12 | W11400356 | CONTROL BOARD | W11413569 | $411.66 | ||
| 13 | W11164045 | HARNS-WIRE | W11556949 | $119.17 | ||
| 14 | 3397659 | TERMINAL BLOCK | WP3397659 | $20.06 | ||
| 15 | 359625 | SCREW | W11693756 | $11.19 | ||
| 16 | 3393008 | SCREW | WP308685 | $6.11 | ||
| 17 | 279318 | TERMINAL | $84.81 | |||
| 18 | 279393 | SCREW | $38.00 | |||
| 1A | W11175222 | TECH SHEET | $0.00 |
*The price can change whitout warning
