Brand: Electrolux

Model: FGET2766UFB - WALL OVEN, ELECTRIC, DOUBLE, 27 INCH

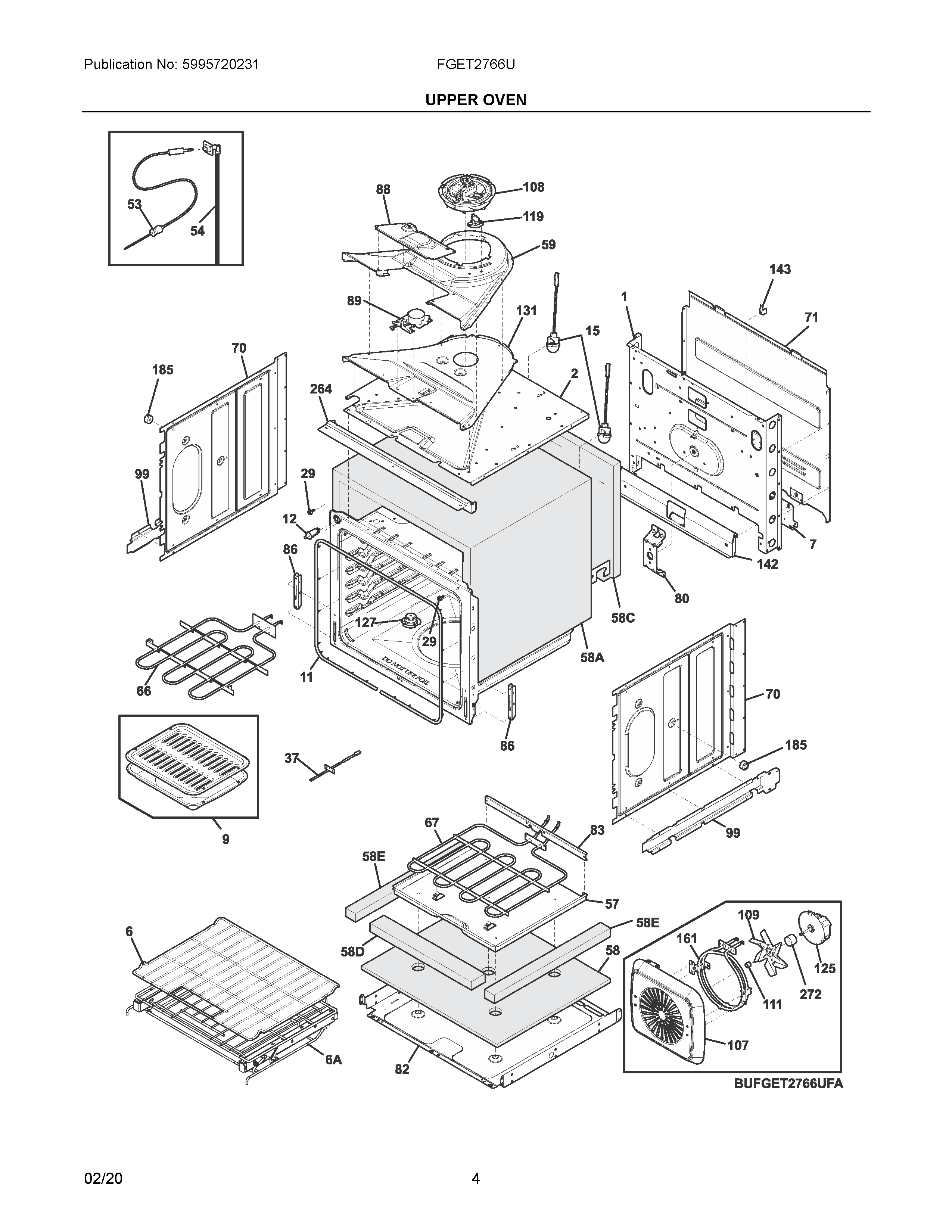

03 - UPPER OVEN

FGET2766UFB
Plan number Part Number Description Replacement Price
1 5304506958 PANEL,MAIN BACK   $90.70
2 139027804 SHIELD,INSULATION,TOP   $82.00
6 5304514984 RACK,OVEN,W/HANDLE   $65.30
6A 5304518865 RACK ASSEMBLY,GLIDING,NICKEL   $232.25
7 5304506960 PANEL,SERVICE,MAIN BACK   $62.40
9 5304494997 BROILER PAN & INSERT KIT   $76.20
11 807545501 SEAL,OVEN DOOR,GRAY   $76.20
12 318394802 SWITCH,OVEN LIGHT,DOOR FRAME 808136601   $40.65
15 139009000 ROUND HALOGEN LAMP ASSY 5304528790   $21.80
NIA 318946500 HALOGEN LAMP G9 25W 120V   $54.45
29 316517600 SPACER,OVEN DOOR   $12.35
37 5304504897 OVEN TEMP PROBE   $43.55
53 5304516490 PROBE, MEAT, BLACK 5304503737   $0.00
54 5304514886 RECEPTACLE ASSY,MEAT PROBE 139017203   $156.75
57 5304506949 BOX,BAKE ELEMENT   $110.30
58 5304506952 INSULATION,BAKE ELEMENT,LOWER   $70.40
58A 139001701 INSULATION,OVEN WRAPPER,27"   $62.40
58C 5304506954 INSULATION,OVEN,BACK   $36.30
58D 5304506965 INSULATION,BAKE ELEMENT,FRONT   $11.60
58E 5304506966 INSULATION,BAKE ELEMENT,SIDE   $13.05
59 139027600 DUCT   $87.80
66 5304514924 ELEMENT,BROIL,6 PASS,4000W   $116.85
67 5304506946 ELEMENT,HIDDEN BAKE,2500W   $114.65
70 139000601 SHIELD,INSULATION,SIDES,(2)   $68.95
71 139022000 SHIELD,REAR WIRE,MAIN BACK   $63.15
80 139021101 BRACKET,SUPPORT,CHASSIS/FAN   $15.25
82 5304506947 SHIELD,INSULATION,LOWER   $98.00
83 5304506951 SHIELD,BAKE ELEMENT,REAR   $72.60
86 318561100 RECEPTACLE,HINGE, - Require 2   $20.35
NIA 316418900 VIS,SIMS LP,#8-32 X 5/16"   $14.50
88 5304506964 COVER,LATCH MOTOR   $24.70
89 139021303 MOTOR,LATCH ASSY.,2 TERMINALS 5304528835   $72.60
NIA 5304514915 HARNESS,WIRING,MDL,UPPER   $111.75
99 139005201 BRACKET,SUPPORT,SIDE,(2)   $16.70
107 139013903 COVER,CONVECTION FAN   $43.55
108 807123003 MOTOR ASSEMBLY,FAN 5304529887   $173.45
109 318398302 FAN WHEEL   $24.70
111 316136600 ECROU   $19.60
119 318578505 THERMOSTAT,SAFETY,115C   $55.90
125 139008504 MOTOR,CONVECTION,2 SPEED   $217.00
127 139042600 TUBE ASSEMBLY,VENT,W/CATALYST   $44.25
131 139027700 DUCT   $74.75
142 5304506953 SHEILD,AIR DEFLECTOR,BACK   $39.90
143 318172904 SUPPORT,WIRE   $2.90
161 139006500 ELEMENT,CONVECTION,2500W   $93.60
185 318531800 SPACER - OVEN SHIELD   $13.05
264 139003501 TRIM,VENT,BLACK,FRONT   $25.40
272 139021700 TUBE,CONVECTION FAN   $18.15
NI 5304514908 HARNESS,CONVECTION   $55.15
NI 316021105 SCREW, HEX   $11.60
NI 316021109 SCREW   $14.50
NI 316021110 SCREW 316021109   $14.50
NI 807597603 SCREW,SELF TAPPING,8-18 X 11/3   $9.45
NI 5303289910 SCREW,8A,1",(7),POWER BOARD MT   $5.80
*The price can change whitout warning
