Brand: Whirlpool

Model: WRF767SDHZ01 - REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT

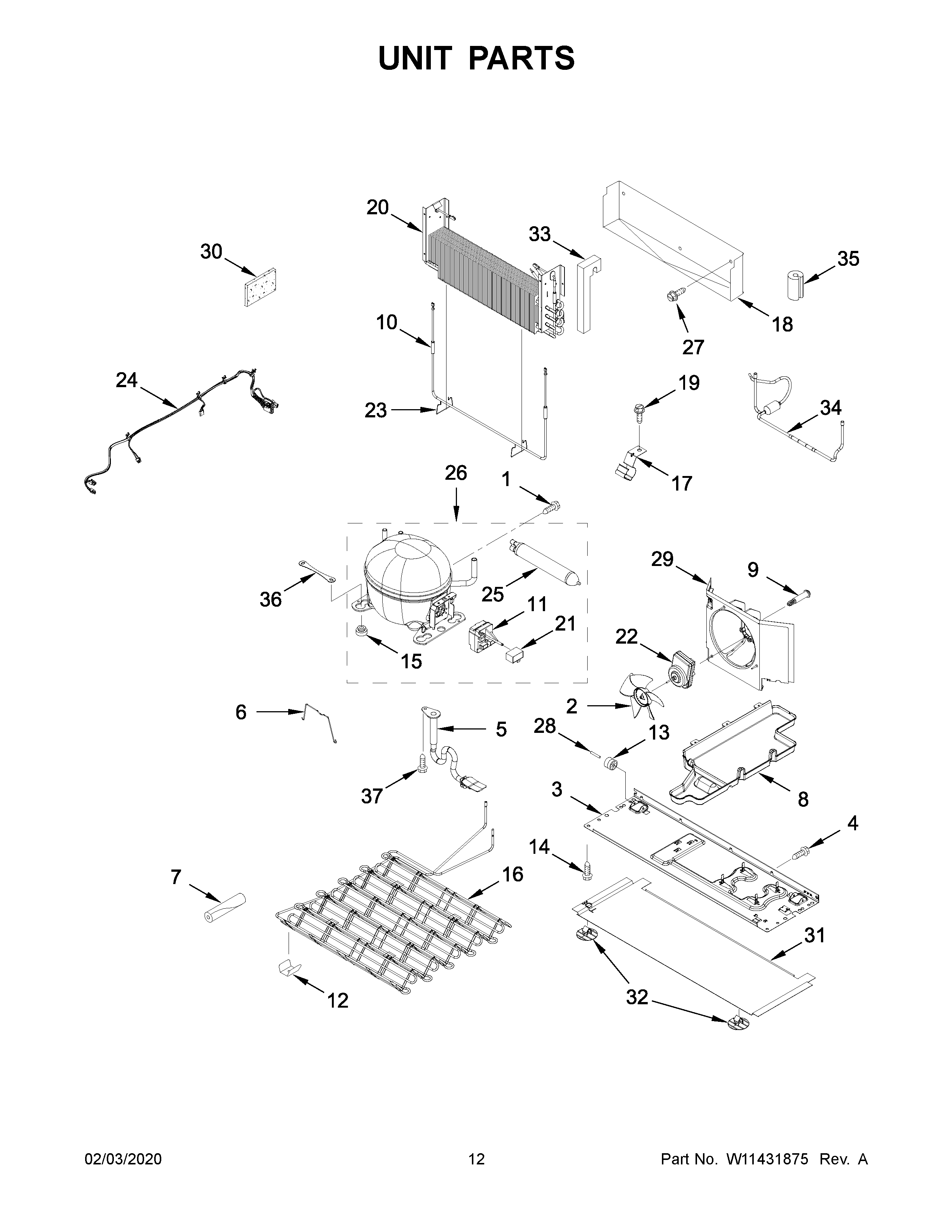

07 - UNIT PARTS

WRF767SDHZ01
Plan number Part Number Description Replacement Price
1 W10141625 SCREW WPW10141625   $19.07
2 2188935 BLADE-FAN WP2188935   $71.37
3 W10570074 PLATE   $109.30
4 12990511 SCREW 67006425   $6.50
5 W10776917 EXTENSION W11712703   $32.19
6 W10650382 CLIP   $20.36
7 W10303521 SLEEVE W11661094   $17.63
8 W10660727 TRAY-EVAP W11225840   $114.02
9 W10622701 SCREW W10829281   $9.36
10 12729128 HEATER WP12729128   $130.89
11 W10796752 START DEVICE W10873801   $128.87
12 W10248621 CLIP W10683556   $12.85
13 12477102 ROLLER WP67005149   $20.16
14 12992101 SCREW   $11.19
15 10835903 GROMMET WPW10169124   $5.83
16 W10627646 CONDENSER W11673437   $156.74
17 W10281329 CLAMP   $11.19
18 W10342573 DRIP TRAY   $33.03
19 W10141645 SCREW WPW10141645   $6.28
20 W10248589 EVAPORATOR WPW10608485   $317.08
21 W10350564 CAPACITOR WPW10350564   $94.54
22 W10909387 MOTOR,CONDENSER W11127829   $218.83
23 10428101 CLIP W11673433   $109.19
24 W11161250 HARNS-WIRE   $108.85
25 W10177049 UV DRIER-TUBE WPW10143759   $25.87
26 W10391109 COMPRESSOR WPW10466675   $710.04
27 W10142294 SCREW W11544659   $11.19
28 12477202 AXLE,ROLLER 67006434   $6.27
29 W10406719 SHROUD WPW10406719   $57.43
30 2169104 INSULATION W11553819   $11.19
31 W10278140 COVER-UNIT   $75.21
32 W10815861 CLIP   $12.57
33 W10491355 GASKET   $18.81
34 W10463542 TUBE WPW10463542   $74.90
35 W10413009 DAMPENER W11715935   $10.50
36 W10236396 STRAP   $15.80
37 W10141518 SCREW   $7.53
NI N/P FOLLOWING PARTS NOT ILLUSTRATED   $0.00
NI 978025 VALVE WP978025   $79.00
NI 978026 VALVE   $94.63
NI 978027 VALVE   $96.52
NI 978029 VALVE, ACCESS (5/8")   $0.00
NI 978030 VALVE   $101.28
NI 876764 VALVE   $73.02
NI N/P REFRIGERANT CHARGE 5.25 OZ. (R-134A)   $0.00
*The price can change whitout warning
