Brand: Electrolux

Model: RVRF3361SS6 - REFRIGERATOR, FRENCH DOOR, BOTTOM FREEZER, W/DISPENSER

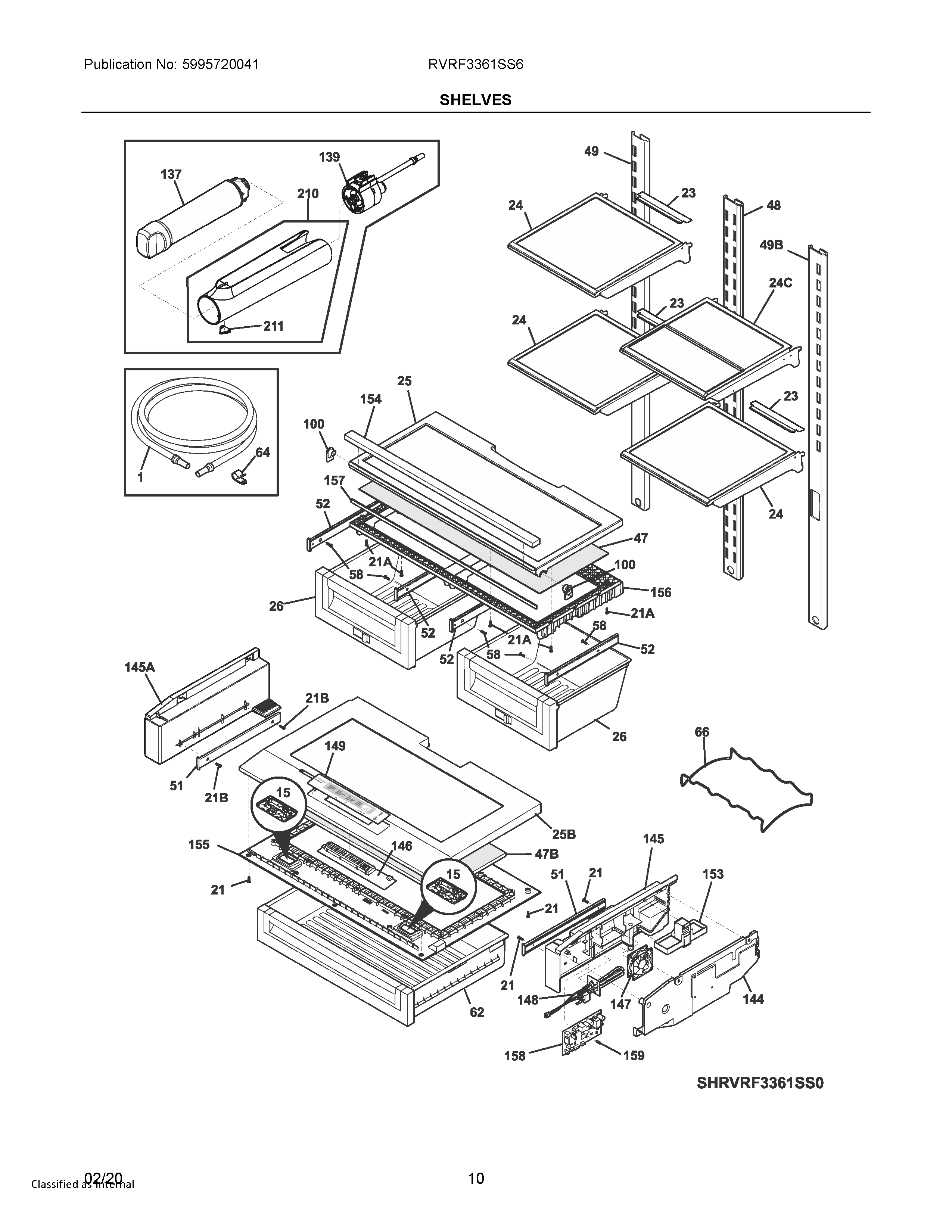

05 - SHELVES

RVRF3361SS6
Plan number Part Number Description Replacement Price
1 242220119 WATER TUBE,.75 X 97.5,NATURAL   $31.20
NIA 242200102 CLIP,TUBING,90 DEG ELBOW   $10.90
15 5304513664 S/A PUR-LED LIGHT, VEGA 6500K   $40.65
21 241953902 SCREW 8 18 X .380   $17.40
21A 241953901 SCREW,CONTROL MTG 5304453707   $15.25
21B 241953907 SCREW,#8-18   $13.05
23 5304501541 GASKET,SHELF,REAR,AIR FLOW   $16.70
24 242068723 SHELF,SLIDING 1/2 WID,CANTILEV   $153.85
NICA 5304501542 SEAL,AIR,HALF SHELF   $17.40
25 241802205 FRAME-CRISPER COVER,UPPER   $121.90
NIA 241695904 SCREW   $0.00
25B 5303918487 PTD COVER KIT,PAN   $199.55
26 241772809 PAN-CRISPER   $0.00
47 241768802 GLASS CRISPER FRAME   $74.05
47B 241967401 GLASS 2 PANE INSULATD   $230.80
48 242122101 CHANNEL-SHELF MTG,CENTER   $82.00
49 242122204 CHANNEL-SHELF MTG,SIDE,LH,49   $56.60
49B 242122302 CHANNEL-SHELF MTG,SIDE,RH,49B   $74.75
51 241816101 SLIDE,DELI   $156.05
52 241769002 SLIDE CRISPER COVER   $122.65
58 241941202 SCREW 8 18 X 3/8   $14.50
62 241827206 PAN-DELI   $267.80
64 240396801 CLAMP TUBE   $19.60
66 241748901 RACK,WINE   $79.85
100 241768601 SUPPORT,CRISPER COVER   $19.60
137 807946707 FILTER ASSEMBLY, VIKING, W/CAP   $0.00
NIA 807946702 BYPASS FILTER A13402902   $77.65
139 5304521650 MANIFOLD,WATER FILTER,93.5" 5304522623   $72.60
144 241803901 COVER DELI AIR CONTROL   $152.40
145 241803803 HOUSING-DELI AIR CONTROL   $133.55
145A 5304508170 SUPPORT,RAIL,LH   $92.15
NI 242130101 CLIP   $10.90
NIA 5304508198 HARNESS,WIRING,PTD UI & LED   $129.90
146B 241958403 CONTROL-ELECTRONIC,PTD 241958405   $137.05
NI 241936201 DAMPER RUBBER PTD FAN   $58.80
147A 241825704 FAN ASSEMBLY,MOTOR ,WITH BLADE   $280.85
NI 240451503 SCREW,IND HEX WSHR HD,8-32 X   $0.00
148A 241782001 HEATER PTD 115 V   $199.55
149 242025903 OVERLAY, ELECTRONIC, MEMBRANE SWITCH   $0.00
NI 241835402 HARNESS WIRE   $23.95
153A 241775301 MOTOR-DAMPER   $216.25
154 241879903 TRIM-CRISPER COVER   $0.00
155 241803403 FRAME-DELI COVER,LOWER   $151.70
156 241872006 FRAME-CRISPER COVER,LOWER   $122.65
157 241872201 BEAM CRISPER COVER   $51.55
NI 241822602 HARNESS-POWER PTD 5304521780   $22.50
NIA 241862501 HARNESS WIRING PTD MAIN W/LED   $48.65
158B 241955004 BOARD,MAIN POWER,PTD   $251.10
159 241815401 CAP PCBA HOLD DOWN   $6.55
210 5303918723 HOUSING,WATER FILTER,W/PLUG &   $26.85
NIA 241500303 SCREW,HEX WASHER HEAD,8-18AB X   $4.35
NIB 242039702 SCREW   $4.35
211 807932201 PLUG,FILTER HOUSING   $15.25
NI 5304455650 SCREW   $14.50
24C 242235502 SHELF   $231.50
NIB 241958403 CONTROL-ELECTRONIC,PTD 241958405   $137.05
*The price can change whitout warning
