Brand: Electrolux

Model: FFET2726TBC - WALL OVEN, ELECTRIC, DOUBLE, 27 INCH

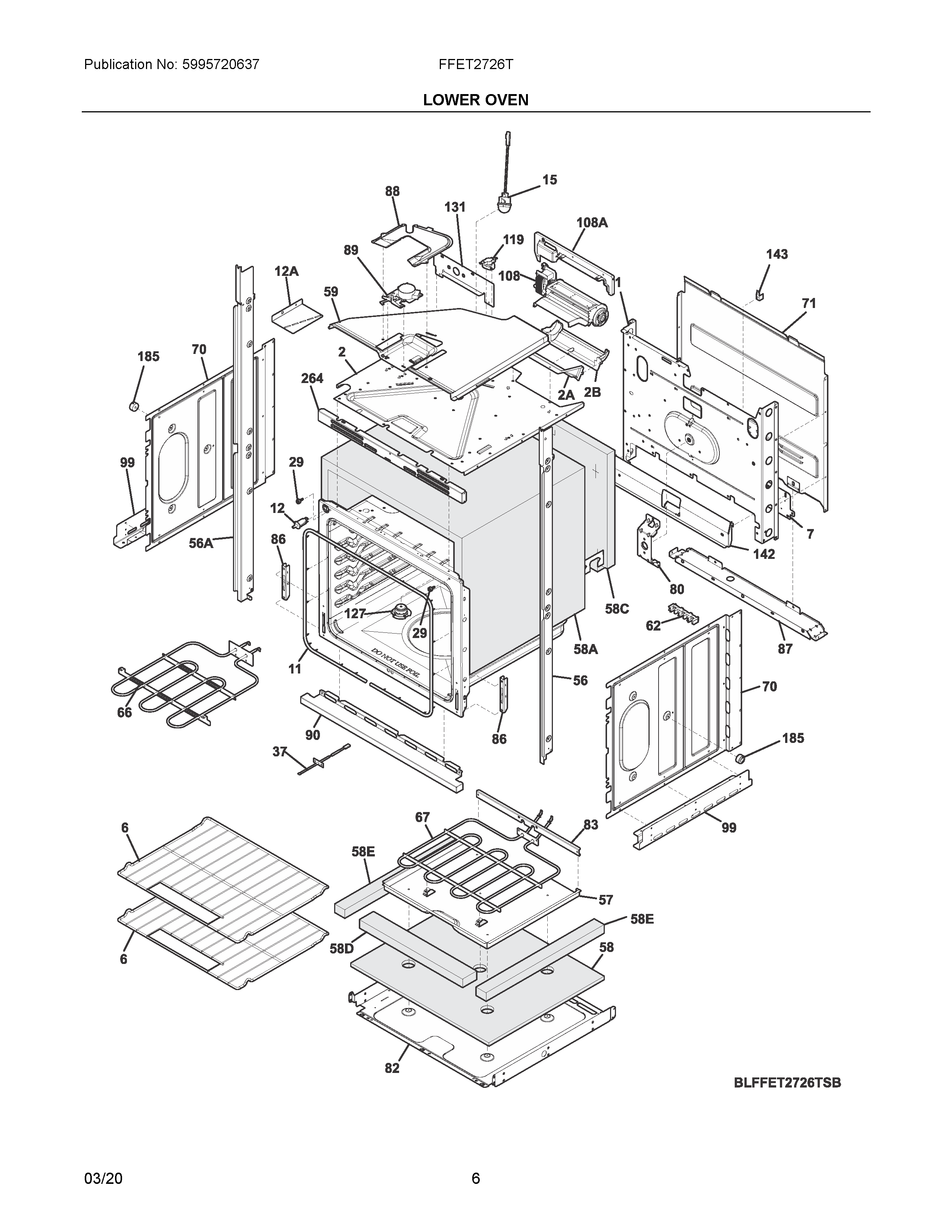

04 - LOWER OVEN

FFET2726TBC
Plan number Part Number Description Replacement Price
1 5304506959 PANEL,MAIN BACK   $70.40
2 139027805 SHIELD,INSULATION,TOP   $66.05
2A 139015900 SHIELD,FAN,CROSS FLOW   $13.05
2B 139038901 HOUSING,FAN,AIR DIVERTER   $31.95
NIBA 316021119 SCREW,AB NICKEL,8-18 X 11/16   $3.65
6 139011900 RACK,OVEN,W/HANDLE   $57.35
7 5304506960 PANEL,SERVICE,MAIN BACK   $62.40
11 807545501 SEAL,OVEN DOOR,GRAY   $76.20
12 318394802 SWITCH,OVEN LIGHT,DOOR FRAME 808136601   $40.65
12A 807641201 SHIELD,DOOR SWITCH   $66.05
15 139009000 ROUND HALOGEN LAMP ASSY 5304528790   $21.80
NIA 318946500 HALOGEN LAMP G9 25W 120V   $54.45
29 316517600 SPACER,OVEN DOOR   $12.35
37 5304504897 OVEN TEMP PROBE   $43.55
56 318903676 TRIM,SIDE FILLER,BLACK,RH   $129.90
56A 318903677 TRIM,SIDE FILLER,BLACK,LH   $124.10
NI 318165800 SPACER   $18.15
57 5304506949 BOX,BAKE ELEMENT   $110.30
58 5304506952 INSULATION,BAKE ELEMENT,LOWER   $70.40
58A 139001701 INSULATION,OVEN WRAPPER,27"   $62.40
58C 5304506954 INSULATION,OVEN,BACK   $36.30
58D 5304506965 INSULATION,BAKE ELEMENT,FRONT   $11.60
58E 5304506966 INSULATION,BAKE ELEMENT,SIDE   $13.05
59 139015700 DUCT,COOLING,LOWER OVEN   $45.00
62 316056000 TERMINAL BLOCK 5304409888, WG02A00893   $11.60
NIA 316205500 NUT,HEX FLANGE,3/8 10-32   $11.60
NIB 5303289910 SCREW,8A,1",(7),POWER BOARD MT   $5.80
66 5304523477 ELEMENT,BROIL,6 PASS,3400W   $225.70
67 5304506946 ELEMENT,HIDDEN BAKE,2500W   $114.65
70 139000601 SHIELD,INSULATION,SIDES,(2)   $68.95
71 139022000 SHIELD,REAR WIRE,MAIN BACK   $63.15
NIA 139022101 INSUALTION,NOISE DAMPENING   $16.70
80 139021101 BRACKET,SUPPORT,CHASSIS/FAN   $15.25
NIA 807597603 SCREW,SELF TAPPING,8-18 X 11/3   $9.45
82 5304506947 SHIELD,INSULATION,LOWER   $98.00
83 5304506951 SHIELD,BAKE ELEMENT,REAR   $72.60
86 318561100 RECEPTACLE,HINGE, - Require 2   $20.35
NIA 316418900 VIS,SIMS LP,#8-32 X 5/16"   $14.50
87 139021900 BRACKET,CABLE MTG.   $13.05
NIA 316001003 SCREW,GROUNDING,10-24 X 1.835 316001017   $0.75
88 5304506963 COVER,LATCH MOTOR,LOWER OVEN   $28.30
89 139021303 MOTOR,LATCH ASSY.,2 TERMINALS 5304528835   $72.60
NIA 316021110 SCREW 316021109   $14.50
NIB 5304517383 HARNESS,WIRING,MDL LOWER OVER   $73.30
90 318259847 TRIM,BASE,BLACK   $135.00
99 318256201 BRACKET SIDE BOTTOM 2   $58.05
108 139038301 BLOWER ASSEMBLY,COOLING,CROSS   $179.25
108A 139015300 BRACKET,FAN MTG.,CROSS FLOW   $55.15
119 318578505 THERMOSTAT,SAFETY,115C   $55.90
127 139042600 TUBE ASSEMBLY,VENT,W/CATALYST   $44.25
131 5304506962 COVER,CENTER REAR,CROSS FLOW   $29.05
142 5304506953 SHEILD,AIR DEFLECTOR,BACK   $39.90
143 318172904 SUPPORT,WIRE   $2.90
185 318531800 SPACER - OVEN SHIELD   $13.05
264 139013503 TRIM,CENTER VENT,BLACK   $80.55
NI 5304517377 HARNESS,WIRING,MAIN   $160.40
NI 5304517285 HARNESS ASSEMBLY,FILTER,ELECTR   $37.00
NI 5304506955 HARNESS ASSEMBLY,CONDUIT,ELBOW   $166.90
NI 5304470882 SCREW,ANTI-TIP ,8 - 5/8 ,BLACK   $13.80
NI 316021105 SCREW, HEX   $11.60
NI 316021109 SCREW   $14.50
*The price can change whitout warning
