Brand: Maytag
Model: 7MMVWB855EC3 - LAUNDRY, RESIDENTIAL, WASHER

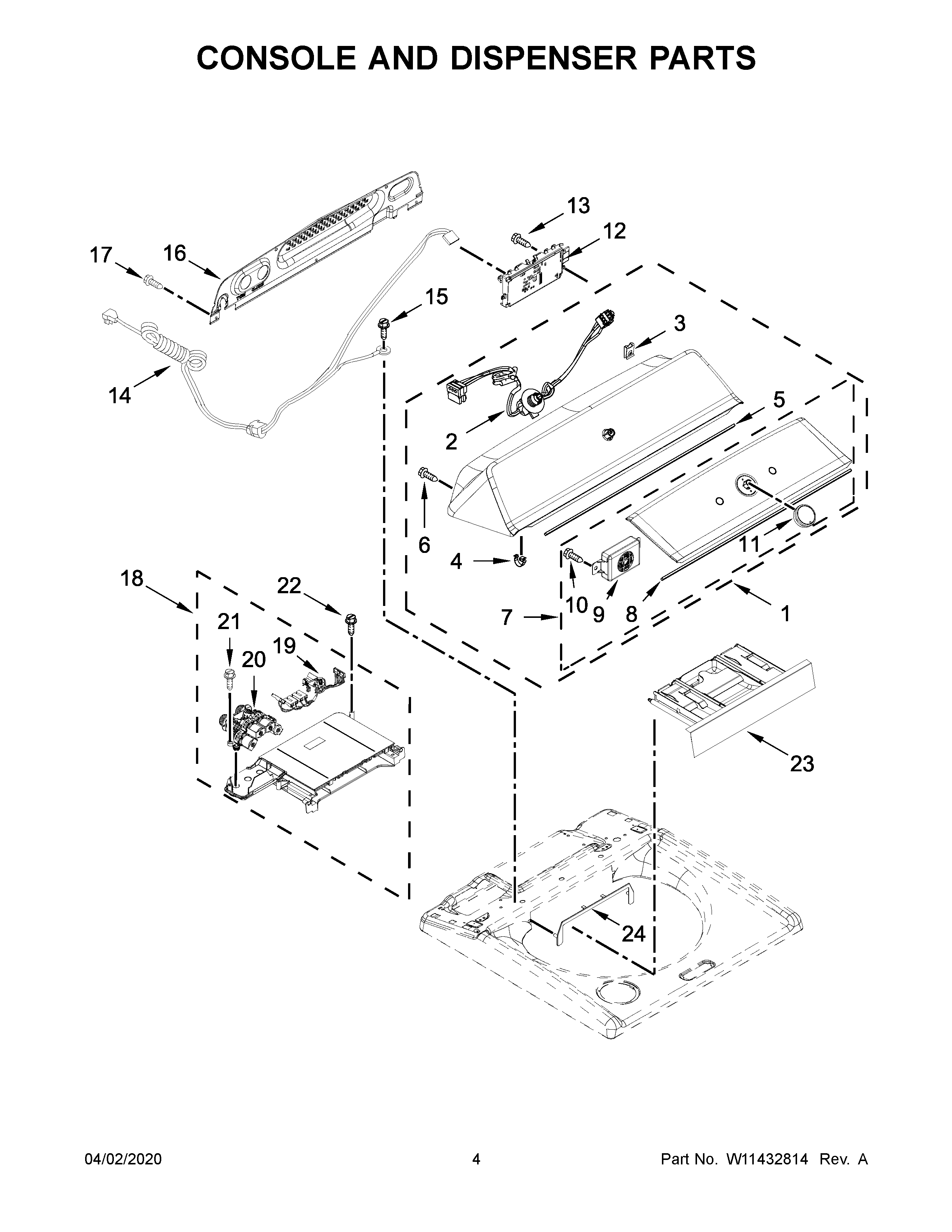

03 - CONSOLE AND DISPENSER PARTS
- 01 - COVER SHEET
- 02 - TOP AND CABINET PARTS
- 03 - CONSOLE AND DISPENSER PARTS
- 04 - MOTOR, BASKET AND TUB PARTS
- 05 - PUMP PARTS
- 06 - OPTIONAL PARTS (NOT INCLUDED)
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W10681982 | CONSOLE | W11226503 | $512.19 | ||
| 2 | W10771770 | HARNESS,WIRE | W11199207 | $136.29 | ||
| 3 | W10298336 | NUT | W11213336 | $6.39 | ||
| 5 | W10726624 | SEAL | $29.05 | |||
| 6 | 12990204 | SCREW | W11311945 | $11.43 | ||
| 7 | W10872838 | ASSEMBLY, FASCIA (GREY) | $0.00 | |||
| 8 | W10618933 | SEAL | $345.12 | |||
| 9 | W10568405 | SPEAKER | W11123146 | $62.54 | ||
| 10 | 9740849 | SCREW | WP9740849 | $5.55 | ||
| 11 | W10727011 | KNOB | W10853910 | $38.18 | ||
| 12 | W11173749 | CNTRL-ELEC | W11476200 | $411.66 | ||
| 13 | 9740848 | SCREW | WP9740848 | $5.09 | ||
| 14 | W10770108 | POWER CORD | W11096073 | $101.26 | ||
| 15 | 3400076 | SCREW | W10846509 | $6.15 | ||
| 16 | W10611544 | REAR PANEL | $242.20 | |||
| 17 | W10660565 | SCREW | W11685943 | $12.03 | ||
| 18 | W11096285 | HOUSING | W11172234 | $294.90 | ||
| 19 | W10849297 | HARNESS,WIRE | W11193817 | $136.29 | ||
| 20 | W11096267 | VALVE | W11165546 | $117.51 | ||
| 21 | 97787 | SCREW | WPW10109200 | $5.97 | ||
| 22 | 3400061 | SCREW | W11700520 | $11.19 | ||
| 23 | W10795361 | DRAWER | W11397976 | $74.90 | ||
| 24 | W10601876 | BEZEL | $20.69 |
*The price can change whitout warning
