Brand: Whirlpool

Model: WEG745H0FS1 - RANGE/OVEN, GAS, SLIDE-IN, 30 INCH

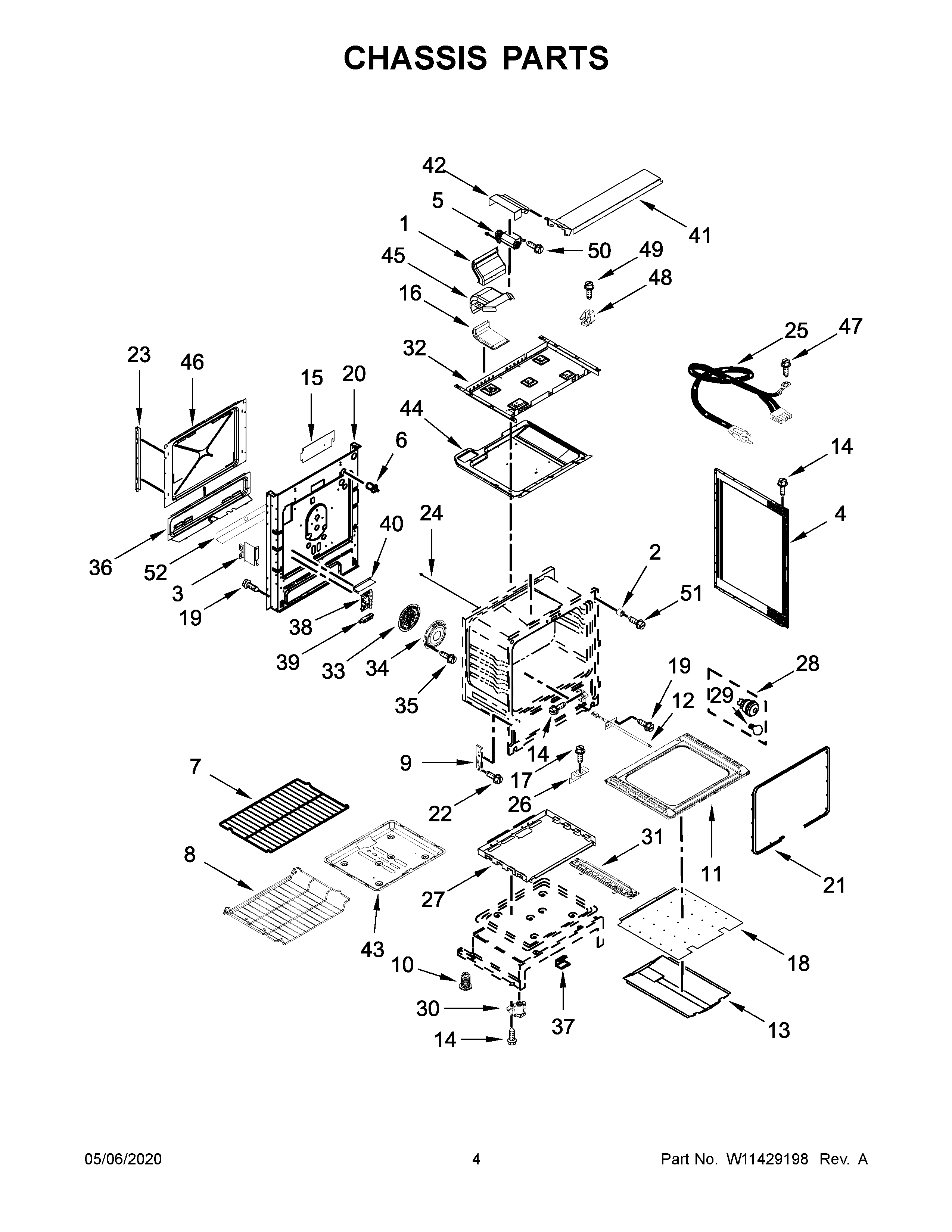

03 - CHASSIS PARTS

WEG745H0FS1
Plan number Part Number Description Replacement Price
1 W10614920 FLUE-OVEN   $127.82
2 9758701 SPACER W10877054   $41.38
3 W10273002 BRACKET   $58.48
4 W10162245 ASM-SIDE PNL,INSUL.,BLK SERV WPW10162245   $140.01
5 W11190724 FAN BLOWER W11107275   $153.19
6 W10627802 INTERRUPTEUR DE PORTE WP9757262   $122.85
7 W10531060 OVEN RACK WPW10531060   $93.56
8 W10289145 OVEN RACK WPW10289145   $100.31
9 W10289077 HINGE-RECEIVER W10647259   $6.32
10 W10058460 FOOT - LEVEL WPW10058460   $4.61
11 W10211368 BOTTOM-OVEN WPW10211368   $236.91
12 W10586204 SENSOR W10833885   $174.55
13 3601P356-45 BAFFL-BRNR   $187.21
14 3196178 SCREW W11233072   $12.16
15 W11117035 SHIELD   $65.00
16 W11040249 FLUE-OVEN W11243157   $277.26
17 W10362924 SCREW W11233072   $12.16
18 W10323077 BAFFL-BRNR   $206.02
19 3196178 SCREW W11233072   $12.16
20 W10289166 BACK, MAIN   $0.00
21 W10162385 GASKET, DOOR WPW10162385, W11562931   $0.00
22 W10031780 SCREW W10777162   $6.89
23 W10162241 CHANNEL,REAR   $31.87
24 W11370463 ROD-DOOR   $49.59
25 W10624590 POWER CORD W11023766   $87.98
26 W10035900 BRKT-SUPRT   $10.78
27 W10541959 HEAT SHIELD   $179.37
28 W11175594 SOCKET ASSY W11594027   $61.17
29 W10571723 BULB-LIGHT WPW10571723   $55.22
30 W10341186 FOOT-LEVEL WPW10341186   $25.57
31 W10390008 ASM BASE RAIL - CLIP,RIGHT WPW10306546   $102.17
31A W10390007 ASM BASE RAIL - CLIP,RIGHT WPW10306546   $102.17
32 W10558276 BOX-BURNER   $165.86
33 W11353926 FAN,CONVECTION W11441001   $152.89
34 W10346154 COVER, CONVECT BRAND WPW10346154   $50.43
35 W10362924 SCREW W11233072   $12.16
36 W10162249 COVER,WIRE   $78.06
37 W10137382 CLIP   $37.20
38 W10457998 MODULE W10860916   $277.13
39 W10475149 MODULE-SPK WPW10475149   $292.28
40 W11206138 GUARD-SPIL W10655451   $57.34
41 W10162254 DUCT-AIR   $98.08
42 W10162255 EXHAUST COVER   $19.17
43 W11379356 PAN-HIDDEN   $58.53
44 W10289168 BOX-BURNER   $145.77
45 W10162257 DUCT-AIR   $18.93
46 W11379354 COVER-REAR   $54.45
47 3196173 SCREW W11244557   $12.16
48 W10645947 GROMMET W11025100   $10.98
49 W10516115 SCREW   $12.16
50 W10067840 SCREW WPW10067840   $6.32
51 3196560 SCREW W11169708   $12.72
52 W10435470 BRACE   $60.33
NI 4820F015-59 STRAP   $7.94
NI W10289173 INSULATION W11688567   $89.82
NI W10162240 INSULATION W11688363   $89.82
*The price can change whitout warning
