Brand: Maytag

Model: MGS8800FZ1 - RANGE/OVEN, GAS, SLIDE-IN, 30 INCH

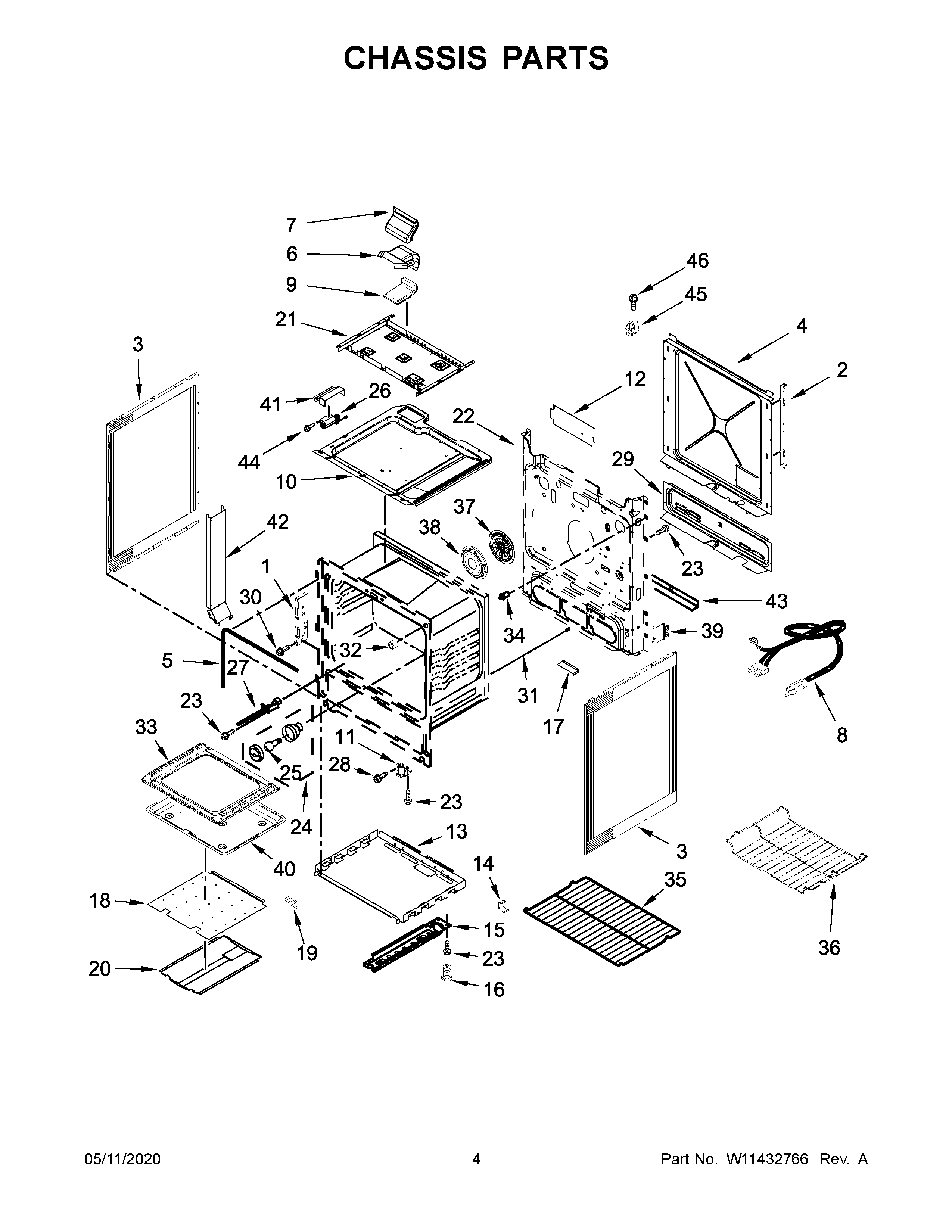

03 - CHASSIS PARTS

MGS8800FZ1
Plan number Part Number Description Replacement Price
1 W10289077 HINGE-RECEIVER W10647259   $6.32
2 W10162241 CHANNEL,REAR   $31.87
3 W10162245 ASM-SIDE PNL,INSUL.,BLK SERV WPW10162245   $140.01
4 W11379354 COVER-REAR   $54.45
5 W10162385 GASKET, DOOR WPW10162385, W11562931   $0.00
6 W10162257 DUCT-AIR   $18.93
7 W10614920 FLUE-OVEN   $127.82
8 W10624590 POWER CORD W11023766   $87.98
9 W11040249 FLUE-OVEN W11243157   $277.26
10 W10289168 BOX-BURNER   $145.77
11 W10341186 FOOT-LEVEL WPW10341186   $25.57
12 W11117035 SHIELD   $65.00
13 W10541959 HEAT SHIELD   $179.37
14 W10137382 CLIP   $37.20
15 W10390008 ASM BASE RAIL - CLIP,RIGHT WPW10306546   $102.17
15A W10390007 ASM BASE RAIL - CLIP,RIGHT WPW10306546   $102.17
16 W10058460 FOOT - LEVEL WPW10058460   $4.61
17 W11206138 GUARD-SPIL W10655451   $57.34
18 W10323077 BAFFL-BRNR   $206.02
19 W10035900 BRKT-SUPRT   $10.78
20 3601P356-45 BAFFL-BRNR   $187.21
21 W10558276 BOX-BURNER   $165.86
22 N/P BACK, MAIN (NOT SERVICED)   $0.00
23 3196178 SCREW W11233072   $12.16
24 W11175594 SOCKET ASSY W11594027   $61.17
25 W10571723 BULB-LIGHT WPW10571723   $55.22
26 W11190724 FAN BLOWER W11107275   $153.19
27 W10586204 SENSOR W10833885   $174.55
28 3196169 SCREW WP3196557   $6.31
29 W10162249 COVER,WIRE   $78.06
30 W10031780 SCREW W10777162   $6.89
31 W11370463 ROD-DOOR   $49.59
32 9758701 SPACER W10877054   $41.38
33 W10211368 BOTTOM-OVEN WPW10211368   $236.91
34 W10627802 INTERRUPTEUR DE PORTE WP9757262   $122.85
35 W10531060 OVEN RACK WPW10531060   $93.56
36 W10289145 OVEN RACK WPW10289145   $100.31
37 W11353926 FAN,CONVECTION W11441001   $152.89
38 W10346154 COVER, CONVECT BRAND WPW10346154   $50.43
39 W10273002 BRACKET   $58.48
40 W11379356 PAN-HIDDEN   $58.53
41 W10162255 EXHAUST COVER   $19.17
42 W10162254 DUCT-AIR   $98.08
43 W10435470 BRACE   $60.33
44 W10067840 SCREW WPW10067840   $6.32
45 W10645947 GROMMET W11025100   $10.98
46 W10516115 SCREW   $12.16
NI N/P FOLLOWING PARTS NOT ILLUSTRATED   $0.00
NI W10289173 INSULATION W11688567   $89.82
NI W10162240 INSULATION W11688363   $89.82
NI 4820F015-59 STRAP   $7.94
NI 7111P017-60 CLIP W10841090   $5.78
NI 3196520 CLIP 3400964   $68.28
*The price can change whitout warning
