Brand: Maytag
Model: JMC2427IL03 - MICROWAVE, BUILT-IN, 27 INCH

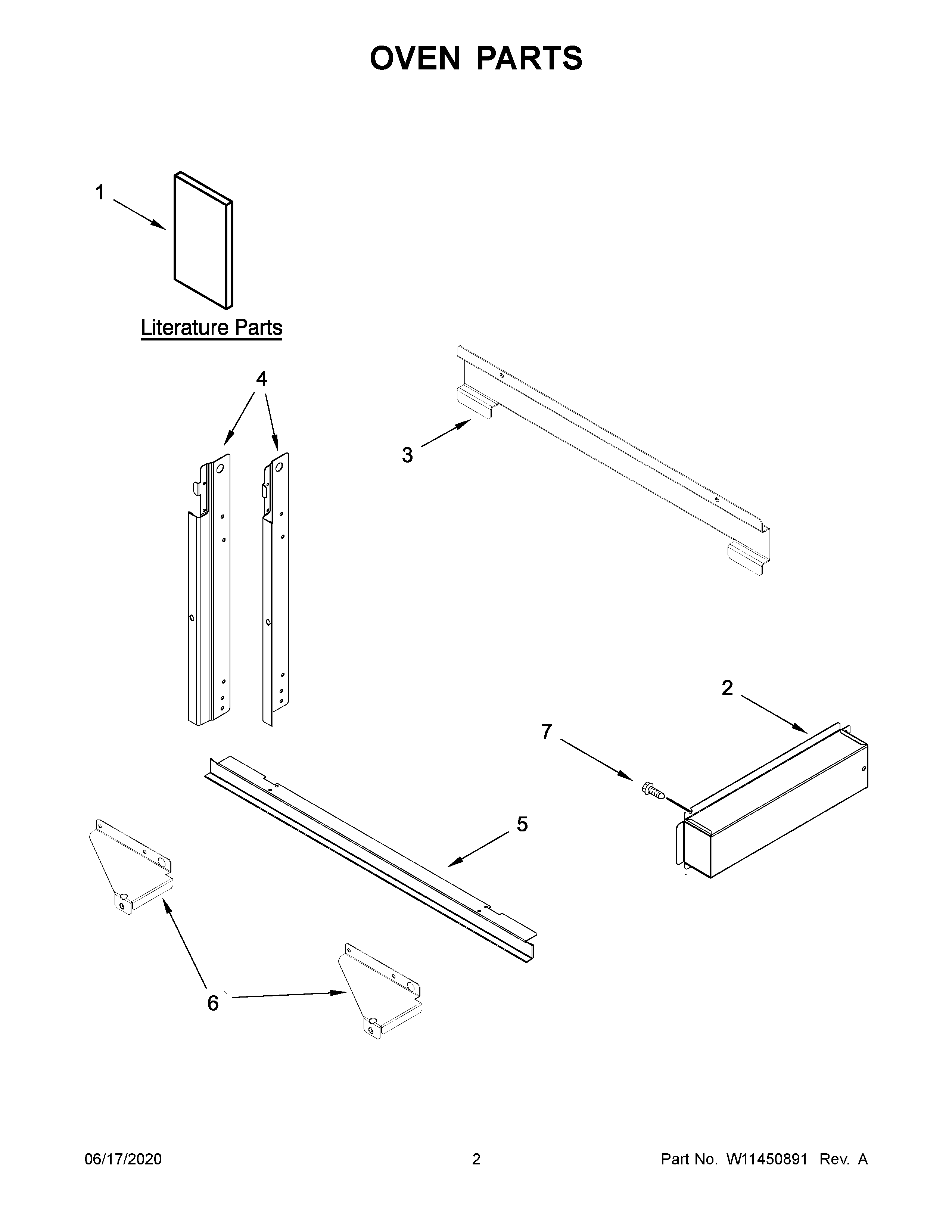

02 - OVEN PARTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W11235626 | INSTRUCTIONS, INSTALLATION | $0.00 | |||
| 1A | W11235346 | GUIDE, USE AND CARE (MICROWAVE OVEN) | $0.00 | |||
| 1B | W11284428 | SHEET, TECH | $0.00 | |||
| 1C | W11235305 | DIAGRAM, WIRING | $0.00 | |||
| 2 | W10239155 | COVER | $72.86 | |||
| 3 | W10420960 | SUPPORT | W11673269 | $46.80 | ||
| 4 | W10416256 | RAIL-MTG | $37.45 | |||
| 4A | W10416255 | RAIL-MTG | $37.45 | |||
| 5 | W11359266 | TRIM | $88.48 | |||
| 6 | W10239158 | SUPPORT | $9.76 | |||
| 6A | W10239159 | SUPPORT | $14.00 | |||
| 7 | 7101P426-60 | SCREW | WP90767 | $6.30 | ||
| NI | N/P | FOLLOWING PARTS NOT ILLUSTRATED | $0.00 | |||
| NI | W11356969 | HARNESS,WIRE | W11449277 | $108.39 | ||
| NI | W11356954 | HARNS-WIRE | $113.26 | |||
| NI | W11356968 | HARNS-WIRE | $113.26 | |||
| NI | W11356986 | HARNS-WIRE | $82.50 | |||
| NI | W11356977 | HARNS-WIRE | $64.01 | |||
| NI | W11356987 | HARNS-WIRE | W11325605 | $140.04 | ||
| NI | 4450800 | SCREW | $12.16 | |||
| NI | W11226264 | HARNS-WIRE | $86.66 | |||
| NI | W11356992 | CONDUIT | $165.55 | |||
| NI | W10513362 | HARDWARE | W10760039 | $7.73 |
*The price can change whitout warning
