Brand: Whirlpool

Model: KODE500ESS05 - WALL OVEN, ELECTRIC, DOUBLE, 30 INCH

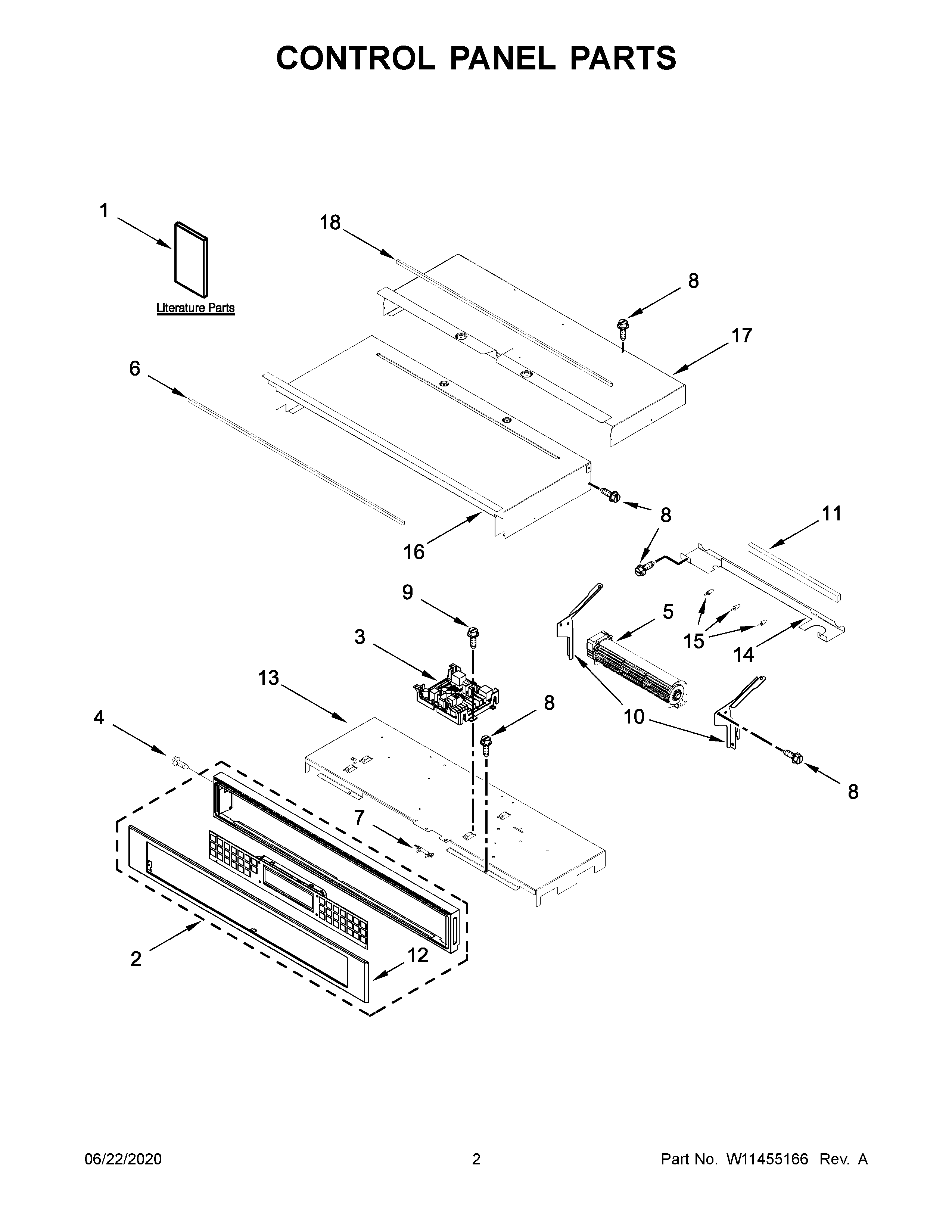

02 - CONTROL PANEL PARTS

KODE500ESS05
Plan number Part Number Description Replacement Price
1 W10643471 GUIDE, USE & CARE   $0.00
1A W10725670 INSTRUCTIONS, INSTALLATION   $0.00
1B W11041061 SHEET, TECH   $0.00
2 W10890577 CONSOLE W11087449   $559.16
2A W10890572 SWTCH-MEMB W10916776   $454.19
2B W10890574 CONSOLE W11086141   $588.20
2C W10890564 CONTROL PANEL W11086152   $588.20
3 W11040195 CONTROL BOARD W11179310   $454.96
3A W10777216 CONTROL BOARD W10801665   $403.30
4 3400832 SCREW WP3400832   $6.32
4A W11249635 SCREW WPY706189   $5.97
5 W11200130 BLOWER W11245567   $329.97
6 W11162063 SEAL-FOAM W11226314   $18.74
7 W10782120 FUSE-THRML W11610133   $21.70
8 7101P426-60 SCREW WP90767   $6.30
9 7101P434-60 SCREW WP7101P434-60   $6.62
10 W10655463 BRKT-MNTG   $25.48
10A W10655462 BRKT-MNTG   $25.48
11 4451758 SEAL-FOAM W10491987   $6.28
12 W10588744 PANL-CNTRL   $193.58
12A W10588746 PANL-CNTRL   $193.90
12B W10588740 CONTROL PANEL   $161.66
12C W10776407 PANL-CNTRL   $206.29
13 W10864102 BRKT-MNTG   $56.36
14 W10655465 BRKT-MNTG   $57.55
15 W10351295 BUMPER   $18.06
16 W10318192 TOP-CABNT   $102.33
18 W10728475 SEAL-FOAM   $25.30
NI N/P FOLLOWING PARTS NOT ILLUSTRATED   $0.00
NI W11136133 HARNS-WIRE   $282.84
NI W11157221 HARNS-WIRE   $86.66
NI W11132989 HARNESS,DOOR LATCH   $86.66
NI W10562910 HARNESS,WIRE   $24.50
NI W11177679 HARNS-WIRE   $147.04
NI 4450800 SCREW   $12.16
NI 313438 CLIP 16515   $16.07
NI W11132988 HARNS-WIRE   $20.46
NI 4448664 MOUNTING BRACKET   $18.06
NI W10655464 BRACKET   $25.89
NI W10431304 HARDWARE W10760039   $7.73
*The price can change whitout warning
