Brand: Whirlpool

Model: WOC75EC7HV04 - WALL OVEN, ELECTRIC, MICRO COMBO, 27 INCH

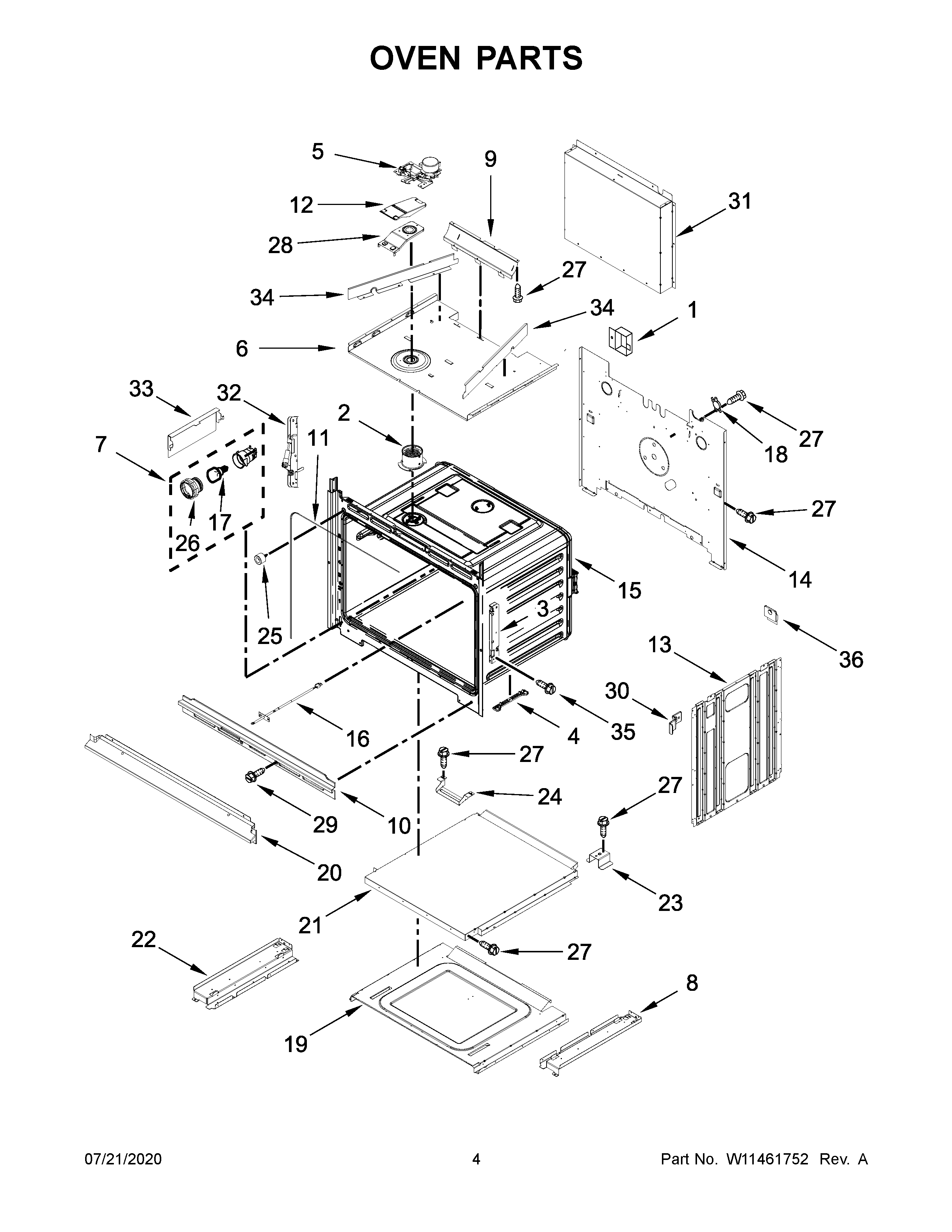

03 - OVEN PARTS

WOC75EC7HV04
Plan number Part Number Description Replacement Price
1 8285593 COVR-WIRE   $71.39
2 W11085298 TUBE,VENT W11240525   $17.93
3 W11044775 RECEIVER,HINGE W11613828   $40.98
4 W10618102 SPACER W11240831   $14.25
5 W10618131 DOOR LATCH MTORIZED W10883049   $243.85
6 W10904159 TOP-CABNT   $133.38
7 W11246615 LIGHT INDICATOR W11325541   $78.58
8 W10283021 SUPPORT   $49.34
9 W10904163 DEFLCTR-VT   $129.58
10 W10495155 VENT-OVEN   $84.99
12 W10616810 COVER,EXHAUST   $53.23
13 W10663556 PANEL-SIDE   $104.72
13A W10318190 PANEL-SIDE   $105.31
14 W10904162 COVER-REAR   $54.66
15 N/P LINER, OVEN (NOT SERVICEABLE)   $0.00
16 W10622170 SENSOR W10859573   $173.60
17 W11297362 BULB-LIGHT W11454079   $68.54
18 4449751 T.O.D. SPST OVER TEMP WP4449751   $145.15
19 W10282901 ACCESS COVER   $159.42
20 W10869573 VENT,OVEN W10909992   $103.31
21 W10283008 COVER ACCESS WPW10283008   $155.65
22 W10283020 SUPPORT   $49.34
23 W10213759 SUPPORT   $57.90
24 W10351308 BRKT-SUPRT   $60.13
25 W10351278 BUMPER WPW10351278   $7.91
26 W11297361 LENS-LIGHT W11450856   $15.89
27 7101P426-60 SCREW WP90767   $6.30
28 W10616809 TUBE,VENT   $28.40
29 W11249635 SCREW WPY706189   $5.97
30 W10834501 SPACER   $13.11
31 W11037653 REAR COVER   $52.91
32 W11045086 HINGE,RECEIVER   $92.82
33 W11034940 SHIELD   $65.00
34 W10681156 DEFLCTR-VT   $66.35
35 W10254050 SCREW WPW10254050   $6.63
36 W10834286 SPACER   $19.01
NI N/P FOLLOWING PARTS NOT ILLUSTRATED   $0.00
NI W10520716 INSULATION   $69.48
NI W10282945 INSULATION W11688333   $89.82
NI W11112951 INSULATION   $0.00
*The price can change whitout warning
