Brand: Whirlpool
Model: WHD560CHW2 - LAUNDRY, RESIDENTIAL, DRYER, HEAT PUMP

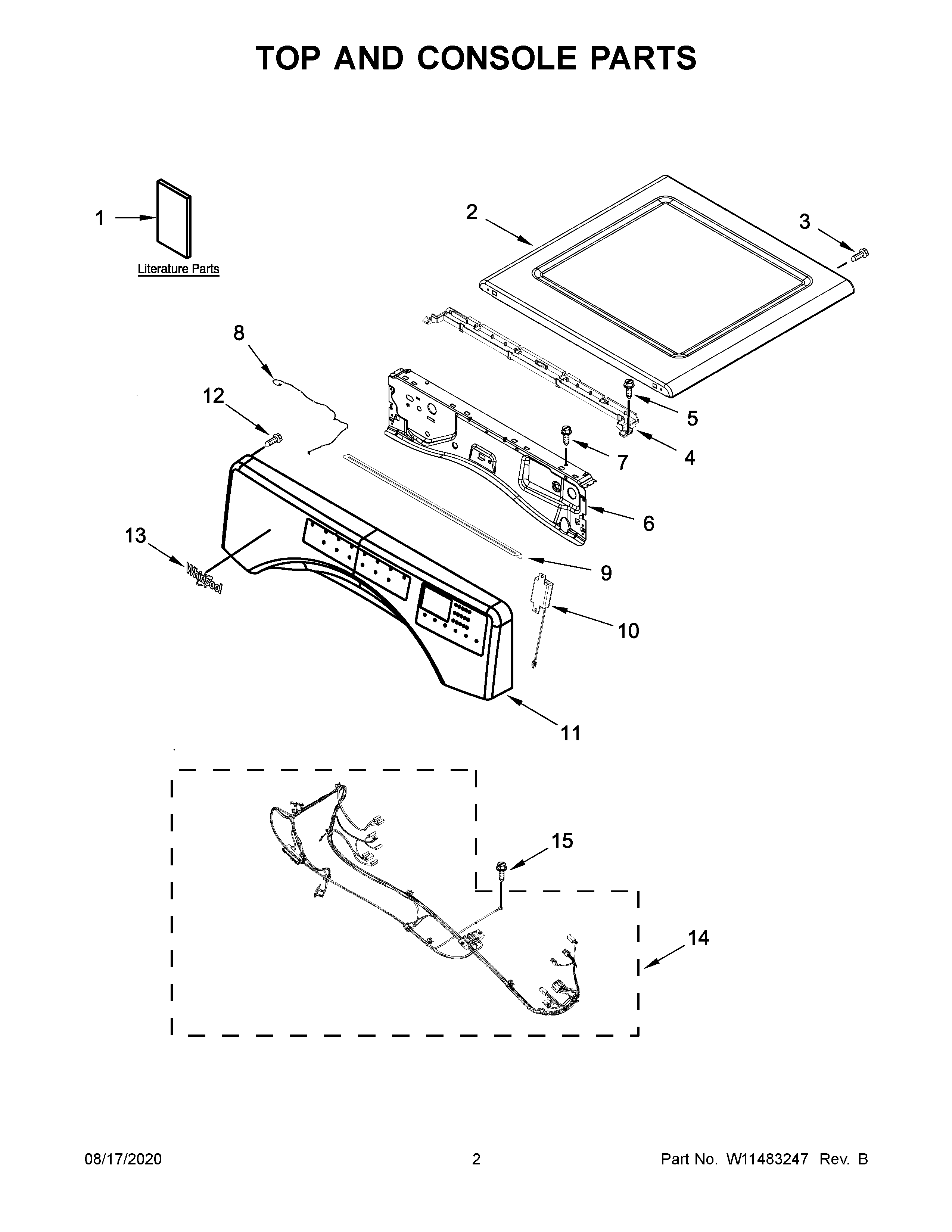

02 - TOP AND CONSOLE PARTS
- 01 - COVER SHEET
- 02 - TOP AND CONSOLE PARTS
- 03 - CABINET PARTS
- 04 - BASE PARTS
- 05 - BULKHEAD PARTS
- 06 - DOOR PARTS
- 07 - OPTIONAL PARTS (NOT INCLUDED)
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W11184587 | USE AND CARE GUIDE | $0.00 | |||
| 1A | W11184511 | INSTALLATION INSTRUCTIONS | $0.00 | |||
| 1B | W11184896 | QUICK START GUIDE | $0.00 | |||
| 1C | W11457205 | WIRING DIAGRAM | $0.00 | |||
| 2 | W10208383 | TOP PANEL - WHITE | WPW10208383 | $228.51 | ||
| 3 | 343641 | SCREW | WP681414 | $5.80 | ||
| 4 | W11255768 | BRACKET | W11310027 | $16.89 | ||
| 5 | 12990702 | SCREW | W11686675 | $11.19 | ||
| 6 | W10208198 | BRACKET | W11480682 | $54.40 | ||
| 7 | 3390647 | SCREW | WP488729 | $6.39 | ||
| 8 | W11160620 | HARNESS,WIRE | W11459337 | $23.94 | ||
| 9 | W11231800 | SEAL | W11318819 | $0.00 | ||
| 10 | W10568405 | SPEAKER | W11123146 | $62.54 | ||
| 11 | W11296380 | CONTROL BOARD | W11331944 | $411.66 | ||
| 12 | W10219342 | SCREW | W10853898 | $6.95 | ||
| 13 | W10884773 | NAMEPLATE | W11223753 | $67.41 | ||
| 14 | W11157870 | HARNS-WIRE | $179.19 | |||
| 15 | 693995 | SCREW | WP693995 | $6.32 |
*The price can change whitout warning
