Brand: Whirlpool
Model: GX2SHBXVB02 - REFRIGERATOR
14 - MOTOR, MTG BRACKET, BELTS & IDLER ASSY
- 01 - COVER SHEET

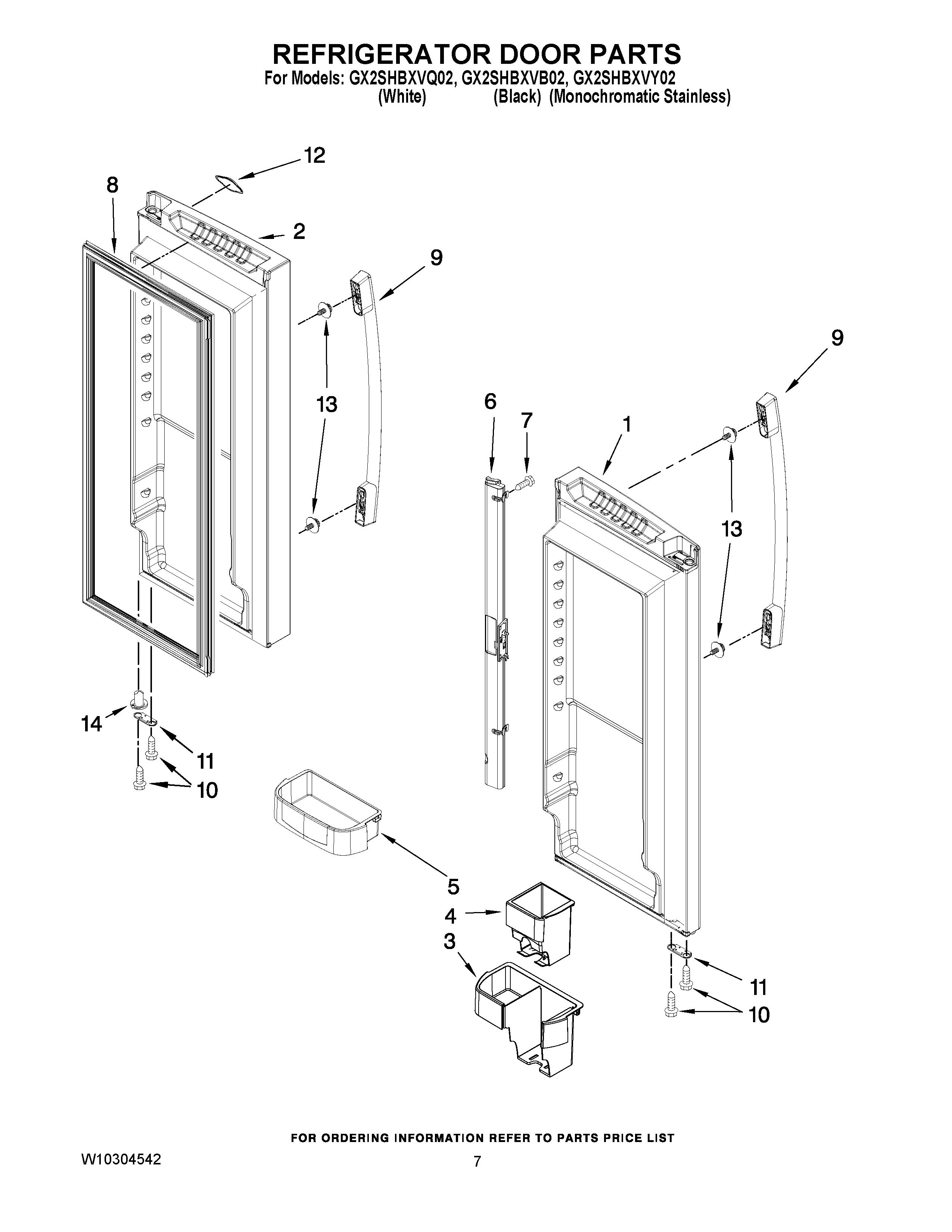

- 03 - DOOR PARTS
- 03 - REFRIGERATOR SHELF
- 05 - ICEMAKER PARTS
- 06 - UNIT PARTS
- 11 - UNIT
- 14 - MOTOR, MTG BRACKET, BELTS & IDLER ASSY
- 20 - NON-``M`` MODEL--STANDING PILOT BURNER
Plan or Diagrame not available.
Plan number | Part Number | Description | Replacement | Price | ||
---|---|---|---|---|---|---|
1 | 12978044WQ | DOOR, LEFT (WHITE) | ||||
1 | 12978073BQ | DOOR, LEFT (BLACK) | ||||
1 | 12978049SQ | DOOR, LEFT (STAINLESS) | ||||
2 | 12978043WQ | DOOR, RIGHT (WHITE) | ||||
2 | 12978076BQ | DOOR, RIGHT (BLACK) | ||||
2 | 12978053SQ | DOOR, RIGHT (STAINLESS) | ||||
3 | W10169347 | Bucket, Can Dispenser | ||||
4 | 13005401SP | SLEEVE-CAN DISPENSER | WP13005401SP | Call to order | ||
5 | 12849106V | BUCKET-REF | WPW10371194 | Call to order | ||
5 | 12849103V | SM OEM BUCKET ASSY | WPW10351081 | Call to order | ||
6 | 12722803W | VERT MULLION ASSY | WP12722803W | Call to order | ||
6 | 12722803B | VERT MULLION ASSY | WP12722803B | Call to order | ||
6 | 12722803AP | VERT MULLION ASSY | WP12722803AP | Call to order | ||
7 | 12990204 | SCREW | W11311945 | Call to order | ||
8 | W10218678 | GASKET-FIP | W10830287 | Call to order | ||
8 | W10163894 | DOOR GASKET | W10830189 | Call to order | ||
8 | W10218679 | GASKET-FIP | W10830289 | Call to order | ||
8 | W10163895 | GASKET-B DOOR REF FD | W11368721 | Call to order | ||
8 | W10218680 | GASKET | W10830283 | Call to order | ||
8 | W10179332 | Gasket, Door (Apollo Grey - RH) | W10571956, W10830162 | |||
9 | W10222984 | HANDLE ASSY-WP WH | WPW10222984K | Call to order | ||
9 | W10222985 | HANDLE | W11351146 | Call to order | ||
9 | W10223019 | HANDLE ASSY-WP SS | W11351147 | Call to order | ||
10 | 12990504 | SCREW | WP98165 | Call to order | ||
11 | 12968202W | STOP-DOOR | Call to order | |||
11 | 12968202B | STOP-DOOR | WP67007011 | Call to order | ||
11 | 12968202AP | Stop, Door (Apollo Grey) | WPW10191119, W11703060 | |||
12 | 2220214 | NAMEPLATE | WP2220214 | Call to order | ||
13 | 12992902 | SCREW,HANDLE SHOULDER | WP12992902 | Call to order | ||
14 | 12028505W | CLOSER | WP67003638 | Call to order | ||
14 | 12028505B | CLOSER | WP67003639 | Call to order | ||
14 | 12028505AP | CLOSURE-DOOR | WP12028505AP | Call to order |
*The price can change whitout warning
