Brand: Electrolux

Model: FPFU19F8WF0 - FREEZER, UPRIGHT, W/ICE MAKER

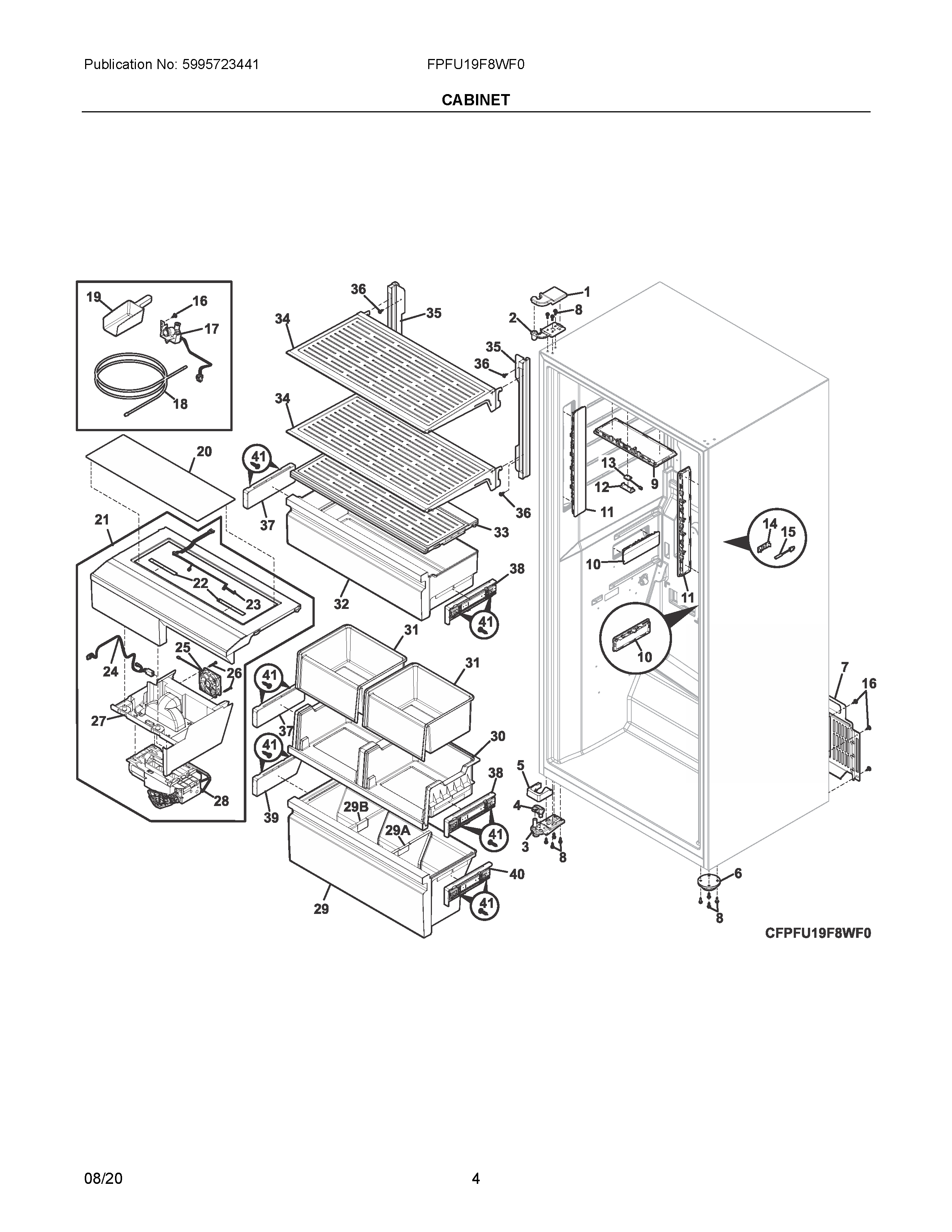

03 - CABINET

FPFU19F8WF0
Plan number Part Number Description Replacement Price
1 5304524639 COVER,HINGE,STAINLESS,LH UPPER   $10.90
2 5304524637 HINGE,DOOR,LH UPPER   $161.85
3 5304525229 HINGE ASSEMBLY,LOWER,LH   $68.95
4 5304525227 HINGE ASSEMBLY,LOWER,LH 5304525229   $68.95
5 5304525228 COVER,HINGE,LH LOWER   $10.90
6 5304525230 LEVELER ASSEMBLY   $34.10
7 5304525858 COVER,ACCESS,MACHINE COMPT.   $58.80
8 5304522279 SCREW,HINGE,M5 X 16   $0.75
9 5304524657 LED LIGHT ASSY (2X)   $103.80
10 5304524656 LIGHT ASSEMBLY,LED,1X,W/LENS,P   $55.90
11 5304524658 LED LIGHT ASSY (3X),W/LENS   $115.40
12 5304524761 COVER,REED SWITCH   $10.90
13 242326001 HARNESS & REED SWITCH 5304527992   $82.00
14 5304524759 COVER,SENSOR   $10.90
15 5303918775 THERMISTOR   $18.85
16 241500304 SCREW,HEX WASHER HEAD,8-18AB X   $1.45
17 5304520540 VALVE,WATER,SINGLE SOLENOID   $85.65
18 218976828 HOSE ASMY,CLICK CONNEX,TALL T 5304536764   $20.65
19 5304524712 SCOOP,ICE 5304529200   $10.15
20 5304524780 GLASS,CONTROL COVER   $103.80
21 5304524715 CONTROL COVER,WHITE   $342.55
22 5304524650 PC BOARD LED CLUSTER,POLARIS   $53.70
23 5304524766 HARNESS,JUMPER,LED   $10.90
24 5304524779 HARNESS,INETRMEDIATE,TO ICE MA   $27.60
25 5304524796 MOTOR,FAN,ICE MAKER   $172.70
26 241953905 SCREW,8-18 X 1.25   $10.90
27 5304524652 HOUSING,ICE MAKER   $51.55
28 243297610 ICE MAKER ASSY   $140.80
29 5304524710 DRAWER ASSY   $248.90
29A 5304525861 DIVIDER,LOWER DRAWER,RH   $34.85
29B 5304525862 DIVIDER,LOWER DRAWER,LH   $32.65
30 5304524708 SHELF ASSEMBLY,SLIDE OUT   $174.90
31 5304524711 BASKET,ICE   $124.10
32 5304524702 DRAWER ASSEMBLY,FULL WIDTH,UPP   $219.90
33 5304524683 ASSEMBLY-CRISPER COVER FRZ TT 5304535415   $142.10
NIA 5304525860 GASKET,COVER,BLUE,FRONT   $30.50
34 5304524671 SHELF ASSEMBLY,METALIC   $188.70
35 5304524841 RAIL,SHELF SUPPORT   $113.20
36 5304519765 SCREW,HX WASH HD,M4.2 X 12   $0.75
37 5304524850 SLIDE ASSEMBLY,9 INCH,LH   $92.15
38 5304524849 SLIDE ASSEMBLY,9 INCH,RH   $91.45
39 5304524852 SLIDE ASSEMBLY,8 INCH,LH   $87.80
40 5304524851 SLIDE ASSEMBLY,8 INCH,RH   $87.80
41 5304524845 SCREW,QUAD HILO,4.2X1.41X15.9   $2.90
*The price can change whitout warning
