Brand: Whirlpool

Model: WRX986SIHV02 - REFRIGERATOR, FRENCH DOOR, 4-DOOR

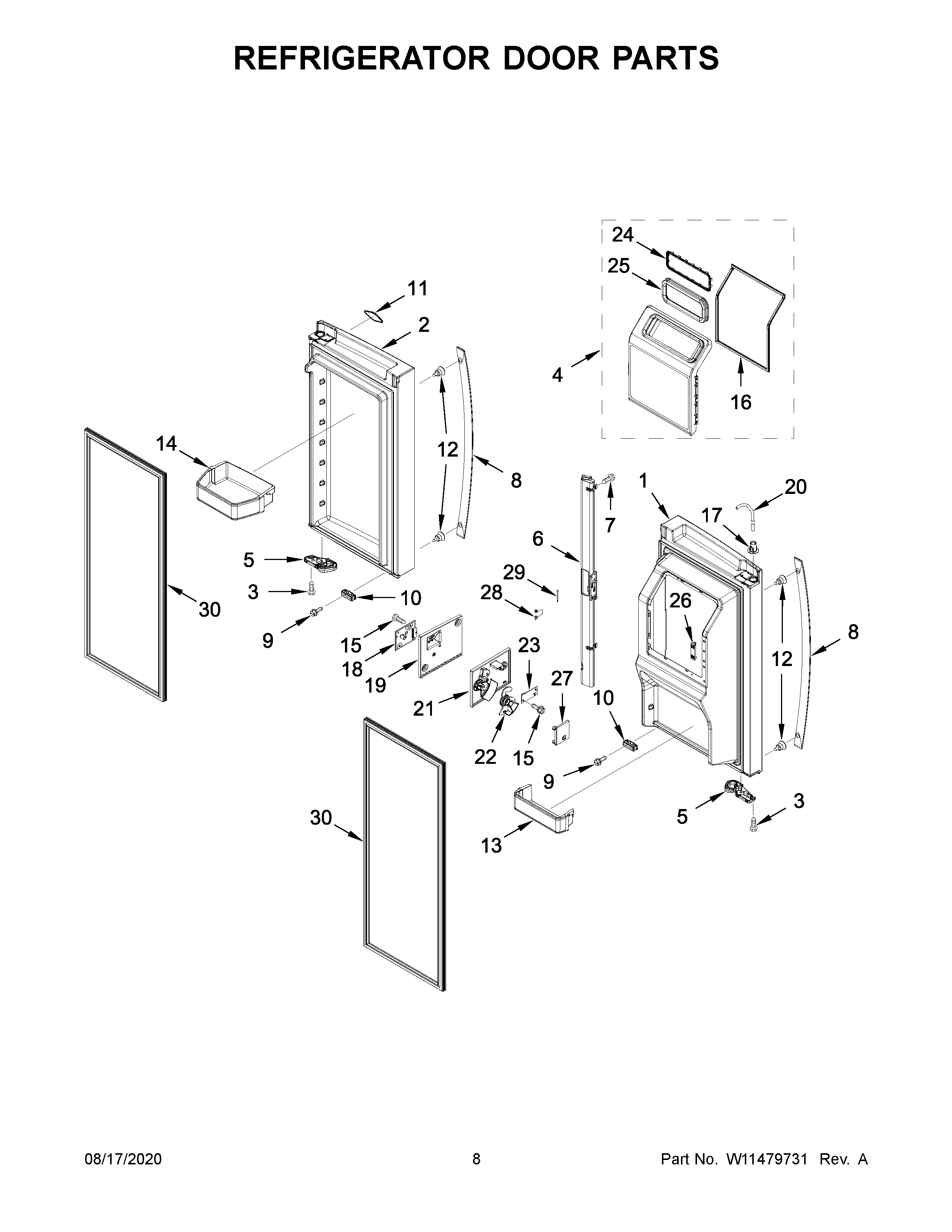

05 - REFRIGERATOR DOOR PARTS

WRX986SIHV02
Plan number Part Number Description Replacement Price
1 W11405227 DOR-FIP W11518693   $681.80
1A W11405229 DOR-FIP W11518696   $681.80
2 W11024122 DOR-FIP W11104467   $693.54
2A W11419958 DOR-FIP W11435357   $681.80
3 W10238319 SCREW WPW10238319   $6.62
4 W11261139 DOOR-ICE   $145.12
5 W10712952 CLOSER W10904595   $14.62
5A W10712953 CLOSER W11212164   $13.84
6 W10698203 RAIL-MULLN W11690637   $91.64
6A W10698204 RAIL-MULLN W11025614   $105.62
7 12990204 SCREW W11311945   $11.43
8 W10918272 HANDLE W11045128   $147.14
8A W11115757 HANDLE W11045129   $147.14
9 12990504 SCREW WP98165   $6.50
10 W10407187 BUMPER,DOOR   $35.64
10A W10407188 BUMPER-DOR W11573367   $17.63
11 W10884773 NAMEPLATE W11223753   $67.41
12 W11328753 SCREW W11449276   $11.19
13 W10533404 TRIVET W10846358   $73.33
14 W10674770 BIN,CANTILEVER WPW10674770   $206.37
15 489214 SCREW 2006254   $11.19
16 W10347085 GASKET W11624997   $48.48
17 W11315302 CLIP   $9.14
18 W10518658 CONTROL BOARD W10898445   $391.84
19 W10258510 COVER   $64.27
20 W10499015 TUBE-WATER WPW10499015   $92.72
21 W10258502 COVER   $64.34
22 W10258540 SLIDE   $8.46
23 W10832970 CONTROL BOARD W10870822   $173.17
24 W10400825 RETAINER WPW10400825   $27.39
25 W11261136 GASKET W11504379   $16.94
26 W10646855 VENT W11684620   $17.63
27 W10258520 FLIPPER WPW10258520   $58.87
28 2198635 SPRING WP2198635   $69.89
29 2198634 PIN-FLIPPER WP2198634   $15.14
30 W10873942 GASKET-FIP W11544658   $201.67
30A W10873941 GASKET-FIP W10846057   $267.83
*The price can change whitout warning
