Brand: Whirlpool

Model: WFG525S0JT1 - RANGE/OVEN, GAS, FREESTANDING, 30 INCH

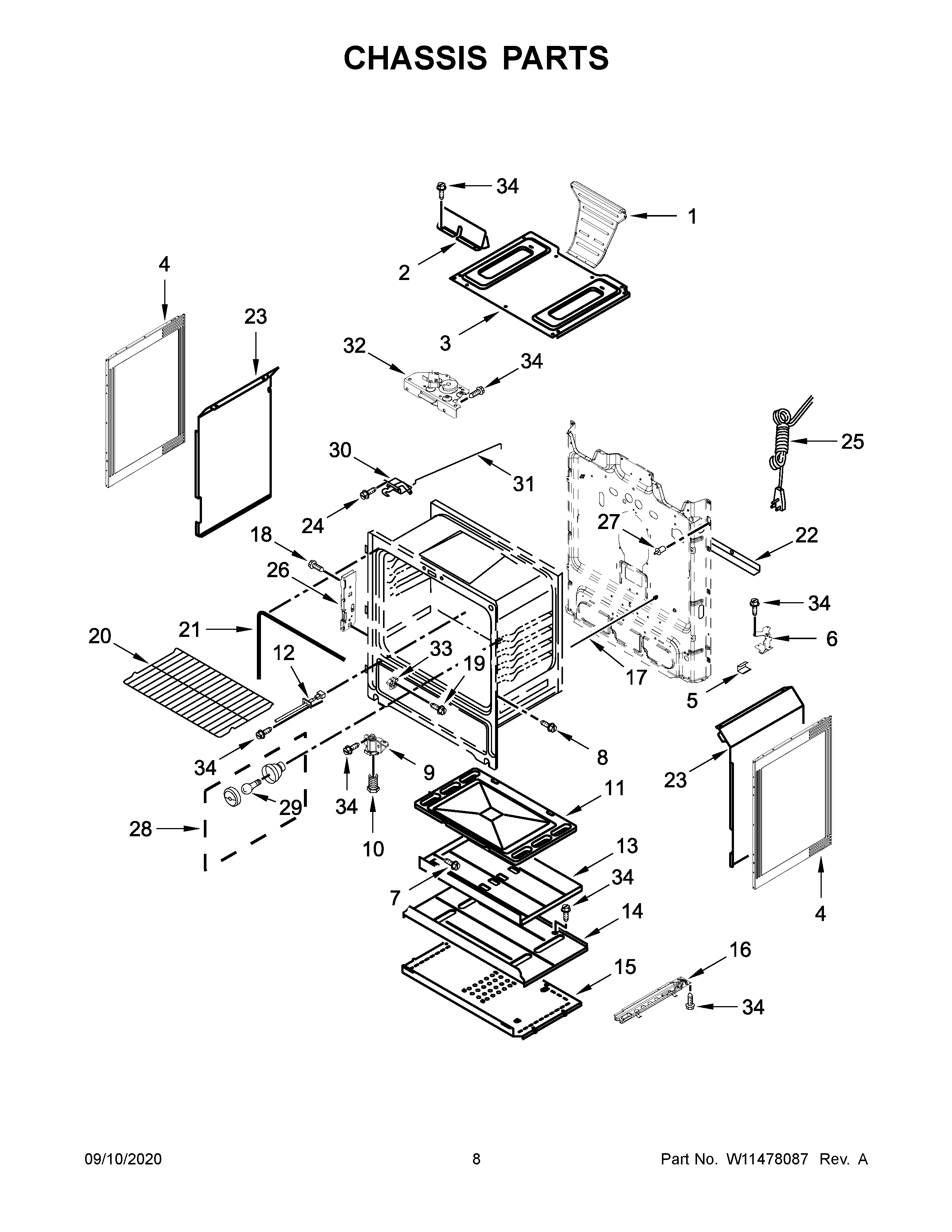

05 - CHASSIS PARTS

WFG525S0JT1
Plan number Part Number Description Replacement Price
1 W10153186 FLUE-OVEN W11457094   $117.14
2 8272747 SHIELD-HT WP8272747   $0.00
3 W11379351 BOX-BURNER   $47.21
4 W10162246 PANEL-SIDE   $152.85
5 W10137382 CLIP   $37.20
6 8523249 BRKT-SUPRT   $60.59
7 W10362924 SCREW W11233072   $12.16
8 3196560 SCREW W11169708   $12.72
9 W10341186 FOOT-LEVEL WPW10341186   $25.57
10 W10058460 FOOT - LEVEL WPW10058460   $4.61
11 3195097 BOTTM-OVEN WP3195097   $172.45
12 W10586204 SENSOR W10833885   $174.55
13 8053967 BAFFLE-HT   $236.70
14 8053969 SHIELD-HT   $81.44
15 8053968 SHIELD-HT   $67.66
16 W10390008 ASM BASE RAIL - CLIP,RIGHT WPW10306546   $102.17
16A W10390007 ASM BASE RAIL - CLIP,RIGHT WPW10306546   $102.17
17 W11370462 ROD-DOOR   $51.83
18 W10031780 SCREW W10777162   $6.89
19 3400080 SCREW W11684512   $11.19
20 W10268578 RACK, OVEN W11520287   $42.29
21 W10658354 SEAL, DOOR WPW10658354, W11542153     Call to order
22 W10435470 BRACE   $60.33
23 W11379353 RETAINER   $203.15
23A W11379943 RETAINER   $203.15
24 3196560 SCREW W11169708   $12.72
25 W10624590 POWER CORD W11023766   $87.98
26 W10289077 HINGE-RECEIVER W10647259   $6.32
27 W10627802 INTERRUPTEUR DE PORTE WP9757262   $122.85
28 W11175594 SOCKET ASSY W11594027   $61.17
29 W10571723 BULB-LIGHT WPW10571723   $55.22
30 9761013 DOOR-LATCH WP9761013   $198.07
31 W10078370 ROD-LATCH   $70.63
32 W10107820 LATCH ASM,REAR (1 SW)HTI MTR WPW10107820   $239.18
33 W10674705 GLIDE,DRAWER W10807823   $16.44
34 3196178 SCREW W11233072   $12.16
NI N/P FOLLOWING PARTS NOT ILLUSTRATED   $0.00
NI 8524099 INSULATION W11684915   $89.82
NI W10180437 INSULATION W11688737   $89.82
*The price can change whitout warning
