Brand: Whirlpool
Model: WDF331PAHB1 - DISHWASHER, UNDERCOUNTER

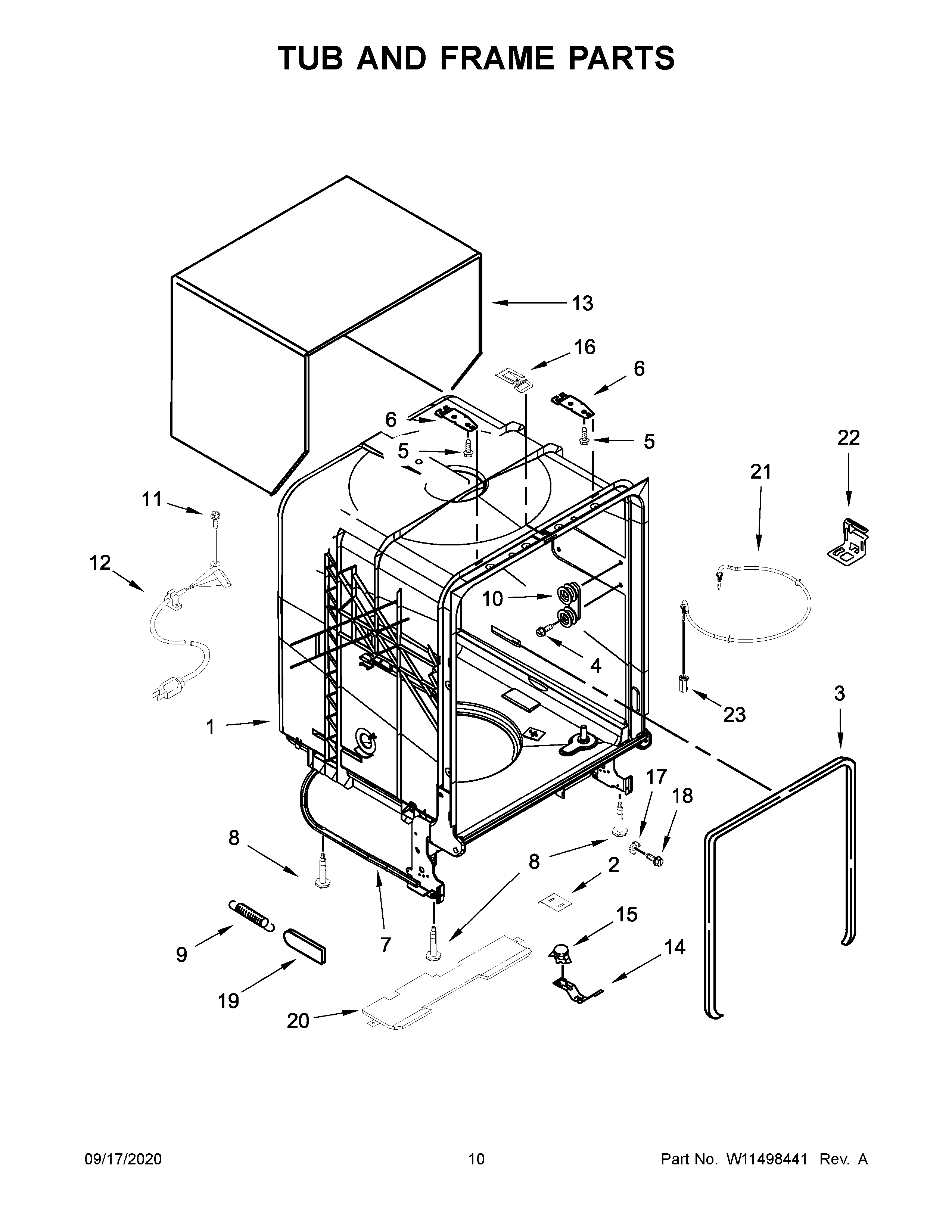

06 - TUB AND FRAME PARTS
- 01 - COVER SHEET
- 02 - DOOR AND PANEL PARTS
- 03 - CONTROL PANEL AND LATCH PARTS
- 04 - INNER DOOR PARTS
- 05 - FILL, DRAIN AND OVERFILL PARTS
- 06 - TUB AND FRAME PARTS
- 07 - PUMP, WASHARM AND MOTOR PARTS
- 08 - UPPER WASH AND RINSE PARTS
- 09 - UPPER RACK AND TRACK PARTS
- 10 - LOWER RACK PARTS
- 11 - OPTIONAL PARTS (NOT INCLUDED)
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W10349289 | TUB ASM-PLST GR, SERVICE-SHORT | W11513977 | $453.88 | ||
| 2 | W10321574 | SHIELD | $20.08 | |||
| 3 | W10524469 | SEAL TUB | W11498831 | $21.70 | ||
| 4 | W10341745 | SCREW | W10817436 | $6.85 | ||
| 5 | 3400061 | SCREW | W11700520 | $11.19 | ||
| 6 | 8269145 | BRACKET-MTG | WP8269145 | $14.76 | ||
| 7 | W10304231 | SUPPORT | WPW10304231, W11680335 | $55.05 | ||
| 8 | W10619352 | LEVELLER LEG | 8193716 | $67.41 | ||
| 9 | W10337934 | SPRING | WPW10337934 | $28.83 | ||
| 10 | 8575897 | WHEEL-TUB | WP8575897 | $6.51 | ||
| 11 | 3400892 | SCREW | WP3400892 | $6.50 | ||
| 12 | W10831279 | CORD-POWER | $110.04 | |||
| 13 | W10866979 | SHIELD | W10896113 | $47.75 | ||
| 14 | W10539489 | BRCKT-STAT | $14.20 | |||
| 15 | 3371618 | THERMOSTAT | WP661566 | $36.05 | ||
| 16 | 8580309 | STRIKE PLATE-VOYAGER | WP8580309 | $76.45 | ||
| 17 | 3378128 | WASHER | WP3378128 | $5.68 | ||
| 18 | 3400014 | SCREW | WP3400014 | $5.63 | ||
| 19 | 8268990 | BUSHINGS - DOOR SPRING | WP8268990 | $89.57 | ||
| 20 | W10819539 | SOUND INSULATION, BOTTOM | W11747584 | $0.00 | ||
| 21 | W10441445 | HEATER | W10518394 | $60.13 | ||
| 22 | W10732961 | BRACKET | W11027055 | $29.34 | ||
| 23 | W10477552 | NUT-TERMINAL | WPW10477552 | $6.28 |
*The price can change whitout warning
