Brand: Maytag
Model: DWC8240AAW - DISHWASHER

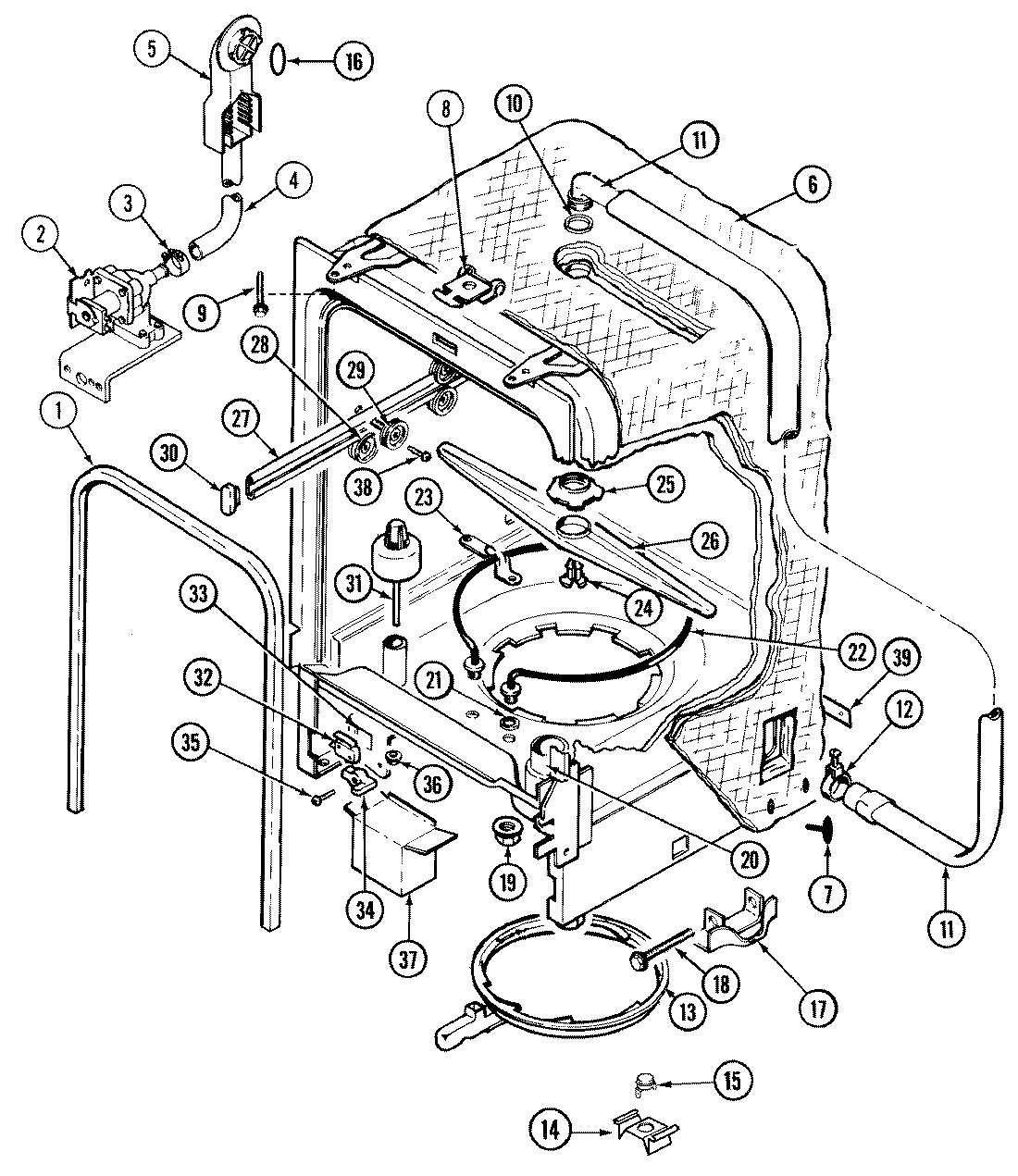

08 - TUB
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 902894 | BLACK DOOR GASKET | WP902894 | $74.94 | ||
| 2 | 903406 | VALVE, WATER | $0.00 | |||
| 2 | 912365 | SCREW | WP489128 | $9.34 | ||
| 3 | 911856 | CLAMP | WP596669 | $6.27 | ||
| 4 | 912633 | HOSE, INJECTOR | $0.00 | |||
| 5 | 912533 | INJECTOR, WATER | $0.00 | |||
| 5 | 912644 | SEAL RING, INJECTOR | $0.00 | |||
| 6 | 912655 | INSULATION | WPW10223013 | $58.06 | ||
| 6 | 99001057 | FASTENER, PANEL | $0.00 | |||
| 6 | 99001076 | STRAP, INSULATION | $0.00 | |||
| 7 | 911917 | FASTENER, INSULATION | $0.00 | |||
| 8 | 912649 | HOOK, LATCH | $0.00 | |||
| 8 | 912648 | SPRING | $4.83 | |||
| 8 | 912650 | BRACKET | 6-912650 | $44.11 | ||
| 8 | Y912873 | SCREW | $5.04 | |||
| 9 | 912625 | SCREW | WP1163283 | $6.31 | ||
| 10 | 910069 | WASHER | $34.15 | |||
| 11 | 912647 | HOSE, TOP SHOWER | $0.00 | |||
| 12 | 200900 | CLAMP | WPW10548433 | $2.14 | ||
| 13 | Y912686 | RING, LOCKING | $0.00 | |||
| 14 | 99001008 | CLIP, THERMOSTAT | $0.00 | |||
| 14 | Y912698 | BRACKET, THERMOSTAT | $0.00 | |||
| 15 | 99001006 | THERMOSTAT, LIMITING | $0.00 | |||
| 15 | 99001005 | THERMOSTAT, BOOST (36TX02) | $0.00 | |||
| 15 | 903078 | THERMOSTAT | $0.00 | |||
| 15 | 903120 | THERMOSTAT BOOST (F125) | $19.66 | |||
| 16 | 912644 | SEAL RING, INJECTOR | $0.00 | |||
| 17 | 912651 | BRACKET, ADJUSTING | $0.00 | |||
| 18 | 912613 | SCREW, ADJUSTING BRACKET | $5.04 | |||
| 19 | 912645 | NUT, HEATING ELEMENT | $0.00 | |||
| 20 | 912622 | SCREW | $0.00 | |||
| 20 | Y912659 | CAP, AIR INLET | $0.00 | |||
| 21 | 910603 | WASHER, HEATING ELEMENT | $0.00 | |||
| 22 | 903096 | ELEMENT, HEATING | $0.00 | |||
| 23 | Y912541 | BRACKET, HEATING ELEMENT | $0.00 | |||
| 24 | Y912681 | RETAINER, SNAP SPRAY | WPW10116811 | $0.00 | ||
| 25 | 912680 | OUTLET- SN | WP912680 | $0.00 | ||
| 26 | 903079 | SPRAY ARM ASSY | WP903079 | $52.71 | ||
| 27 | Y912545 | TRACK RACK | WPY912545 | $70.92 | ||
| 28 | 912548 | WHEEL- TUB | WP99002342 | $10.36 | ||
| 29 | Y912798 | WASHER | WPY912798 | $5.97 | ||
| 30 | 912546 | STOPPER RACK | WP99002135 | $4.61 | ||
| 31 | Y912687 | FLOAT | WP99002363 | $6.27 | ||
| 32 | 900882 | SWITCH | WP99002560 | $58.17 | ||
| 32 | 912012 | SCREW | $0.00 | |||
| 33 | 912656 | BRACKET- W | $5.55 | |||
| 33 | 912365 | SCREW | WP489128 | $9.34 | ||
| 34 | 912014 | LEVER, ACTUATOR | $0.00 | |||
| 35 | 912015 | PIN, LEVER PIVOT | 99002531 | $0.00 | ||
| 36 | 911265 | NUT | WP911265 | $5.97 | ||
| 37 | 912563 | BOX, TERMINAL | $0.00 | |||
| 37 | 912366 | SCREW-SCRAPER HEAD (BLK) | WP6-912366 | $5.97 | ||
| 38 | 912549 | TUB WHEEL ASSY (GRAY) | WP99002947 | $10.86 | ||
| 39 | 912365 | SCREW | WP489128 | $9.34 | ||
| 39 | 912654 | STRAP, SUPPORT | $0.00 |
*The price can change whitout warning
