Brand: Maytag
Model: JGD3430BS00 - COOKTOP, GAS, BUILT-IN, DOWNDRAFT, 30 INCH

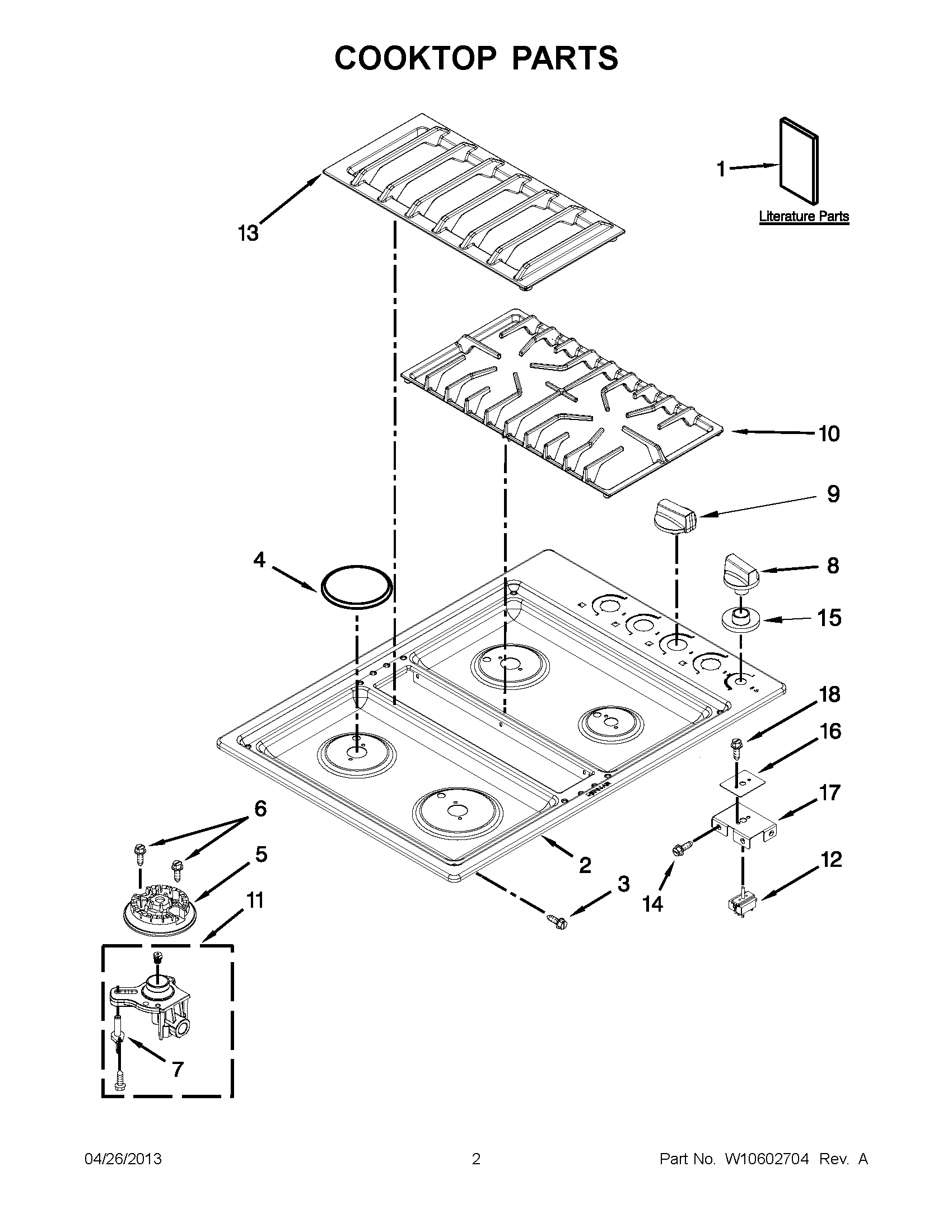

01 - COOKTOP PARTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W10574732 | INSTRUCTIONS, INSTALLATION | $0.00 | |||
| 1 | W10222821 | DIAGRAM, WIRING (ENGLISH) | $0.00 | |||
| 1 | W10222822 | DIAGRAM, WIRING (FRENCH) | $0.00 | |||
| 1 | W10555863 | GUIDE, USE & CARE | $0.00 | |||
| 1 | W10240007 | INSTRUCTIONS LP CONVERSION | $0.00 | |||
| 1 | 8106P068-60 | CARD, FLOW TESTER | $0.00 | |||
| 1 | 9762761 | TIPS, SAFE COOKING (ENGLISH) | $0.00 | |||
| 1 | W10065852 | TIPS, SAFE COOKING (FRENCH) | 9759133 | $0.00 | ||
| 2 | W10555854 | COOKTOP | WPW10555854 | $281.82 | ||
| 2 | W10555855 | COOKTOP | WPW10555855 | $282.59 | ||
| 2 | W10555853 | TOP, MAIN (STAINLESS) | $0.00 | |||
| 3 | 7101P427-60 | SCREW | WPY706189 | $5.97 | ||
| 4 | 7504P299-60 | CAP-BURNER | WP7504P299-60 | $77.46 | ||
| 4 | 7504P298-60 | CAP-BURNER | WP7504P298-60 | $53.10 | ||
| 4 | 7504P300-60 | CAP-BURNER | WP7504P300-60 | $99.48 | ||
| 4 | 7504P295-60 | CAP-BURNER | $77.22 | |||
| 4 | 7504P294-60 | CAP-BURNER | $53.79 | |||
| 4 | 7504P296-60 | CAP, BURNER (WETSTONE (LEFT FRONT)) | $0.00 | |||
| 5 | 7505P304-60 | BURNER ASSY (SMALL) | 74007734 | $100.58 | ||
| 5 | 7505P305-60 | BURNER ASSY | 74007735 | $117.75 | ||
| 5 | 7505P306-60 | BURNER ASSY | 74007736 | $132.64 | ||
| 6 | 7101P426-60 | SCREW | WP90767 | $6.30 | ||
| 7 | 7432P121-60 | IGNITOR | WP74009336 | $33.51 | ||
| 8 | W10551840 | KNOB | $91.70 | |||
| 8 | W10551841 | KNOB | $86.28 | |||
| 8 | W10549673 | KNOB | $30.02 | |||
| 9 | W10559476 | KNOB | $79.79 | |||
| 9 | W10559477 | KNOB | $77.11 | |||
| 9 | W10559475 | KNOB | WPW10559475 | $47.63 | ||
| 10 | W10203095 | GRATE-BRNR | WPW10203095 | $173.42 | ||
| 10 | W10204541 | GRATE-BRNR | $173.73 | |||
| 11 | 7527P031-60 | HOLDER,ORIFICE | WP7527P031-60 | $89.49 | ||
| 11 | 7527P042-60 | HOLDER,ORIFICE | 74009553 | $59.99 | ||
| 11 | 7527P002-60 | HOLDER,ORIFICE | WP7527P002-60 | $65.70 | ||
| 11 | 7527P003-60 | HOLDER,ORIFICE | WP7527P003-60 | $62.54 | ||
| 12 | 4456836 | SWITCH,BLOWER SPEED CONTROL | WP4456836 | $188.86 | ||
| 13 | W10203097 | GRILLE, AIR (BLACK) | $0.00 | |||
| 13 | W10204544 | GRILLE | $219.24 | |||
| 14 | 7101P427-60 | SCREW | WPY706189 | $5.97 | ||
| 15 | W10559486 | GROMMET | W11544657 | $33.50 | ||
| 15 | W10559485 | GROMMET | $69.80 | |||
| 15 | W10559494 | GROMMET | WPW10559494 | $64.39 | ||
| 16 | 7201P077-60 | GASKET-INF. SWITCH | WP71002569 | $7.06 | ||
| 17 | W10235925 | BRACKET, SWITCH MOUNT | $0.00 | |||
| 18 | 7101P309-60 | SCREW | WP7101P309-60 | $6.63 |
*The price can change whitout warning
