Brand: Maytag

Model: MGR7662WW1 - GAS RANGE

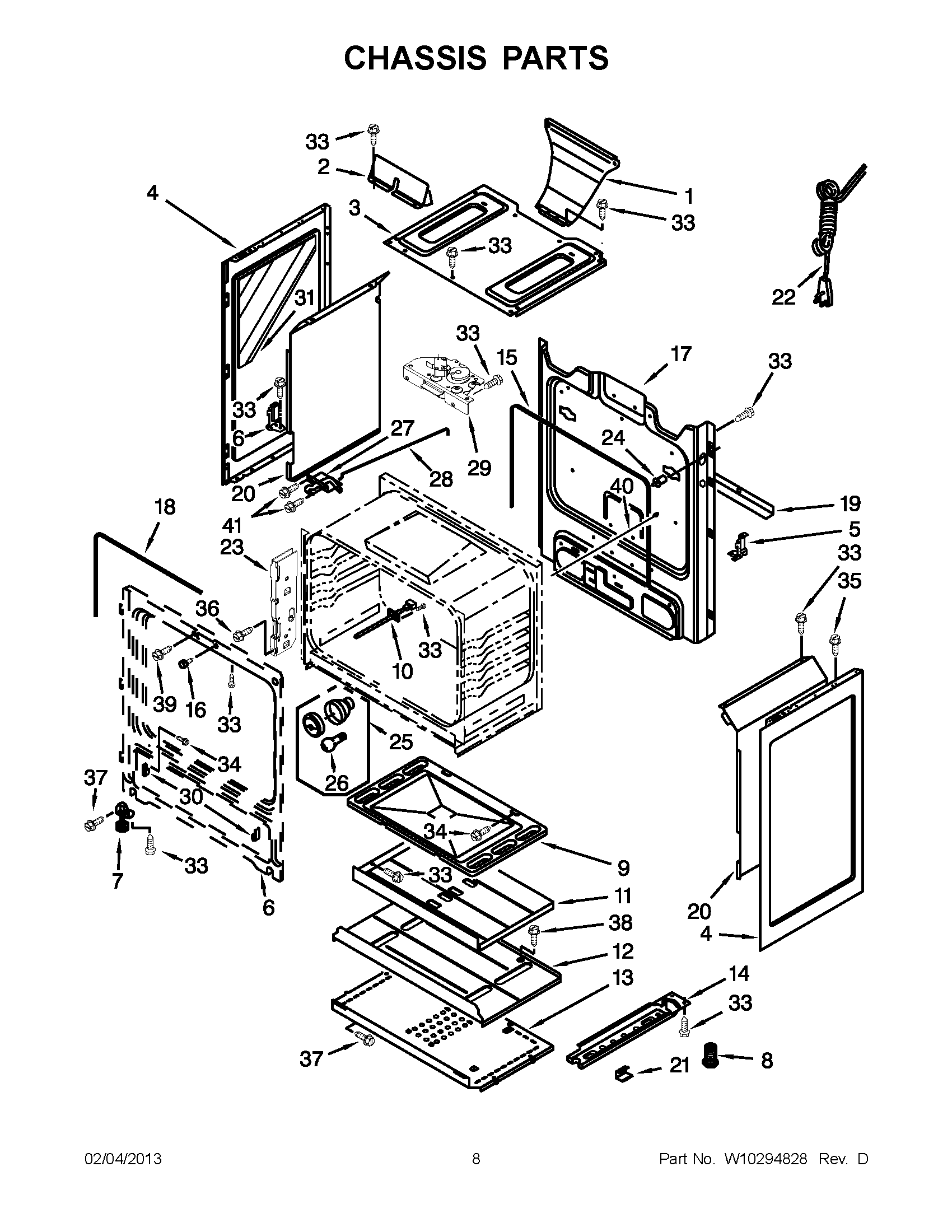

04 - CHASSIS PARTS

MGR7662WW1
Plan number Part Number Description Replacement Price
1 W10153186 FLUE-OVEN W11457094   $117.14
2 8272747 SHIELD-HT WP8272747   $0.00
3 8273036 BOX-BURNER W11379351   $47.21
4 8053830 PANEL-SIDE WPW10575396   $140.80
4 8053832 PANEL, SIDE (BLACK)   $0.00
4 8272519 PANEL-SIDE W10162246   $152.85
5 8523249 BRKT-SUPRT   $60.59
6 N/P FRAME, FRONT (NOT SERVICED)   $0.00
7 3196037 FOOT-LEVEL WP3196037   $63.53
8 W10058460 FOOT - LEVEL WPW10058460   $4.61
9 3195097 BOTTM-OVEN WP3195097   $172.45
10 W10181986 SENSOR WPW10181986   $116.55
11 8053967 BAFFLE-HT   $236.70
12 8053969 SHIELD-HT   $81.44
13 8053968 SHIELD-HT   $67.66
14 9760314 ASM BASE RAIL - CLIP,RIGHT WPW10306546   $102.17
15 W10008830 Seal, Oven Flange   $0.00
16 9758701 SPACER W10877054   $41.38
17 W10222733 Back, Main   $0.00
18 8522416 SEAL, DOOR WPW10658354, W11542153     Call to order
19 8053971 Brace, Main Back   $0.00
20 9761449 RETAINER   $253.81
20 9761448 RETAINER   $253.81
21 W10137382 CLIP   $37.20
22 9757891 CORD-POWER WP9757891   $99.30
23 9760407 HINGE-RECEIVER W10647259   $6.32
24 9757262 INTERRUPTEUR DE PORTE WP9757262   $122.85
25 3196701 SOCKET ASSY W11594027   $61.17
26 311255 Bulb, Oven Light 8009, 40A15F, WG03F02051   $0.00
27 9761013 DOOR-LATCH WP9761013   $198.07
28 W10078370 ROD-LATCH   $70.63
29 W10107820 LATCH ASM,REAR (1 SW)HTI MTR WPW10107820   $239.18
30 W10114344 GLIDE-DRAWER WPW10114344   $4.61
31 W10182346 INSULATION   $69.45
33 3196178 SCREW W11233072   $12.16
34 3196152 SCREW   $0.00
35 3196166 SCREW   $5.28
35 3196168 SCREW WP3400832   $6.32
36 W10031780 SCREW W10777162   $6.89
37 3196179 SCREW WP98008545   $15.51
38 3196177 SCREW WP7101P246-60   $5.40
39 3196168 SCREW WP3400832   $6.32
40 9757239 ROD,DOOR   $73.85
41 3196560 SCREW W11169708   $12.72
NI 8524099 INSULATION W11684915   $89.82
NI W10180437 INSULATION W11688737   $89.82
NI 8272613 INSULATION 8053915   $9.72
*The price can change whitout warning
