Brand: Maytag
Model: MDE16CSAGW - ELECTRIC DRYER

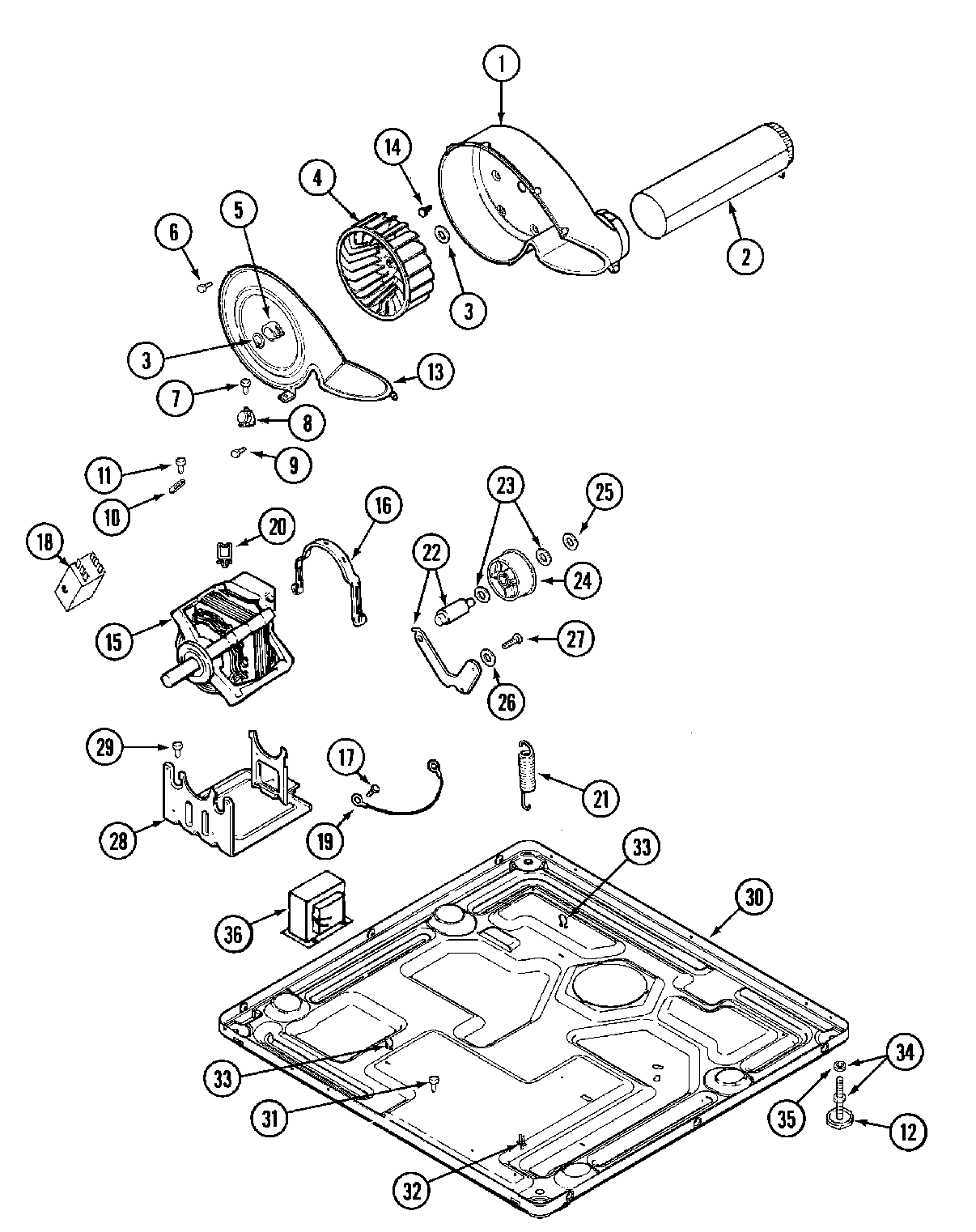

07 - MOTOR DRIVE
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 001 | 33001789 | HOUSING | WP33001789 | $130.87 | ||
| 002 | 22001995 | SCREW, EXHAUST DUCT ASSEMBLY | WP22001995, W11573574 | $0.00 | ||
| 002 | 33001800 | DUCT ASSY., EXHAUST | $0.00 | |||
| 003 | 410233 | RING-RETAINER | WP9703438 | $3.80 | ||
| 004 | 33001790 | WHEEL, BLOWER | $47.33 | |||
| 004 | 33002797 | WHEEL BLOWER | WP33002797 | $136.50 | ||
| 005 | 312967 | CLAMP | WP312967 | $10.92 | ||
| 006 | 33001855 | SCREW | WP33002917 | $7.30 | ||
| 007 | Y313561 | SCREW | WPY313561 | $7.31 | ||
| 008 | 303392 | AJUSTABLE THERMOSTAT | WP694674 | $80.03 | ||
| 008 | 306967 | THERMOSTAT, MULTI-TEMP | WP306967 | $0.00 | ||
| 008 | 33001306 | WIRE HARNESS, THERMOSTAT | $0.00 | |||
| 009 | 22001996 | SCREW | WP489128 | $10.01 | ||
| 010 | 33001762 | FUSE, THERMAL | WP33001762 | $59.53 | ||
| 011 | NLA | SCREW, THERMAL CUT-OFF | WG03A02017 | $0.00 | ||
| 012 | Y314137 | PAD | WPY314137 | $8.33 | ||
| 013 | 33001796 | COVER, BLOWER HOUSING | $0.00 | |||
| 014 | 314818 | SCREW, BLOWER HOUSING | $0.00 | |||
| 015 | 33001853 | MOTOR (W/PULLEY) | W10410997 | $188.31 | ||
| 015 | 33001945 | MOTOR DRIVE 50 HZ | W10197708 | $427.49 | ||
| 015 | 33002237 | MOTOR (W/PULLEY) | W10410997 | $188.31 | ||
| 015 | 33002462 | MOTOR (W/PULLEY) | W10410997 | $188.31 | ||
| 015 | 33002463 | MOTOR DRIVE 50 HZ | W10197708 | $427.49 | ||
| 015 | 33002478 | MOTOR (W/PULLEY) | W10410997 | $188.31 | ||
| 015 | 33002479 | MOTOR DRIVE 50 HZ | W10197708 | $427.49 | ||
| 015 | 33002795 | MOTOR. DRIVE 60HZ (115V) | WP33002795 | $263.43 | ||
| 016 | Y015825 | CLIP-MOTOR | WPY015825 | $21.51 | ||
| 017 | 910343 | SCREW | WP488234 | $6.42 | ||
| 018 | 33001854 | MOTOR (W/PULLEY) | W10410997 | $188.31 | ||
| 018 | NLA | SWITCH, MOTOR | WG03A02017 | $0.00 | ||
| 019 | 901220 | WIRE, GROUND | $0.00 | |||
| 020 | Y310376 | CLIP, WIRE HARNESS | $0.00 | |||
| 021 | 33001754 | ASSEMBLY | 33002459 | $7.34 | ||
| 021 | 33002157 | GROMMET | $0.00 | |||
| 021 | 33002460 | ASSEMBLY | 33002459 | $7.34 | ||
| 021 | 33002461 | PLUG FOR SPRING | WP33002461 | $0.00 | ||
| 022 | 33001782 | IDLER ARM & SHAFT ASSY | WP6-3705180 | $60.86 | ||
| 023 | Y312527 | IDLER WASHER | WPY312527 | $10.58 | ||
| 024 | 33001783 | IDLER PULLEY & BEARING ASSY | WP6-3700340 | $27.60 | ||
| 025 | 312958 | RETAINER RING, IDLER SHAFT | WP354987 | $10.81 | ||
| 026 | 315772 | SLEEVE | WP315772 | $10.62 | ||
| 027 | Y014874 | SCREW | WPY014874 | $7.13 | ||
| 028 | Y313561 | SCREW | WPY313561 | $7.31 | ||
| 028 | 33001752 | SUPPORT, MOTOR | $0.00 | |||
| 028 | 33002466 | SUPPORT, MOTOR | $0.00 | |||
| 029 | Y313561 | SCREW | WPY313561 | $7.31 | ||
| 030 | 33002622 | BASE, (LWR) | $0.00 | |||
| 030 | NLA | BASE | WG03A02017 | $0.00 | ||
| 031 | 22001078 | SCREW | WP3177991 | $6.62 | ||
| 032 | 315471 | RETAINER, WIRE | WP22003298 | $0.00 | ||
| 033 | 410490 | SPRING, WIRE HARNESS | $0.00 | |||
| 034 | Y305086 | ADJUSTABLE LEG & NUT | WPY305086, W10176519 | $0.00 | ||
| 035 | Y052740 | NUT | WP62739 | $7.25 | ||
| 036 | 211294 | SCREW | WP90767 | $7.20 | ||
| 036 | 33001821 | TRANSFORMER | $0.00 | |||
| 036 | Y313559 | SCREW | WP90767 | $7.20 |
*The price can change whitout warning
