Brand: Maytag

Model: MGR7775WB2 - GAS RANGE

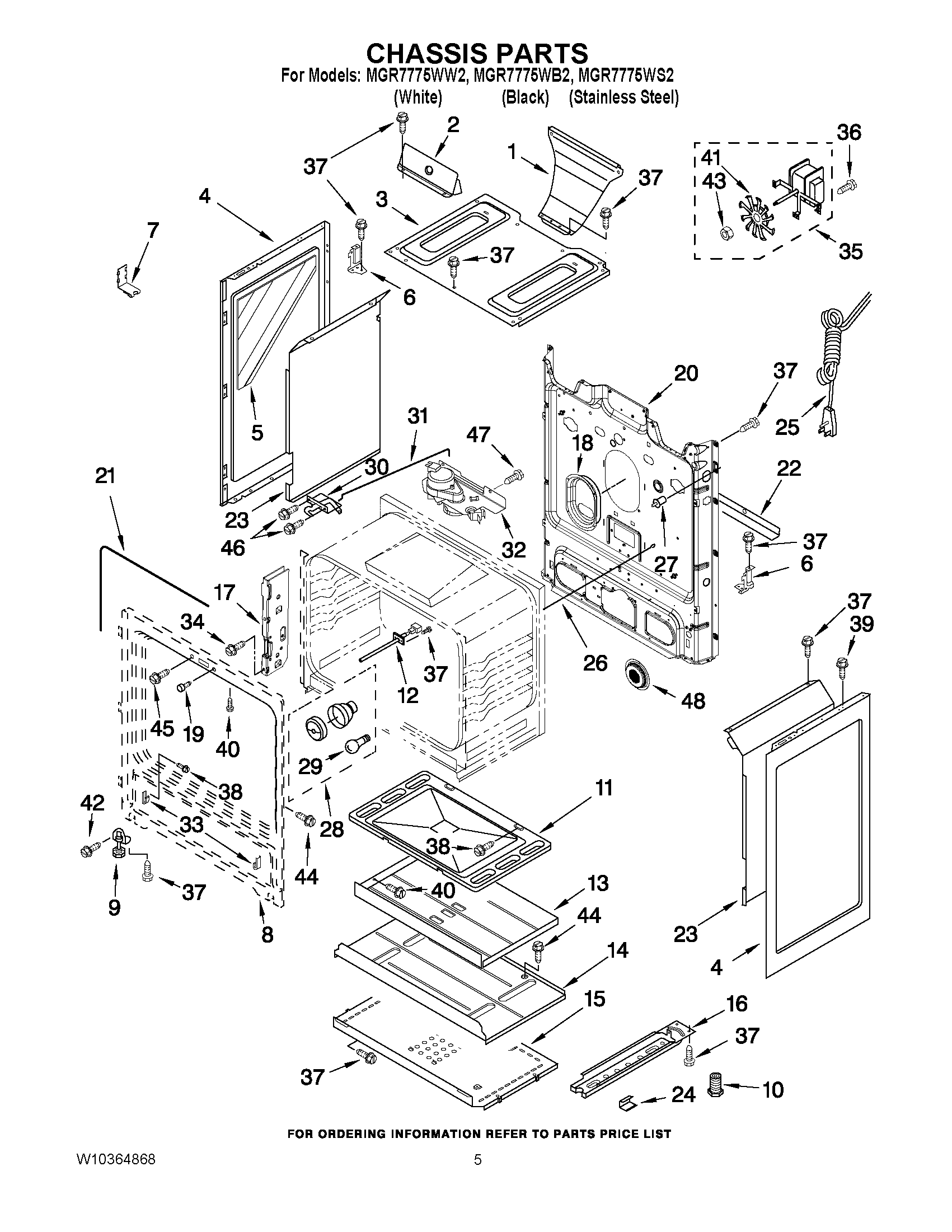

04 - CHASSIS PARTS

MGR7775WB2
Plan number Part Number Description Replacement Price
1 W10153186 FLUE-OVEN W11457094   $117.14
2 8272747 SHIELD-HT WP8272747   $0.00
3 8273036 BOX-BURNER W11379351   $47.21
4 8053830 PANEL-SIDE WPW10575396   $140.80
4 8053832 PANEL, SIDE (BLACK)   $0.00
5 W10182346 INSULATION   $69.45
6 8523249 BRKT-SUPRT   $60.59
7 W10137382 CLIP   $37.20
8 N/P FRAME, FRONT (NOT SERVICED)   $0.00
9 3196037 FOOT-LEVEL WP3196037   $63.53
10 W10058460 FOOT - LEVEL WPW10058460   $4.61
11 3195097 BOTTM-OVEN WP3195097   $172.45
12 W10181986 SENSOR WPW10181986   $116.55
13 8053967 BAFFLE-HT   $236.70
14 8053969 SHIELD-HT   $81.44
15 8053968 SHIELD-HT   $67.66
16 9760314 ASM BASE RAIL - CLIP,RIGHT WPW10306546   $102.17
17 9760407 HINGE-RECEIVER W10647259   $6.32
18 W10134126 COVER   $19.22
19 9758701 SPACER W10877054   $41.38
20 W10134118 Back, Main   $0.00
21 8522416 Seal, Oven WPW10658354, W11542153     Call to order
22 8053971 Brace, Main Back   $0.00
23 9761449 RETAINER   $253.81
23 9761448 RETAINER   $253.81
24 W10137382 CLIP   $37.20
25 9757891 CORD-POWER WP9757891   $99.30
26 9757239 ROD,DOOR   $73.85
27 9757238 SWITCH,LIGHT W11243424   $106.33
28 3196701 SOCKET ASSY W11594027   $61.17
29 311255 Bulb, Oven Light 8009, 40A15F, WG03F02051   $0.00
30 9761013 DOOR-LATCH WP9761013   $198.07
31 W10078370 ROD-LATCH   $70.63
32 W10107830 LATCH-DOOR WPW10107830   $298.94
33 W10114344 GLIDE-DRAWER WPW10114344   $4.61
34 W10031780 SCREW W10777162   $6.89
35 W10167915 Fan Motor, Conv W10794440, W11676354     Call to order
36 4449809 SCREW WP4449809   $6.32
37 3196178 SCREW W11233072   $12.16
38 3196152 SCREW   $0.00
39 3196166 SCREW   $5.28
39 3196168 SCREW WP3400832   $6.32
40 3196176 SCREW W11233072   $12.16
41 W10116351 FAN BLADE CONVECTION W10758272   $6.34
42 3196179 SCREW WP98008545   $15.51
43 W10213748 NUT W11444600   $11.19
44 3196177 SCREW WP7101P246-60   $5.40
45 3196168 SCREW WP3400832   $6.32
46 3196560 SCREW W11169708   $12.72
47 3196160 SCREW W10491985   $6.68
48 W10134124 FAN COVER WPW10134124   $69.68
NI 8524099 INSULATION W11684915   $89.82
NI W10180437 INSULATION W11688737   $89.82
*The price can change whitout warning
