Brand: Maytag

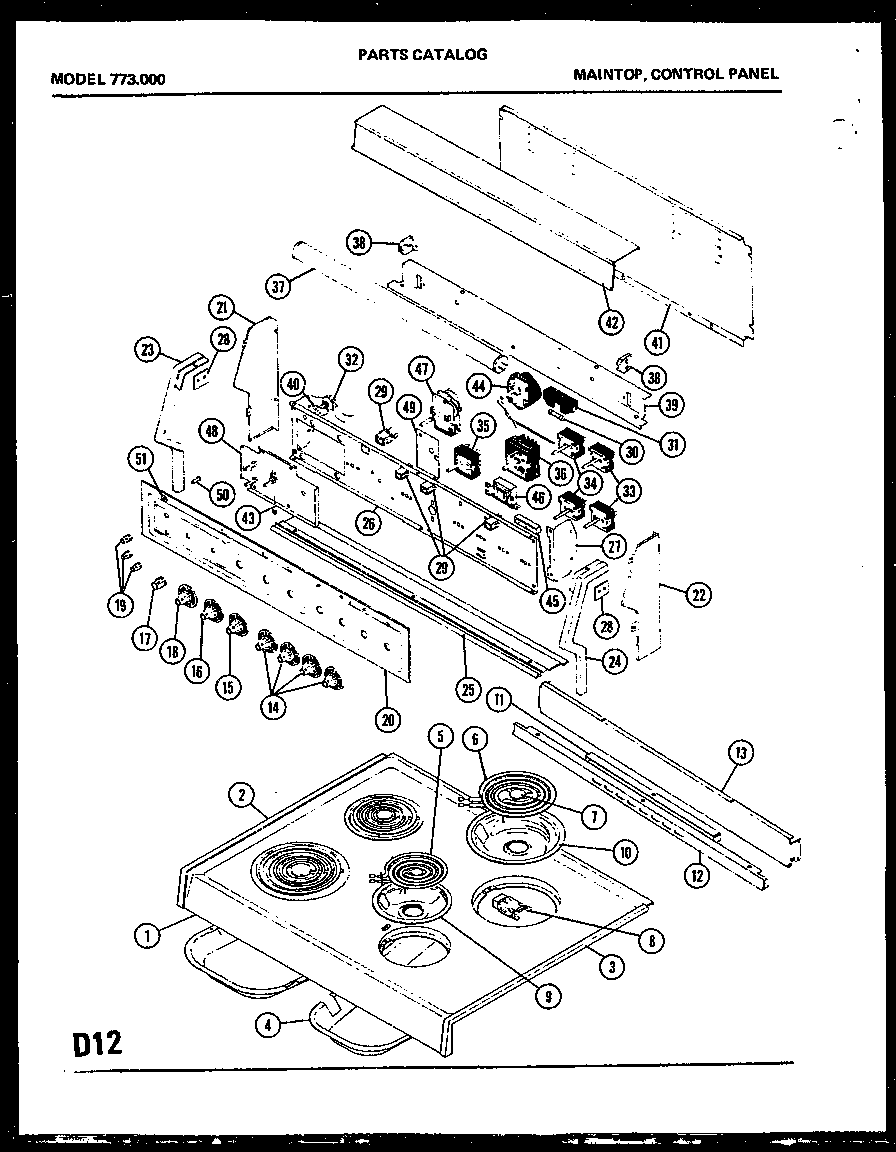

Model: 773.000 - MICROWAVE
02 - MAINTOP
- 01 - COOKTOP PARTS
- 02 - MAINTOP
- 04 - Page 1
- 11 - CONTROL BOX PARTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | M82D127 | MAIN TOP H-G | $0.00 | |||
| 1 | M1D794 | CLIP COOKTOP (10) | $0.00 | |||
| 1 | M1D471 | MOUNTING SCREW | $0.00 | |||
| 1 | M82D126 | COOKTOP | $0.00 | |||
| 1 | M82D128 | NOT AVAILABLE | $0.00 | |||
| 1 | M82D129 | NOT AVAILABLE | $0.00 | |||
| 1 | M82D130 | COOKTOP- | $0.00 | |||
| 2 | M1D471 | MOUNTING SCREW | $0.00 | |||
| 2 | M75D32 | NOT AVAILABLE | $0.00 | |||
| 3 | M75D31 | NOT AVAILABLE | $0.00 | |||
| 3 | M1D471 | MOUNTING SCREW | $0.00 | |||
| 4 | M1D794 | CLIP COOKTOP (10) | $0.00 | |||
| 4 | M1D792 | NOT AVAILABLE | $0.00 | |||
| 4 | M44D16 | NOT AVAILABLE | $0.00 | |||
| 5 | M61D25 | SURFACE ELEM. 6`` 240 V. 1250 W | $0.00 | |||
| 6 | M61D26 | ELEMENT, 5 TURN (2100W) 8`` | $0.00 | |||
| 7 | M2D422 | MEDALLION S.S. | $0.00 | |||
| 8 | M5D117 | KIT, TOP ELEMENT TERM BLOCK | $0.00 | |||
| 8 | M1D129 | SCREW (25) | $0.00 | |||
| 9 | M44D11 | BURNER BOWL | $0.00 | |||
| 10 | M44D12 | BOWL, BURNER 8`` (CHROME) | $0.00 | |||
| 11 | M1D526 | SCREW (25) | $0.00 | |||
| 11 | M8D164 | PLENUM | $0.00 | |||
| 12 | M1D129 | SCREW (25) | $0.00 | |||
| 12 | M52D129 | VENT EXTRUSION | $0.00 | |||
| 13 | M82D145 | NOT AVAILABLE | $0.00 | |||
| 13 | M82D146 | BACKSPLASH, AVOC | $0.00 | |||
| 13 | M82D147 | BACKSPLASH, CPR | $0.00 | |||
| 13 | M82D144 | BACKSPLASH, WHITE | $0.00 | |||
| 13 | M1D471 | MOUNTING SCREW | $0.00 | |||
| 13 | M82D148 | SPLASHER ALM/UAS-S/S 54528P25 | $0.00 | |||
| 14 | M6D216 | KNOB M6D95 | $0.00 | |||
| 15 | M6D240 | KNOB, SELECTOR | $0.00 | |||
| 16 | M6D210 | KNOB, THERMOSTAT | $0.00 | |||
| 17 | M6D261 | KNOB M/W TIMER KIT | $0.00 | |||
| 18 | M6D241 | VARL-COOK KNOB ASM | $0.00 | |||
| 19 | M6D159 | KNOB, RANGE CLOCK | $0.00 | |||
| 20 | M51D37 | C P GLASS | $0.00 | |||
| 21 | M1D485 | SCREW | $0.00 | |||
| 21 | M53D31 | SIDE COVER LT ALD | $0.00 | |||
| 21 | M53D29 | SIDE COVER LT COPR | $0.00 | |||
| 21 | M53D28 | SIDE COVER LT AVOC | $0.00 | |||
| 21 | M53D27 | SIDE COVER LT H-G | $0.00 | |||
| 21 | M53D10 | NOT AVAILABLE | $0.00 | |||
| 22 | M53D14 | SIDE COVER RT WHT | $0.00 | |||
| 22 | M53D24 | NOT AVAILABLE | $0.00 | |||
| 22 | M53D25 | NOT AVAILABLE | $0.00 | |||
| 22 | M53D30 | SIDE COVER RT ALD | $0.00 | |||
| 22 | M1D485 | SCREW | $0.00 | |||
| 22 | M53D26 | SIDE COVER RT COPR | $0.00 | |||
| 23 | M1D654 | SCREW (25) | $0.00 | |||
| 23 | M7D288 | SIDE TRIM LEFT | $0.00 | |||
| 24 | M1D654 | SCREW (25) | $0.00 | |||
| 24 | M7D287 | END CAP R H M7D287 | $0.00 | |||
| 25 | M52D131 | NOT AVAILABLE | $0.00 | |||
| 25 | M1D533 | SCREW (25) | $0.00 | |||
| 26 | M1D526 | SCREW (25) | $0.00 | |||
| 26 | M52D174 | CONT PNL MTG | $0.00 | |||
| 27 | M7D289 | BKT CONTROL PANEL MTG | $0.00 | |||
| 27 | M1D526 | SCREW (25) | $0.00 | |||
| 28 | M2D323 | BRACKET, TRIM | $0.00 | |||
| 29 | M9D68 | INDICATOR LIGHT | $0.00 | |||
| 30 | M4D78 | FUSE-15AMP | $0.00 | |||
| 31 | M1D31 | NUT K | $0.00 | |||
| 31 | M1D69 | No.6 PAN HD MACHINE SCREW | $0.00 | |||
| 31 | M5D241 | JW HOLDER | $0.00 | |||
| 32 | M1D656 | NOT AVAILABLE | $0.00 | |||
| 32 | M14D119 | SWITCH-SURFACE LITE | $0.00 | |||
| 33 | M14D178 | SWITCH SURFACE | $0.00 | |||
| 33 | M1D536 | SCREW 8-32 (25) | $0.00 | |||
| 34 | M14D179 | KIT, SWITCH | $0.00 | |||
| 34 | M1D536 | SCREW 8-32 (25) | $0.00 | |||
| 35 | M1D536 | SCREW 8-32 (25) | $0.00 | |||
| 35 | M14D202 | SWITCH, SEL | $0.00 | |||
| 36 | M18D26 | THERMOSTAT KIT | $0.00 | |||
| 36 | M2D482 | NOT AVAILABLE | $0.00 | |||
| 36 | M1D536 | SCREW 8-32 (25) | $0.00 | |||
| 37 | M9D45 | FLOURESCENT LAMP | $0.00 | |||
| 38 | M1D129 | SCREW (25) | $0.00 | |||
| 38 | M5D116 | LAMP HOLDER | $0.00 | |||
| 39 | M1D533 | SCREW (25) | $0.00 | |||
| 39 | M52D161 | PANEL | $0.00 | |||
| 40 | M2D312 | SPACER | $0.00 | |||
| 41 | M1D485 | SCREW | $0.00 | |||
| 41 | M82D143 | NOT AVAILABLE | $0.00 | |||
| 42 | M65D196 | TOP CAP CONT PNL | $0.00 | |||
| 43 | M2D409 | POINTER | $0.00 | |||
| 44 | M22D28 | CONTROLLER | $0.00 | |||
| 44 | M1D842 | SCREW (25) | $0.00 | |||
| 45 | M8D123 | SPEED CLIP | $0.00 | |||
| 45 | M3D36 | SURGE RESISTOR | $0.00 | |||
| 45 | M1D533 | SCREW (25) | $0.00 | |||
| 46 | M1D841 | SCREW (25) | $0.00 | |||
| 46 | M8D79 | BALLAST | $0.00 | |||
| 47 | M1D321 | No.6 PAN HD MACHINE SCREW | $0.00 | |||
| 47 | M30D67 | M/W TIMER KIT | $0.00 | |||
| 48 | M29D15 | RANGE TIMER | $0.00 | |||
| 48 | M1D533 | SCREW (25) | $0.00 | |||
| 49 | M2D419 | INSULATOR | $0.00 | |||
| 50 | M6D158 | BUTTON SWITC | $0.00 | |||
| 51 | M2D314 | RETAINER, BUTTON | $0.00 | |||
| 51 | M1D566 | PUSH ON RETAINER (25) | $0.00 |
*The price can change whitout warning
